Summary of Contents for BPC 5000VA

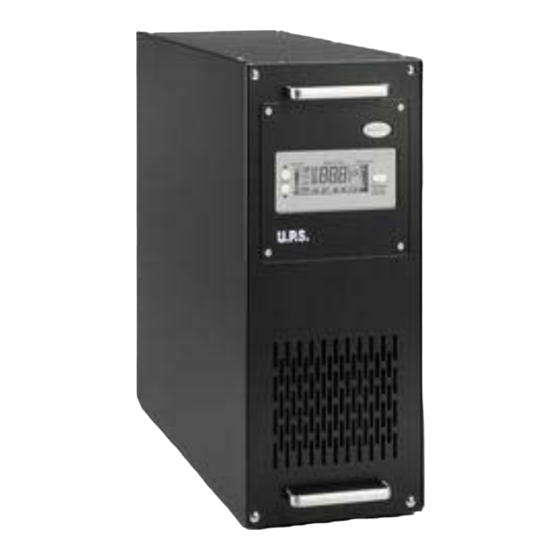

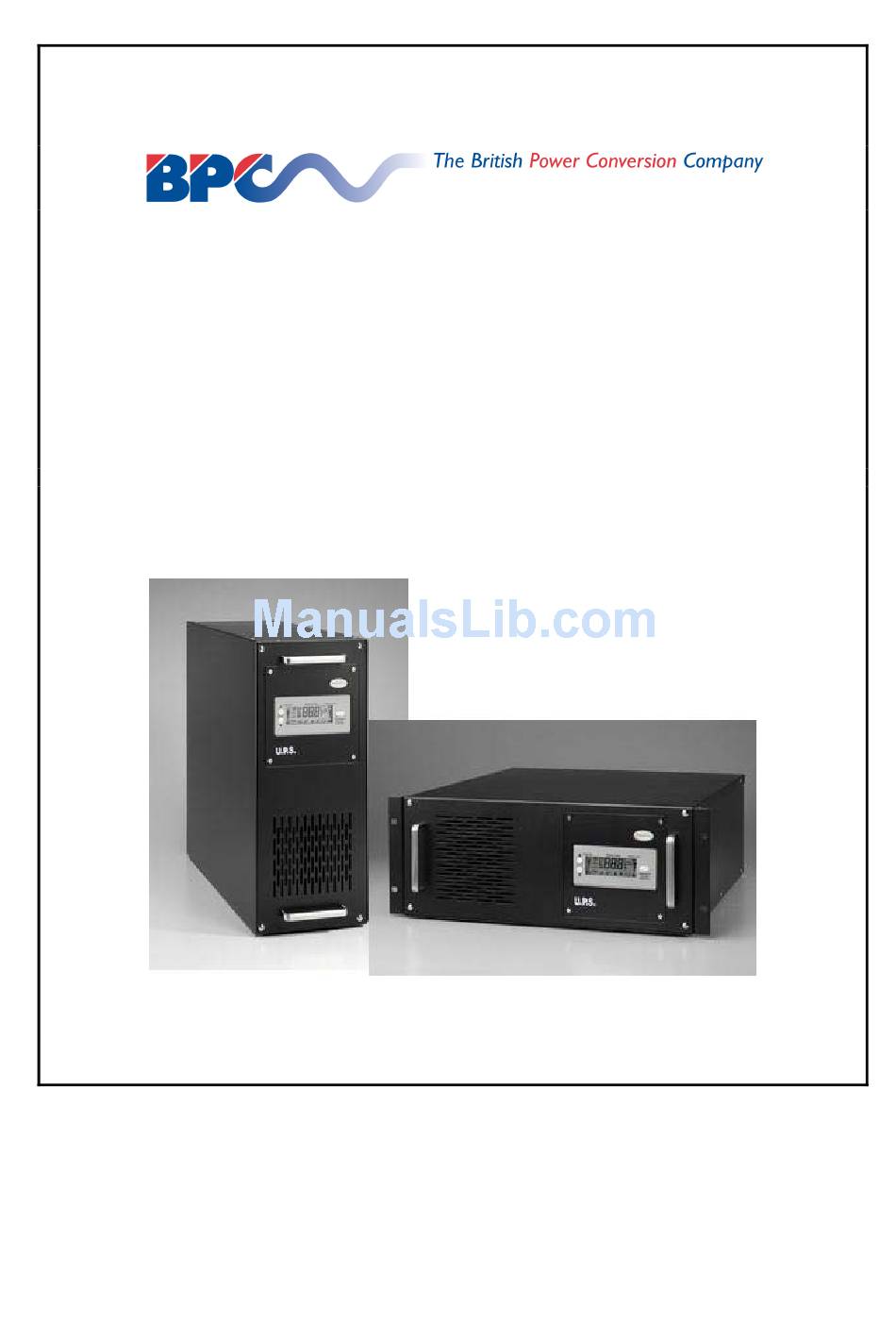

- Page 1 PowerPrem Line-interactive UPS User’s Manual 5000VA 5K-02...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS When replacing the batteries, use the same number and the same type of batteries. ● Do not dispose of batteries in a fire; the battery may explode. ● Do not open or mutilate the battery or batteries, released electrolyte is harmful to the skin ●...
- Page 3 CAUTION: ● The UPS connection instructions and operation described in the manual must be followed in the indicated order. ● UPS must be connected to a near by wall outlet that is easily accessible. The UPS can be disconnected from the AC-power source by removing the power cord. ●...
- Page 4 Special Symbols The following are examples of symbols used on the UPS to alert you the important information. RISK OF ELECTRIC SHOCK - Indicates that a risk of electric shock is present and the associated warning should be observed CAUTION; REFER TO OPERATOR’S MANUAL - Refer to your operator’s manual for additional information, such as important operating and maintenance.
-
Page 5: Table Of Contents
TABLE of CONTENTS Over view and Features ----------------------------------------- Page 6 Page 7 Presentation -------------------------------------------------------- LCD display models Rear Panels ---------------------------------------------------------- Page 8 Installation ----------------------------------------------------------- Page 9 Operation ------------------------------------------------------------- Page 12 Indication and Control ------------------------------------------- Page 15 LCD Display Control LCD Screen Description Page 16 Audible alarm -------------------------------------------------------- Auto self-test Function -------------------------------------------- Page 17... -
Page 6: Over View And Features
1. OVER VIEW AND FEATURES The series UPS is an advanced Line-Interactive Uninterruptible Power System which produces pure sine wave power to your equipment; unlike the traditional off-line UPS, the series provides very short transference when blackouts happen, and zero transference from AC mode to battery mode and vice versa. -
Page 7: Presentation
2. PRESENTATION 2.1 Front Panel Tower Type Rack Mount Type LCD Display Main control button. LCD screen. Selection button for mode & value. -
Page 8: Rear Panels
2.2 Rear Panels Inlet (screw type). Outlets (3 choices) B-1. IEC 5 sockets x 2 + German type (Schuko) x 1, or B-2. IEC 5 sockets x 3, or B-3. Universal sockets 2 x 2 + screw terminal x 1 Re-settable fuses for output. -
Page 9: Installation
3. INSTALLATION 3.1 Inspecting the packing carton for damage that may have occurred while in transit. Immediately notify the carrier and place of purchase if any damage is found. Retain the package for future use. 3.2 The packing of the UPS is separated into 3 units, main unit weight 39kgs, & 2 units of battery set weight 18kgs of each. - Page 10 3.6 Battery Installation / Replacement 3.6.1 This is a hot-swappable designed UPS, which means that when you are replacing battery set, the UPS doesn’t need to be turned off. 3.6.2 To install or replace batteries, please screw off the 4 screws of front panel, disconnect the cable connection to the LCD display module;...
- Page 11 3.7 Please use power cord in 3-wire grounding type with rating, at least, for full load of input current as stated in item 8, Specifications. 3.8 Connecting your equipment to the UPS. To ensure that your computer equipment will be protected during a utility failure, it is important to make sure that the maximum power needed by the equipment is not over the rated capacity of the UPS.
-
Page 12: Operation
4. OPERATION 4.1 Once it’s connected with normal city power, the UPS will charge the battery automatically, when UPS is off, the battery symbol and battery level will blink every second during charging. If AC auto turn-on function is enabled, the UPS will turn on automatically when city power is normal. If auto turn-on is disabled, please push the button for about one second on the front panel;... - Page 13 4.9 Green mode setting (by UPS wizard software or through LCD display) When “Green Power” function is enabled, the UPS will turn off the power within 60 seconds after blackout occurs with the power consumption lower than the pre-set level (adjustable from 1% to 14% of full load).
- Page 14 4.11.3 To change the UPS rated voltage When the voltage value is blinking, push any selection button for 1 second to change the rated voltage. Keep pushing the button until the required voltage blinking. Then, push two selection buttons at the same time for next setting, or leave the LCD blinking for 30 seconds to end the setting.
-
Page 15: Indication And Control
5. INDICATION AND CONTROL 5.1 LCD Display Control Main control button: Please refer to point 4 & 5 (4.1~4.7 & 5.3~5.4). 5.2 LCD screen Description Symbol Indication Description Over load The loading exceeds the rating of UPS. Load level The higher the loading, the more bars will illuminate. UPS is loaded When “Green Mode”... -
Page 16: Lcd Screen Description
60℃. automatically at 60℃. Fan is in “High This symbol is used mainly for long run series and the 5000VA model. speed” The symbol will display whenever the cooling fan is running (or high speed), and will disappear when it is off (or low speed). -
Page 17: Auto Self-Test Function
Basic Indication Table: STATUS ALARM Idle mode Utility Good No Beep Utility outage No Beep Timer on, No Beep (refer to Item 5.5) Normal No Beep Normal / Back-up (Utility good) mode Back-up (No load) One beep every 4 sec (alarm can be silenced). Back-up (Loaded) 2 beeps every 8 sec. -
Page 18: Communication Interface
6. COMMUNICATION INTERFACE The UPS provides two computer interfaces, smart software (RS-232) and USB (optional). The RS-232 also includes dry contact (DB-9, optional) for different monitoring application. The models with USB interface are applying the same control port for both USB & RS-232 so that the only interface can be used at the same time. -
Page 19: Trouble Shooting
7. TROUBLE SHOOTING Problem Possible Cause Action to Take UPS no reaction while AC is 1. Line cord plug is loose 1. Check the line cord plug connected 2. Fuse on rear panel blown 2. Replace fuse (Inside the drawer of inlet) 3. -
Page 20: Specifications
8. SPECIFICATIONS Smart Rack/Tower Convertible Model 5000VA / 3500W General Features: ● Smart backup time estimation ● Adjustable voltage-transfer points & charging voltage. ● Generator compatible ● Automatic restart of load after UPS shutdown ● Smart AVR function (Two buck / boost modes) ●... - Page 21 Voltage Range -20% ~ +24% for selected nominal voltage. -29% ~ +33% adjustable by using the remote set-up software AVR Range Enhanced Buck: +15% of selected nominal voltage (2 Bucks, 2 Boosts) Buck mode: +5% of selected nominal voltage Boost mode: -5% of selected nominal voltage Enhanced Boost: -12.5% of selected nominal voltage Surge Protection 760 Joules...
- Page 22 EBT (Estimation of Support for LCD display Backup Time) system Green mode function 1% to 14% of full load (adjustable with the remote set-up software) (Auto-shutdown during The default setting is OFF. blackout) Environmental and Safety Up to 1500 meters：0℃ to 40℃ (32℉ to 104℉) Operating Temp.
