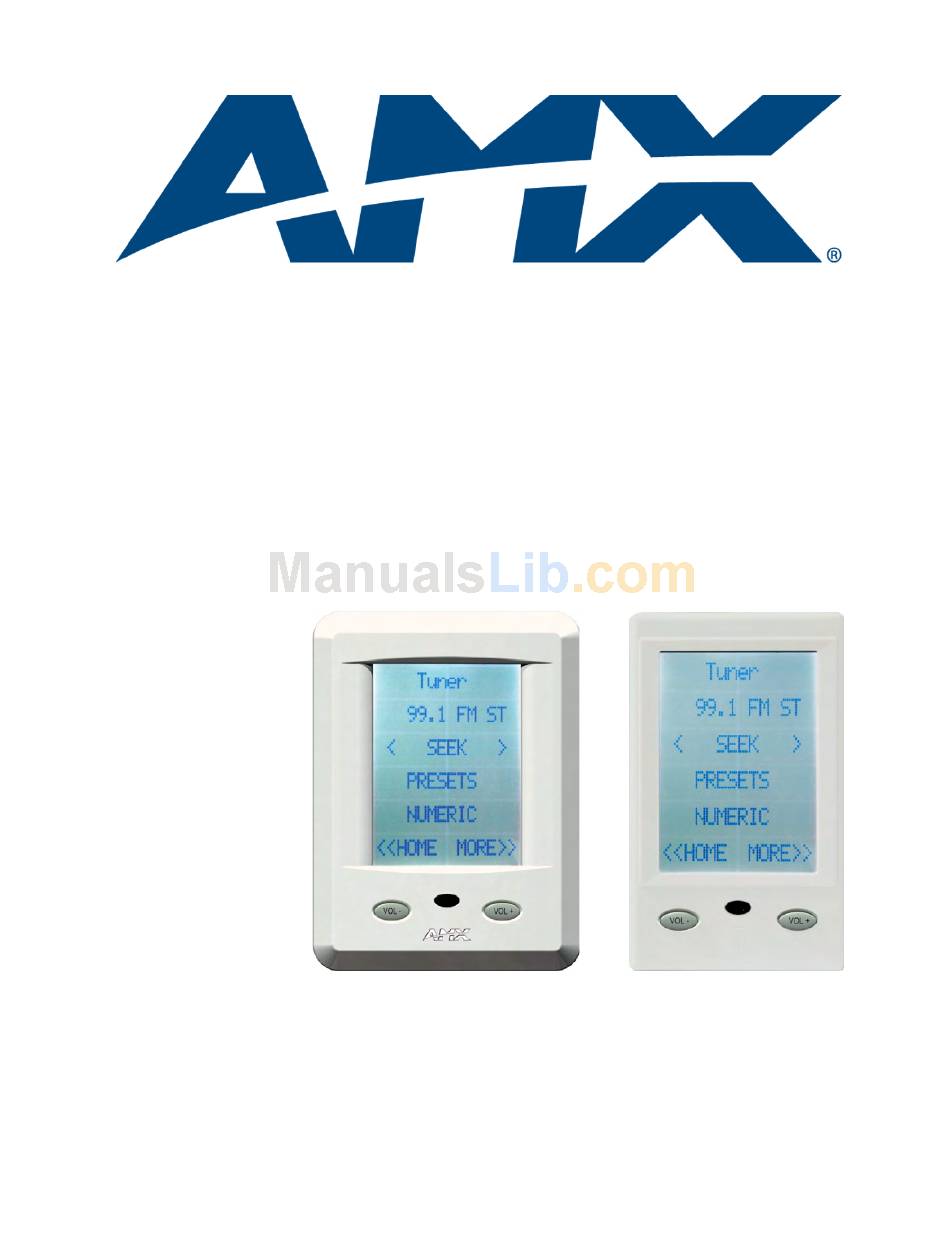

Operation/Reference Guide
Audio Controller LCD Keypads
Flush-Mount LCD Keypad (DAS-KP-LCD-G)
Surface-Mount LCD Keypad (DAS-KP-LCDS-W)
D i s t r i b u t e d A u d i o
L a s t R e v i s e d : 3 / 0 3 / 2 0 0 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAS-KP-LCD-G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AMX DAS-KP-LCD-G

Summary of Contents for AMX DAS-KP-LCD-G

  • Page 1 Operation/Reference Guide Audio Controller LCD Keypads Flush-Mount LCD Keypad (DAS-KP-LCD-G) Surface-Mount LCD Keypad (DAS-KP-LCDS-W) D i s t r i b u t e d A u d i o L a s t R e v i s e d : 3 / 0 3 / 2 0 0 8...
  • Page 2 AMX is not responsible for products returned without a valid RMA number. AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages.

  • Page 3: Table Of Contents

    Table of Contents Matrix Audio Controller LCD Keypads ...1 Overview ... 1 DAS-KP-LCD-G Flush Mount LCD Keypad (FG1120-0X) ... 1 DAS-KP-LCDS-W Surface Mount LCD Keypad (FG1120-12) ... 1 Audio Controller Keypads - Features By Model ... 2 Installing the Surface-Mount LCD Keypad (DAS-KP-LCDS-W) ...3 Overview ...
  • Page 4 Table of Contents Matrix Audio Controller LCD Keypads...

  • Page 5: Matrix Audio Controller Lcd Keypads

    Matrix Audio Controller LCD Keypads DAS-KP-LCD-G Flush Mount LCD Keypad (FG1120-0X) The DAS-KP-LCD-G Flush Mount LCD Keypad combines the control functionality of the DAS-KP-4e/ KP-6e and DAS-KP-NUM keypads, with the added benefit of visual feedback. The DAS-KP-LCD-G is available in the following colors:...

  • Page 6: Audio Controller Keypads - Features By Model

    The following table indicates the features supported by each of the Matrix Audio Controller Keypads: Audio Controller Keypads - Features By Model Model Name LCD Keypads: • DAS-KP-LCD-G (FG1120-0X) • DAS-KP-LCDS-W (FG1120-12) Surface Mount LCD Keypad Pushbutton Keypads: • DAS-KP-4e-G (FG1120-3X) •...

  • Page 7: Installing The Surface-Mount Lcd Keypad (Das-Kp-Lcds-W)

    Installing the Surface-Mount LCD Keypad (DAS-KP-LCDS-W) Overview The DAS-KP-LCDS-W Surface Mount LCD Keypad (FIG. 1) is shipped completely assembled. To correctly install the DAS-KP-LCDS-W (retrofit) in the wall, you must remove the Front Bezel and the LCD screen. Please follow these instructions carefully to ensure correct installation and operation. FIG.
  • Page 8 Installing the Surface-Mount LCD Keypad (DAS-KP-LCDS-W) 3. Plug the speaker-wire connectors to the “To Speakers” connector and plug the Zone wires into the “To Controller” connector on the back of the Keypad Connector Board. Ensure the wiring scheme is correct and that the connector at the Controller is plugged into the Zone output.

  • Page 9: Installing The Flush-Mount Lcd Keypad (Das-Kp-Lcd-G)

    1. Using the cut-out template provided, center the template on the desired location on the wall and mark the hole to be cut. 2. Connect the appropriate speaker & controller cables to the back of the DAS-KP-LCD-G. The speaker connector is located on the right-hand side The controller connector is located on the left-hand side.
  • Page 10 The second volume button may need to be pressed in order to fit through the appropriate volume hole. 7. POWER ON the controller (and Expansion Controllers, if applicable). The DAS-KP-LCD-G will start the initialization process immediately. When the System is first powered ON, it could take up to 4 minutes to load all the information to the LCD keypads.

  • Page 11: Customizing Lcd Keypad Labels

    Customizing LCD Keypad Labels Overview Customization of labels displayed on the LCD keypad is done via the Setup menu on the front of the Controller. Both Source labels and Source Control labels can be customized (FIG. 1). FIG. 1 Source Labels and Source Control labels Customizing SOURCE Labels 1.

  • Page 12: Customizing Source Command Labels

    Customizing LCD Keypad Labels To delete a letter, use the << BACK button. Press the CENTER button to save the label. Source Names are limited to 6 characters. Customizing Source Command Labels 1. Enter the Setup menu from the front of the Matrix Controller, by pressing the SELECT button. 2.

  • Page 13: Using The Lcd Keypads

    Using the LCD Keypads Basic Functionality (Mi Series & Delta) HOME Screen FIG. 1 Basic Functionality - Home, Source MAIN and Source MORE screens Turn On a Source (Single Room) Touch the desired source. The LCD screen will switch to the Source MAIN screen and the source will begin playing.

  • Page 14: Cable / Satellite

    Using the LCD Keypads Cable / Satellite To enter a specific channel, touch "NUMERIC" and enter the Channel # plus ENTER. Presets (Setting & Recalling) Source MORE Screen Set Preset Screen Recall Preset Screen FIG. 2 Basic Functionality - Setting and Recalling Presets Setting a Preset Presets can only be set from the Source MORE screen.

  • Page 15: Advanced Functionality (Mi Series & Delta)

    Advanced Functionality (Mi Series & DELTA) Advanced functions are accessed by simultaneously pressing & holding the Vol - / Vol+ buttons for 3 seconds. FIG. 3 shows the Advanced Functionality screen for KP-LCD Keypads. FIG. 3 KP-LCD Advanced Functionality screen Advanced Functionilty is largely reserved for Mi/Tango Controllers.

  • Page 16: Setting/Clearing The Alarm Clock

    Using the LCD Keypads To adjust the Group Volume, Touch Vol - / Vol+ while on the Group screen. To adjust the Volume for an individual room, exit the Group screen, and touch Vol - / Vol+ from the keypad in each room. To clear a Group, access the Group Room screen and touch "Clear Group".

  • Page 17: Tone Control Settings (Bass/Treble/Balance/Srs)

    Tone Control Settings (Bass/Treble/Balance/SRS) Tone Control Screen FIG. 7 Tone Control Settings SRS/WOW is a registered trademark of SRS labs, Inc. Bass/Treble/Speaker Balance & SRS and selecting "TONE CONTROL". SRS is supported only on Mi Series Audio Controllers. To adjust Bass touch BASS "+" or "-". To adjust Treble touch TREBLE "+"...

  • Page 18: Backlight Settings

    Using the LCD Keypads Backlight Settings FIG. 8 Backlight Settings The Intensity and Mode can be adjusted for the LCD keypad by accessing the Advanced screen and selecting "BACKLIGHT". To adjust Intensity, touch the % to increase/decrease the brightness of the screen (range = 5% - 95%).
  • Page 19 Using the LCD Keypads Privacy Mode - More screen Privacy Mode FIG. 10 Privacy Mode - More screen / Privacy Mode <<BACK will return you to the Setup-Main screen (FIG. 3). 3. Selecting OK on the Privacy Mode-More screen will set the room to Privacy Mode: no pages will be heard in this room 4.
  • Page 20 Using the LCD Keypads Matrix Audio Controller LCD Keypads...
  • Page 21 Using the LCD Keypads KP-LCD Audio Controller Keypads...
  • Page 22 It’s Your World - Take Control™ 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com...
