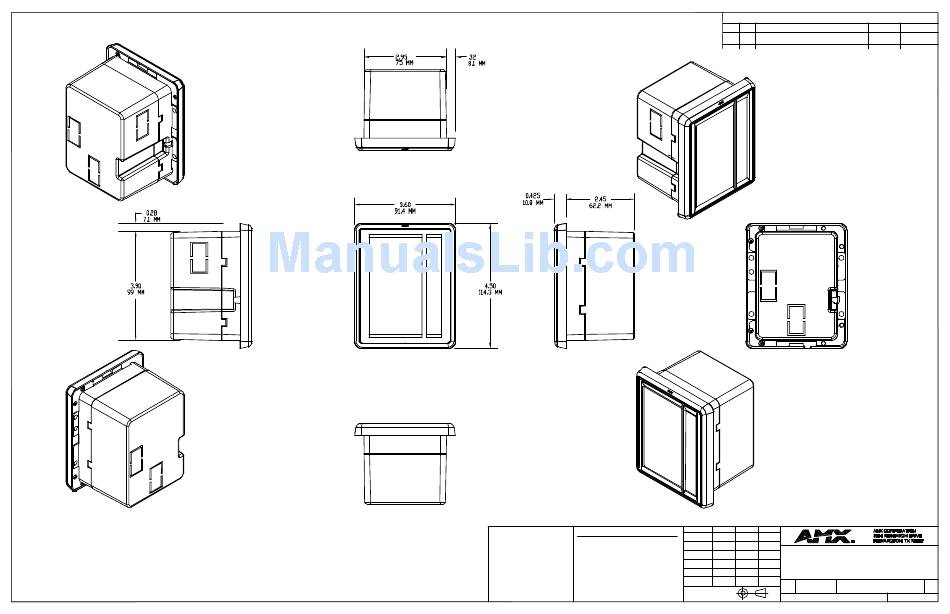

AMX DMS Pinnacle Dimensional Drawing

NOTICE: This drawing is the UNLESS OTHERWISE SPECIFIED:
property of AMX Corporation.
TOLERANCE ON DECIMAL DIMENSIONS: XX = .010
All information contained herein
XXX = .005
that is not generally known
TOLERANCE ON HOLE DIAMETERS:
UNDER .250 ú = +/- .005
shall be confidential except
.250 TO .500 = +.006 -.005
to the extent the information
OVER .500 = +.008 -.005
has been previously established.
FRACTIONAL DIMENSIONS INCLUDING HOLES: +/- 1/64
ANGLES: +/- 1.0°
This drawing may not be copied,
SURFACE FLATNESS .003 TIR PER LINEAR INCH.
reproduced, or used as the basis
ALL DIMENSIONS IN INCHES.
for manufacture or sale without
DO NOT SCALE THIS DRAWING.
written permission.
REVISIONS
REV ECN DESCRIPTION
7591 RELEASE TO MANUFACTURING
A
REL DATE REL APPR REV APPR
DRAWN 07-25-05 JSV
ENGR SERV
PICTORIAL
ENGINEER
MIO MODERO DMS PINNACLE
PROD ENGR
MATL SUP
SIZE SCALE: DWG. NO.
QUALITY
FULL 95-2408-02
D
THIRD ANGLE
PROJECTION
95-2408-02
DATE APPROVED
REV.
A
SHEET 1 OF 1
