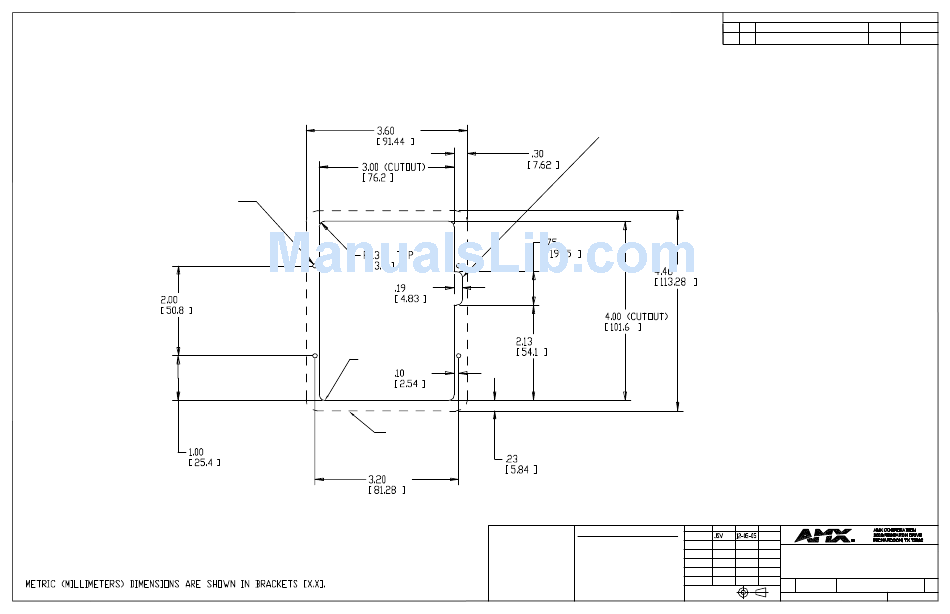

AMX DMS Dimensional Drawing

THESE 4 HOLES ARE ONLY REQUIRED
WHEN MOUNTING UNIT TO A SOLID
SURFACE (PODIUM, DESK, ETC.).
SECURE UNIT WITH #4 SCREWS.
CUTOUT
BEZEL OUTLINE
NOTICE: This drawing is the
property of AMX Corporation.
All information contained herein
that is not generally known
shall be confidential except
to the extent the information
has been previously established.
This drawing may not be copied,
reproduced, or used as the basis
for manufacture or sale without
written permission.
REV ECN
7591
A
THIS NOTCH IS ONLY NEEDED
IF UNIT IS INSTALLED USING
DRYWALL EXPANSIONS CLIPS
(2 PROVIDED)
NOTICE
THIS CUTOUT WILL NOT
ACCOMMODATE THE
CONDUIT WALLBOX. REFER
TO THE MOUNTING SPECIFICATION SP2408-02
FOR FOR SPECIFIC
MOUNTING DIMENSIONS AND
INFORMATION.
REL APPR REL DATE
UNLESS OTHERWISE SPECIFIED:
DRAWN
TOLERANCE ON DECIMAL DIMENSIONS: XX = .010
XXX = .005 ENGR SERV
TOLERANCE ON HOLE DIAMETERS:
ENGINEER
UNDER .250 ú = +/- .005
.250 TO .500 = +.006 -.005
PROD ENGR
OVER .500 = +.008 -.005
FRACTIONAL DIMENSIONS INCLUDING HOLES: +/- 1/64
MATL SUP
ANGLES: +/- 1.0°
SURFACE FLATNESS .003 TIR PER LINEAR INCH.
QUALITY
ALL DIMENSIONS IN INCHES.
THIRD ANGLE
DO NOT SCALE THIS DRAWING.
PROJECTION
REVISIONS
DESCRIPTION DATE APPROVED
RELEASE TO MANUFACTURING
REV APPR
MOUNTING / MILLWORK SPECIFICATION
MIO MODERO DMS & PINNACLE
SIZE SCALE: DWG. NO. REV.
FULL SP2408-01
D
A
SP2408-01 SHEET 1 OF 2
