Overview
Used in conjunction with the DAS-MET-6SRC Metreau keypad, the
DAS-MET-NUM Metreau numeric keypad
access, setting & recalling presets, and access to advanced functionality such as
grouping, Setting Favorites, Alarm, and Keypad lockout functionality. (FIG. 1).
The DAS-MET-NUM Metreau numeric keypad connects to the main
DAS-MET-6SRC keypad via a 14-pin connector (FIG. 2).
12 pre-printed pushbuttons
ENTER button
(with LED to
provide feedback)

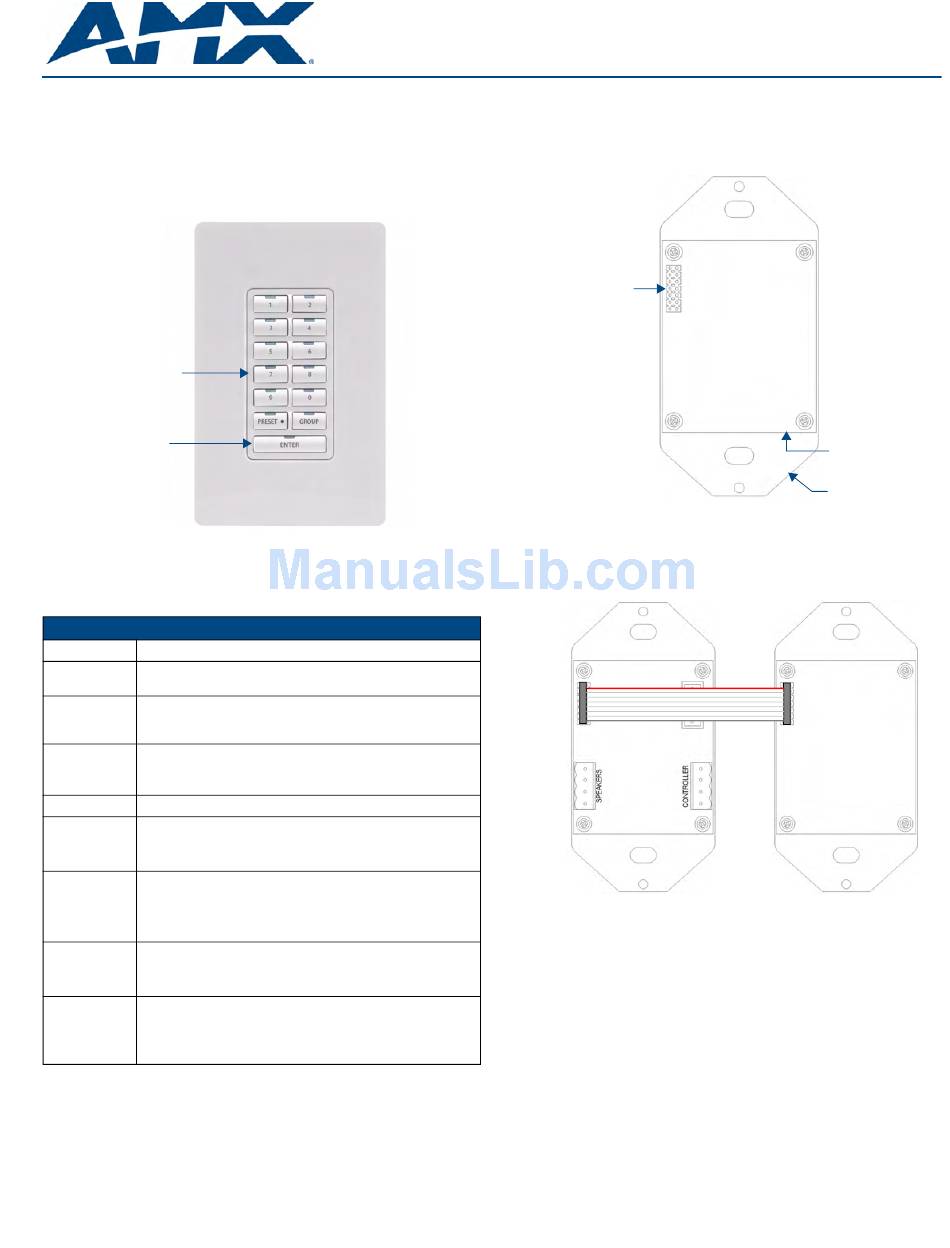

FIG. 1
DAS-MET-NUM Metreau Numeric Audio Keypad
The DAS-MET-NUM is a SWT keypad, suitable for use in Matrix Distributed
Audio Systems.
Specifications
DAS-MET-NUM Specifications
Power:
12 VDC, 125 mA
Front Panel
Pushbuttons - 13 tactile pushbuttons.
Components:
Rear Panel
Wiring connection - One 14-pin connector that provides
Components:
connection to the main 6 Source Metreau Keypad
(DAS-MET-6SRC).
Dimensions
• Keypad and Mounting Plate: 4.055" x 1.772" x 0.818"
(HWD):
(103mm x 45mm x 207mm)
• Mounts into standard decora-style wall plates.
Weight:
2.4 oz. (68.04 g)
Operating
• Operating Temperature: 32° - 104° F (0°- 40° C).
Environment:
• Relative Humidity: 5% - 85%, non-condensing.
• Intended for indoor use only.
Certifications:
• FCC Class B
• CE
• IEC60950
• RoHS
Colors:
• White (FG1122-02-WH)
• Black (FG1122-02-BL)
• Light Almond (FG1122-02-LA)
Optional
• Single Button Kit (FG5794-10)
Accessories:
• Double Button Kit (FG5794-11)
• Lutron Cairo Wallplates (available in a variety of sizes and
colors)
DAS-MET-NUM
provides direct numeric
(FG1122-02)
Metreau™ Numeric Audio Keypad
Installation
Note: Before touching the device, discharge the static electricity from your body
by touching a grounded metal object.
FIG. 2 shows the basic rear components of the DAS-MET-NUM keypads:
14-pin connector
(from DAS-MET-6SRC)
FIG. 2
DAS-MET-NUM - Rear Components
Wiring
The DAS-MET-NUM Metreau numeric keypad connects to the main
DAS-MET-6SRC keypad via a 14-pin connector, as indicated in FIG. 3:
Pin #1
14-pin connector
DAS-MET-6SRC
FIG. 3
DAS-MET-NUM connected to main DAS-MET-6SRC keypad
The red line on the cable indicates Pin #1.
The cable cannot be twisted, it must be straight across (pin1 to pin1).
Installation Guide
Circuit Board
Mounting Plate
Pin #1
14-pin connector
DAS-MET-NUM
