AMX Metreau 6-Source Audio Keypad DAS-MET-6SRC Installation Manual

Overview
The DAS-MET-6SRC Metreau 6-Source Audio Keypad (FG1122-01) features source
control, a navigation wheel that adjusts volume and provides up, down, left, right and
center button options, as well as an LED bar for visual volume feedback (FIG. 1).
6 pre-printed pushbuttons
(with blue LED indicators)
IR Sensor located here
Volume Level
Indicator LED
Navigation Wheel
& pushbuttons

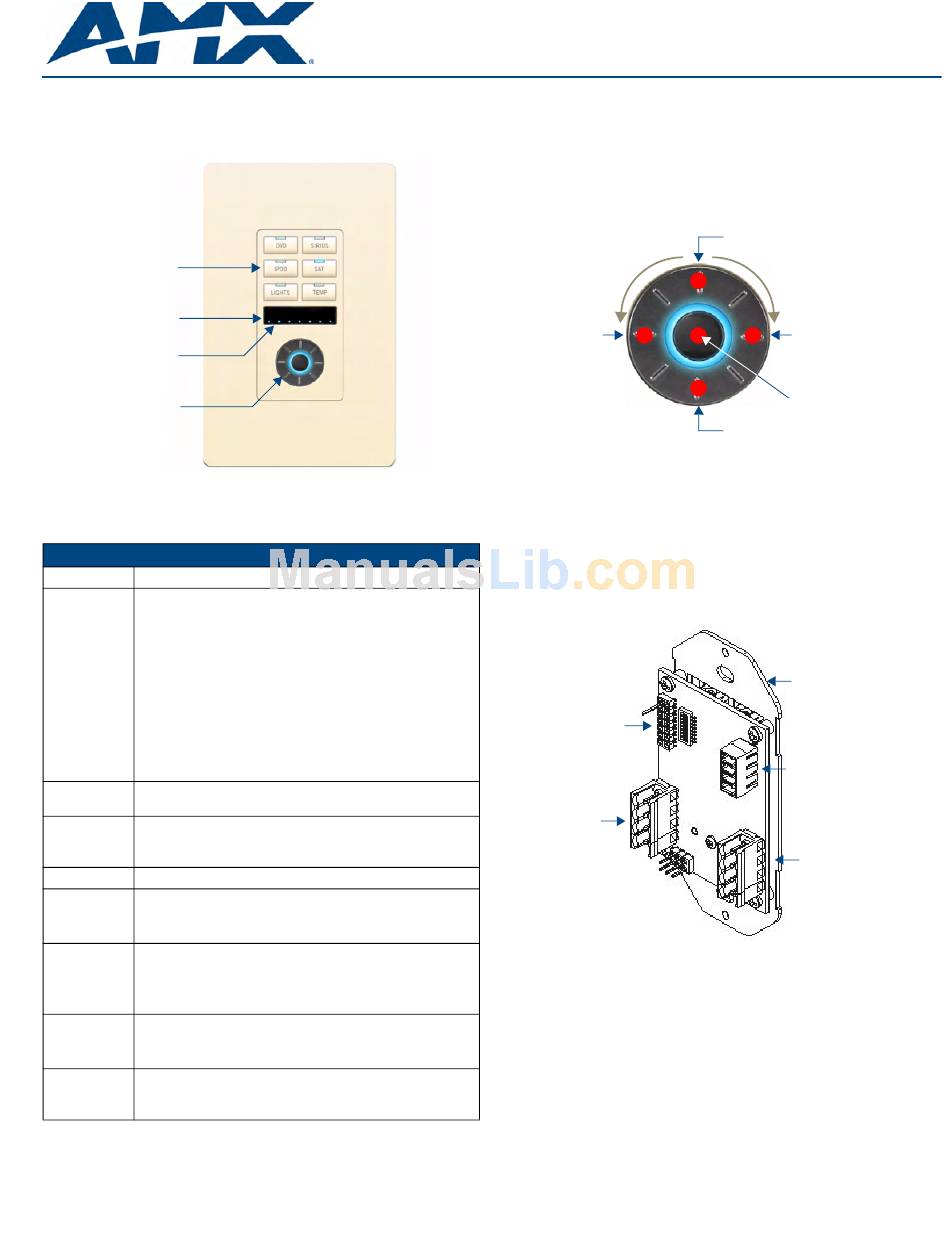

FIG. 1
DAS-MET-6SRC Metreau 6-Source Audio Keypad
The DAS-MET-6SRC is a SWT keypad, suitable for use in Matrix Distributed Audio
Systems.

Specifications

DAS-MET-6SRC Specifications
Power: 12 VDC, 125 mA
Front Panel • Pushbuttons - 6 tactile pushbuttons with blue LED indicators
Components: that illuminate when the source is selected, and stay lit until the
source is turned off. These pre-printed buttons are field-
replaceable.
• IR Sensor - Works specifically with the MIO-R1-AUDIO remote
controller (38 kHz only).
• LED Levels Indicator - set of 7 blue LEDs provide volume level
feedback.
• Navigation Wheel - consists of 5 pushbuttons: 4 directional
pushbuttons (Up, Down, Right, Left), 1 center pushbutton, and
bi-directional rotating wheel for volume adjustments.
Note that the center pushbutton is dual-purpose: a push/release
provides one function, while a press/hold provides another.
Rear Panel Wiring connection - Two 4-pin SWT connectors that provide con-
Components: nection from the Matrix Audio Controller, and to the speakers.
Dimensions • Keypad and Mounting Plate: 4.055" x 1.772" x 0.997"
(HWD): (103mm x 45mm x 25.32mm)
• Mounts into standard decora-style wall plates.
Weight: 2.4 oz. (68.04 g)
Operating • Operating Temperature: 32° - 104° F (0°- 40° C).
Environment:
• Relative Humidity: 5% - 85%, non-condensing.
• Intended for indoor use only.
Certifications: • FCC Class B
• CE
• IEC60950
• RoHS
Colors: • White (FG1122-01-WH)
• Black (FG1122-01-BL)
• Light Almond (FG1122-01-LA)
Optional • Single Button Kit (FG5794-10)
Accessories:
• Lutron Cairo Wallplates (available in a variety of sizes and
colors)
DAS-MET-6SRC
Navigation Wheel - Pushbuttons
The top, bottom, left and right points on the Navigation Wheel are used for source
control and can be programmed to provide any source functionality by learning the
applicable IR code.
The center pushbutton is dual-purpose: a push/release on this button provides one
function, while a press/hold provides another. The center pushbutton are also used for
source control and can be programmed to provide any source functionality (again, by
learning the applicable IR code).
FIG. 2 shows the button layout of the Navigation Wheel:
Rotate wheel
counter-clockwise to
adjust Volume Down
Left center
pushbutton =
Nav LEFT
FIG. 2
Navigation Wheel - button layout
Navigation Wheel
The Navigation Wheel itself can be rotated bi-directionally, and provides volume level
control.
• Clockwise rotation increases the volume level, counter-clockwise rotation
decreases the volume level.
• The range for volume is 0 - 70.
Installation
Note: Before touching the device, discharge the static electricity from your body by
touching a grounded metal object.
FIG. 3 shows the basic rear components of the DAS-MET-6SRC keypads:
14-pin connector
(To DAS-MET-NUM)
SWT connector
(To speakers)
FIG. 3
DAS-MET-6SRC - Rear Components
Wiring
SWT wiring utilizes four-color "snap connectors" to secure the wires (no screws). You
will need a wire stripper to prepare and connect the captive wires.
1. Strip 0.25 inch (6.35 mm) of wire insulation off all wires.
2. Insert each wire into the appropriate opening on the connector according to the
wiring diagrams and connector types described in this section.
SWT Data and Power Connections
SWT wiring involves connecting the Mi-Series Controller, Metreau keypads, and
Speakers.
The Matrix Audio Controller and Metreau keypads are cabled using standard
4-conductor speaker cable originating at the Controller, passing through the keypad,
and terminating at the speaker location.
AMX recommends using a bundled 4-conductor, 16-gauge stranded copper wire in a
single continuous run.
Installation Guide
Metreau™ 6-Source Audio Keypad
Top center pushbutton = Nav UP
Rotate wheel clockwise
to adjust Volume Up
Right center
pushbutton =
Nav RIGHT
Center pushbutton =
Nav Center
Bottom center pushbutton = Nav DOWN
Mounting plate
not used
SWT connector
(from Matrix Controller)
