Step 6 – Tighten the Strain Relief Fitting & Close
the Terminal Cover
Tighten the Two Horizontal Screws to Slide and Tighten the
Strain Relief Fitting. Then Tighten the Two Set Screws into the
Backcan. (Shown with a single speaker cable)
Tightening onto Flexible or Hard Conduit – The supplied fitting
accommodates up to 3/8 inch (9.5mm) flexible conduit. Insert
the conduit into the strain relief fitting. Tighten the sliding
Strain Relief Fitting.
Step 7 – Insert the Speaker Into the Ceiling and
Tighten.

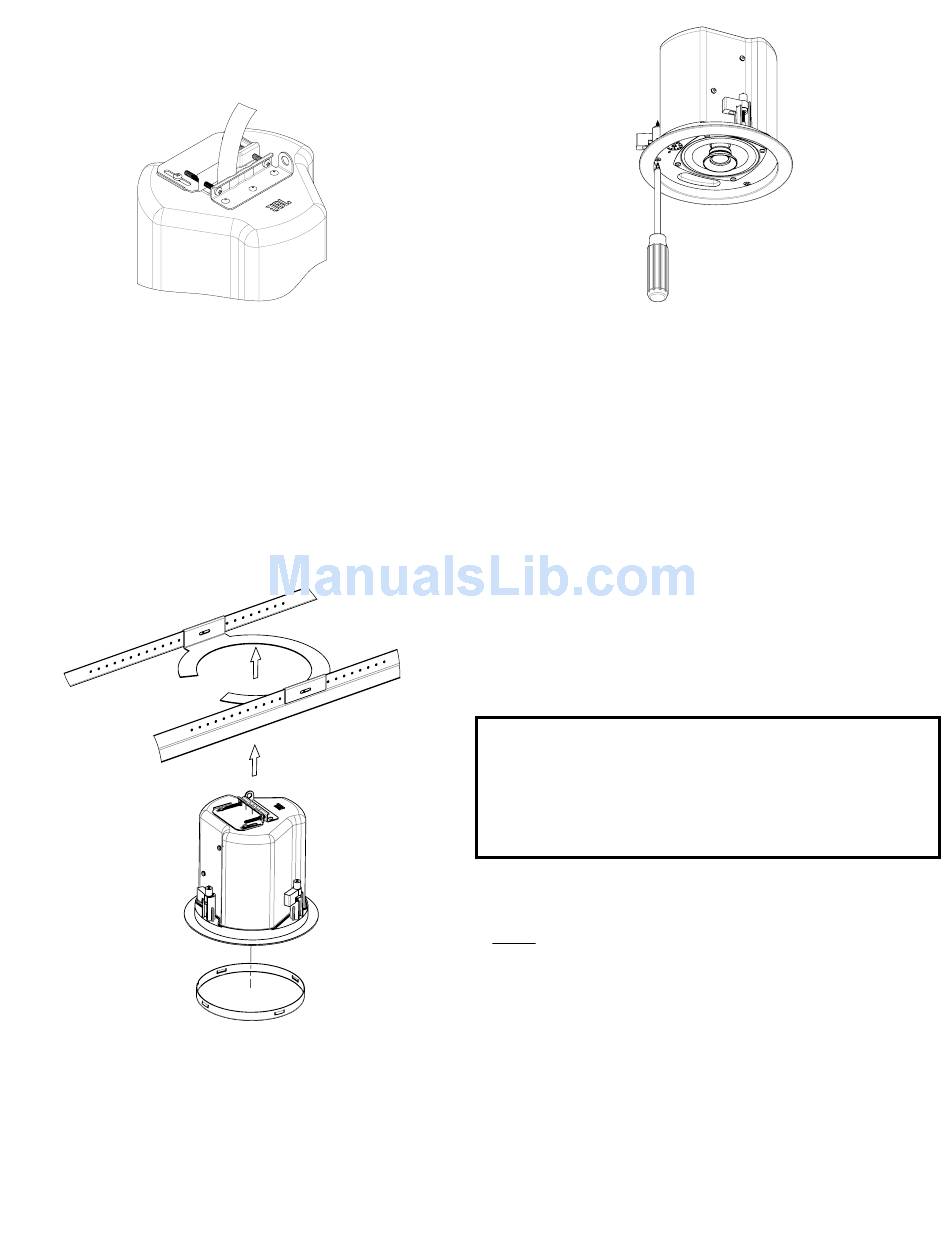

Inserting Speaker into Ceiling
(C-ring/tile-rail assembly is above the ceiling tile. Speaker
inserted through cutout in ceiling material. Diagram shown
without cable and ceiling tile for clarity)
Insert the speaker into the ceiling as far as it goes, until the front
baffle rim touches the ceiling.
Turn the attachment screws to tighten the mounting tabs, by
using the following directions:
Figure 13:
Figure 14:
Tightening Mounting Tabs
IMPORTANT -- For each attachment screw, FIRST turn ½ turn
COUNTER-CLOCKWISE to release the mounting tab from its
guide.
Then tighten the mounting tabs by turning the screw CLOCK-
WISE until tight. The first ¼ clockwise turn rotates the attach-
ment tabs outward and the remaining turns tighten the tabs
down onto the back of the ceiling surface. DO NOT OVER-
TIGHTEN.
A tab is provided on the back of each speaker for connection
to a independent secondary support point. Some construc-
tion codes require using this secondary support point, which
requires connecting a support line to a separate secure support
point. Consult construction codes in your region.
IMPORTANT -- Control Contractor ceiling speakers can gen-
erate substantial vibration . Using the seismic tab as a secondary
support point is highly recommended in case the ceiling tile
or structure breaks. In some areas, using the seismic tab as a
secondary support point is required by code.
Step 8 Adjust Tap Selector –
switch is located on the front baffle. Adjust the tap setting
before applying power to the speaker and before inserting the
grille. From the OFF position, turn the selector counter-clock-
wise to set to the 8Ω (low impedance) nominal setting (see
spec sheet for more precise impedance information) or turn the
selector clockwise to set to the various 70V and 100V distribut-
ed system tap settings.
6
Figure 15:
The tap selector rotary
