Table of Contents

Product Description .................................................... 2
Product Feature Identification ................................... 2
Installation Preparations ............................................. 3
Step-By-Step Installation and Wiring ....................... 3
Painting the Speaker .................................................... 7
Safety Agency Compliance ......................................... 7
Maintenance ................................................................. 8
Replacement Parts ....................................................... 8
Contacting JBL ............................................................. 8
Product Specifications ................................................. 8
Thank you for purchasing JBL Control Contractor ceiling
loudspeakers. Read through this manual to familiarize
yourself with the features, applications and precautions
before you use these products.
Product Descriptions
The JBL Control Contractor Control 10 Series ceiling
loudspeakers utilize innovative design and materials to
provide premium level performance from compact in-
ceiling speakers. Available in white or black (-BK).
CONTROL 12C/T - A 3" (75 mm) full-range driver to
provide high-fidelity full-range sound over an extremely
wide coverage area.
CONTROL 14C/T - A wide bandwidth ceiling speaker
containing a co-axially mounted 4" (100 mm) woofer and
¾" (19 mm) soft-dome tweeter.
CONTROL 16C/T - A wide bandwidth, high sensitivity,
extended bass ceiling speaker containing a co-axially
mounted 6.5" (165 mm) woofer and ¾" (19 mm) soft-
dome tweeter.

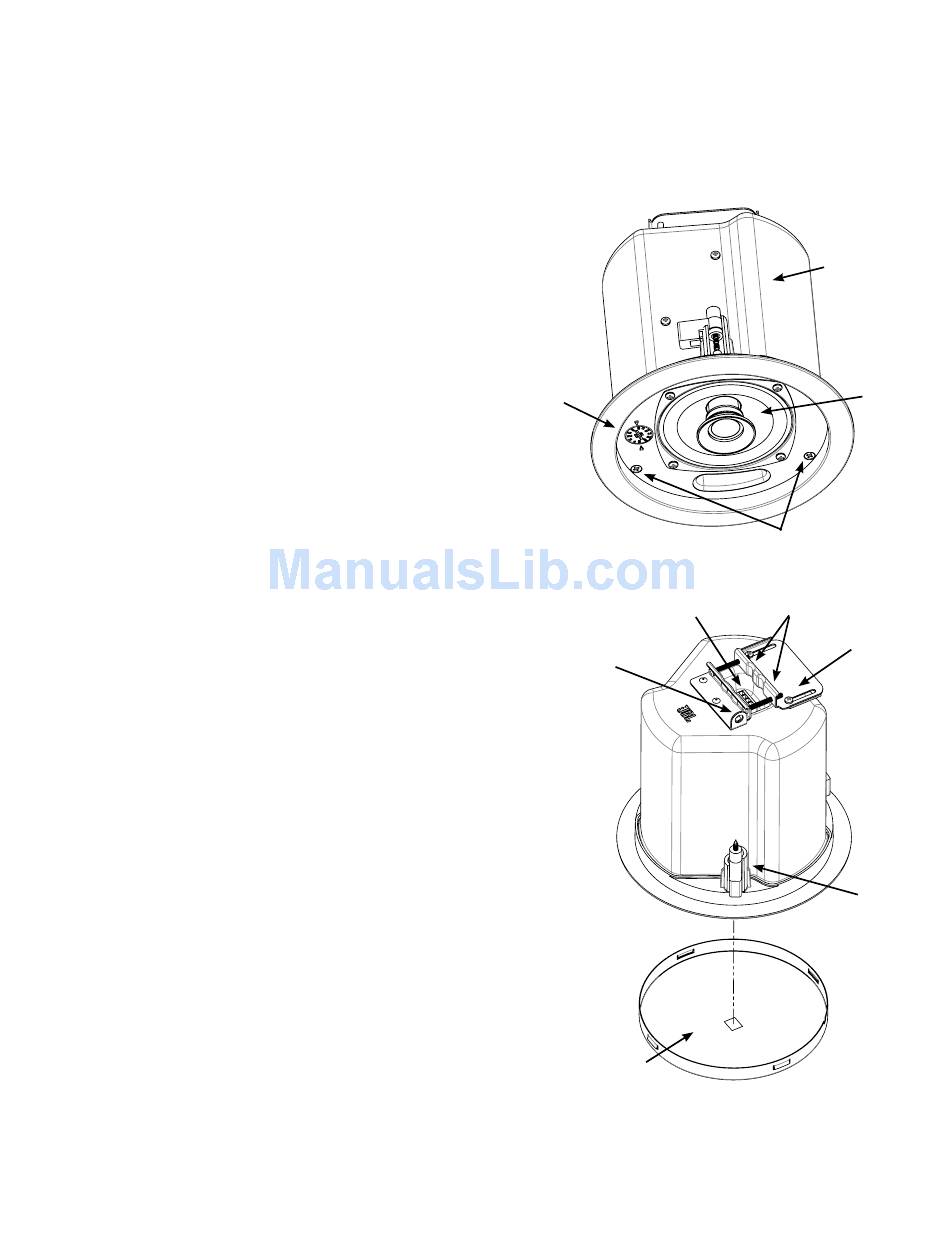

Product Feature Identification

Tap Selector for
70V/100V taps, 8Ω
direct and OFF
Removeable
Locking Input
Connector
Seismic Tab
(secondary
support point)
Perforated
Press-In Grille
2
(Control 14C/T Shown)
Zinc-Plated
Steel Backcan
Loudspeaker
Driver
Attachment
Screws
Strain Reliefs
(x2)
Terminal Cover
Plate
Rotating
Mounting Tabs
(dog-ears)
