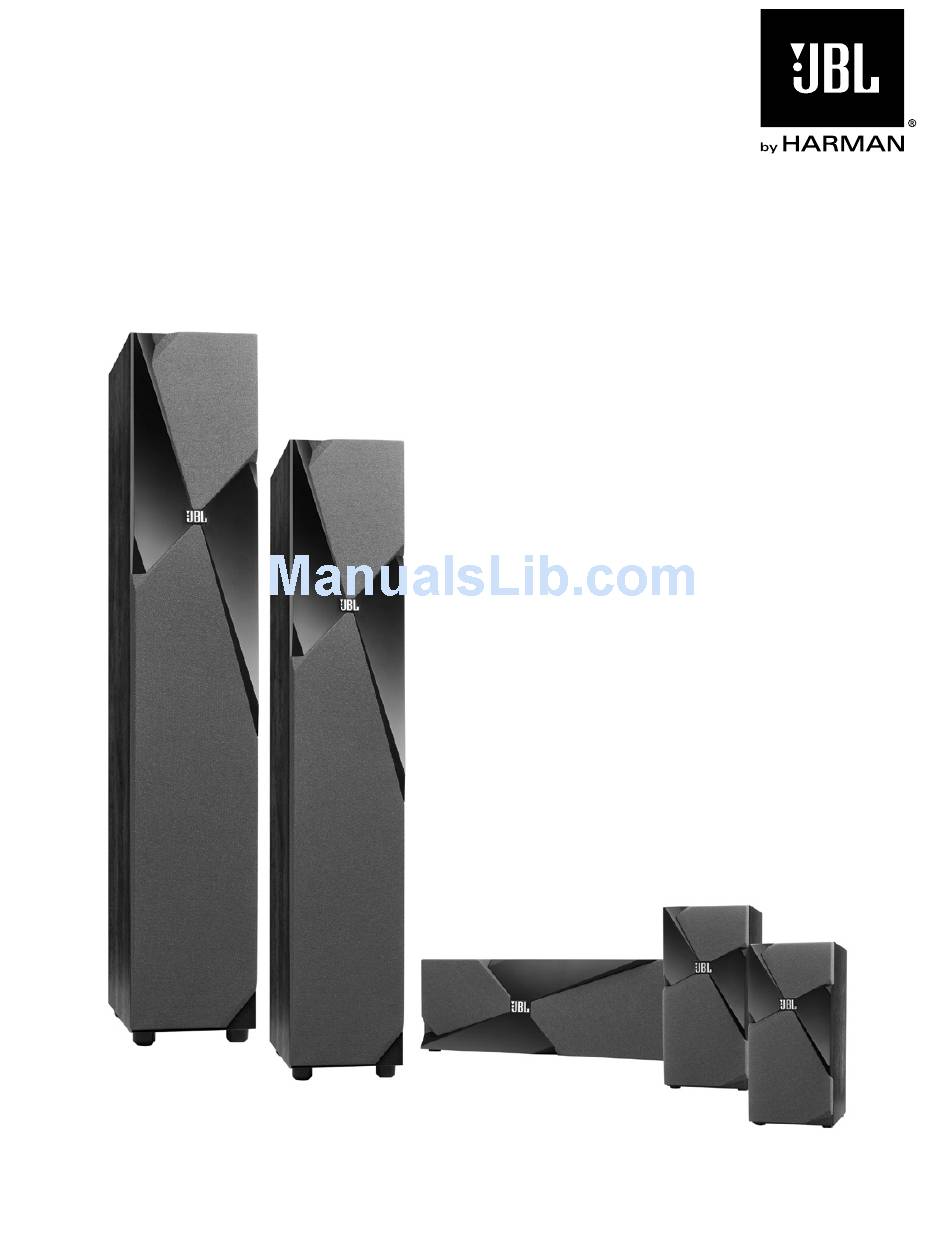

- Page 1 Studio 1 SerieS ® loudspeakers User GUide...
-
Page 2: Included Items
We’re confident that the JBL system you have chosen will provide every note of enjoyment you expect – and that when you think about purchasing additional audio equipment for your home, car or office, you will once again choose JBL products. - Page 3 For best performance, we recommend that you place the speakers at least 20 inches (51cm) away from the side walls. • Position Studio 130 shelf speakers so that their tweeters are approximately at ear level. Peel the adhesive rubber feet from the card and apply them to the bottoms of the speakers. Rubber Feet www.jbl.com...
- Page 4 Studio 120c Center Speaker 0 – 2ft (0 – 61cm) Studio 190/180/130 Studio 190/180/130 Front Left Speaker Front Right Speaker • Peel the adhesive rubber feet from the card and apply them to the bottom of the speaker. Rubber Feet www.jbl.com...
- Page 5 Studio Studio 190/180/130 190/180/130 Front Left Front Right Studio 120c Speaker Speaker Center Speaker Studio 130 Studio 130 Surround Left Surround Right Side Speaker Side Speaker Surround Right Surround Left Speaker Speaker 5 – 6 ft (1.5m – 1.8m) www.jbl.com...
- Page 6 Front Right Studio 120c Speaker Speaker Center Speaker Studio 130 Studio 130 Surround Left Surround Right Side Speaker Side Speaker Studio 130 Surround Studio 130 Surround Right 3 – 6 ft apart Back Speaker Left Back Speaker (0.9m – 1.8m) www.jbl.com...
- Page 7 Speakers and amplifiers have corresponding positive and negative (“+” and “–”) connection terminals. All Studio 1 series speakers have connection terminals that are marked “+” and “–” on the terminal-cup assembly. Additionally, the “+”...
- Page 8 The Studio 1 series speakers’ gold-plated speaker terminals can accept a variety of wire connector types: bare wire, pin connectors, spade connectors and banana connectors. uSing Bare Wire or Pin connectorS: uSing SPade connectorS: uSing Banana connectorS: www.jbl.com...
- Page 9 Connection duaL-amPLiFier Bi-Wiring Left Right Speaker Speaker Amplifier 1 Left Right Left Right Midrange/ Midrange/ Tweeter Tweeter Connection Connection Woofer Amplifier 2 Woofer Connection Connection For more information about various speaker-wire and connection options, contact your local JBL dealer. www.jbl.com...
-
Page 10: Caring For Your Speakers
If the surfaces of the woofer and midrange cones become dusty, you can carefully sweep them clean with a soft, dry calligraphy brush or paint brush. Do not use a damp cloth. • NEVER touch anything to the tweeter dome. www.jbl.com... -
Page 11: Specifications
Crossover frequencies: 1.1kHz, 2.5kHz, 6dB/octave Enclosure type: Ported, with midrange subenclosure Connector type: Dual gold-plated binding posts (bi-wire capable) Dimensions (H x W x D): 40" x 7-7/8" x 13-1/8" (1016mm x 200mm x 333mm) Weight: 38.6 lb (17.5kg) www.jbl.com... - Page 12 8 ohms Sensitivity (2.83V/1m): 90dB Crossover frequencies: 900Hz, 12dB/octave; 1.8kHz, 24dB/octave Enclosure type: Ported Connector type: Gold-plated binding posts Dimensions (H x W x D): 6-1/2" x 21" x 9-7/8" (165mm x 533mm x 251mm) Weight: 18.6 lb (8.4kg) www.jbl.com...
- Page 13 © 2010 Harman International Industries, Incorporated. All rights reserved. Features, specifications and appearance are subject to change without notice. JBL, Bi-Radial and CMMD are trademarks of Harman International Industries, Incorporated, registered in the United States and/or other countries. PolyPlas is a trademark of Harman International Industries, Incorporated.
