Mic Mix Control

The Mic mix knob simultaneously adjusts the mic volume mixed into the program audio
output and into the amplified audio output. It has no effect on the fixed audio output. Rotate
clockwise to increase mic volume and counterclockwise to decrease.

Program Audio Volume

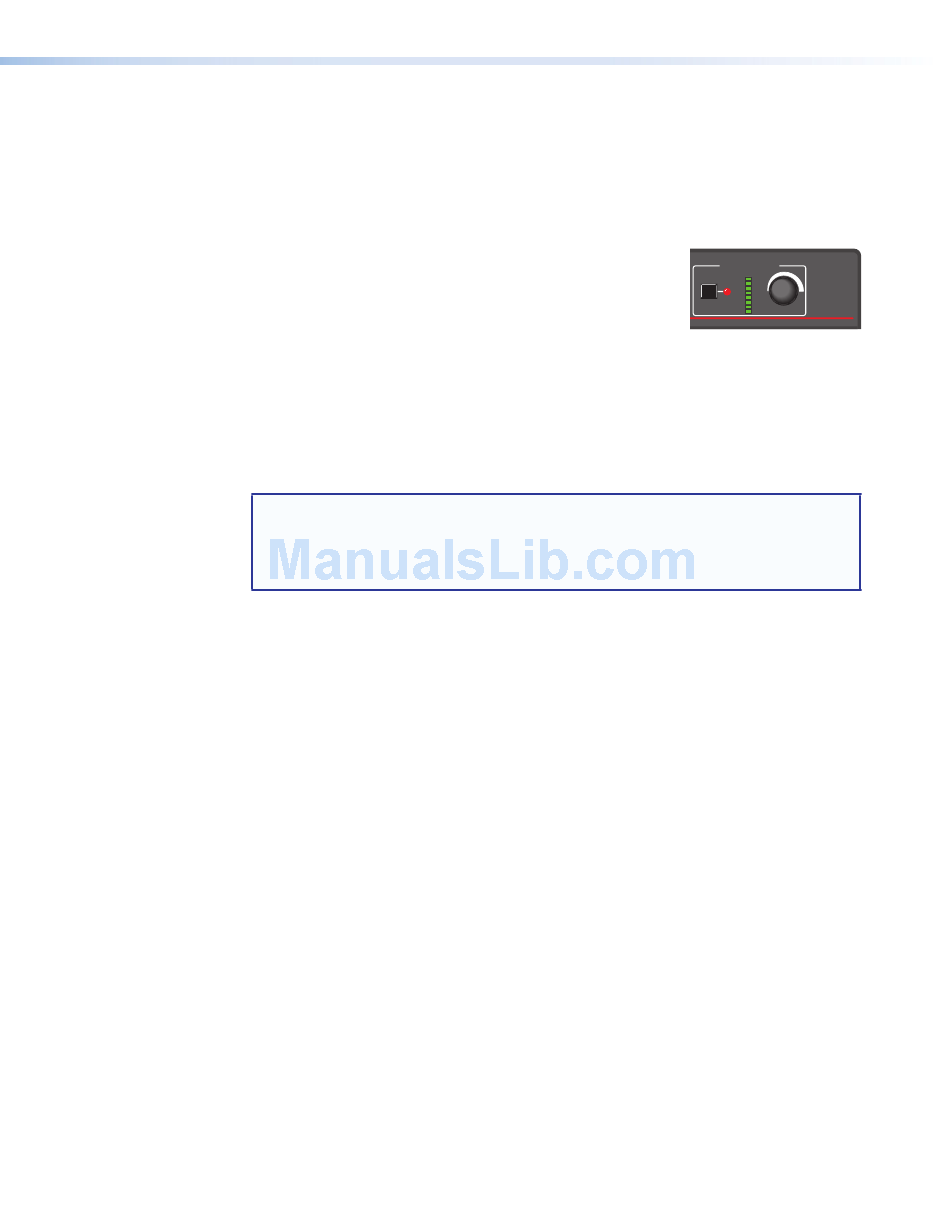

Use the front panel rotary encoder knob to increase or decrease
program volume. Program volume adjustment has no effect on
RGB
EXEC
1 2 1
MODE the mic volume so program audio can be muted while the mic
CONFIG input is still active. The program audio volume has a range from
0-100 allowing the switcher to be controlled with a MediaLink
controller. The associated LEDs light from bottom to top with
increasing volume (see

Program Audio Mute

The Program Audio mute button toggles output audio on and off. The indicator LED to the
right of the button lights red when program audio is muted. Press the mute button again to
unmute the output.
NOTES:
INPUTS
2 3 4 5
Audio Controls
• Program audio mute does not mute the microphone input.
• Changing the audio input selection does not unmute the program audio output.
•
Changing the program audio control knob unmutes the program audio output.
MIC
MUTE
6
on page 13).
PROGRAM AUDIO
MUTE
MPS SERIES
MEDIA PRESENTATION SWITCHER
MPS 602 • Operation 16
