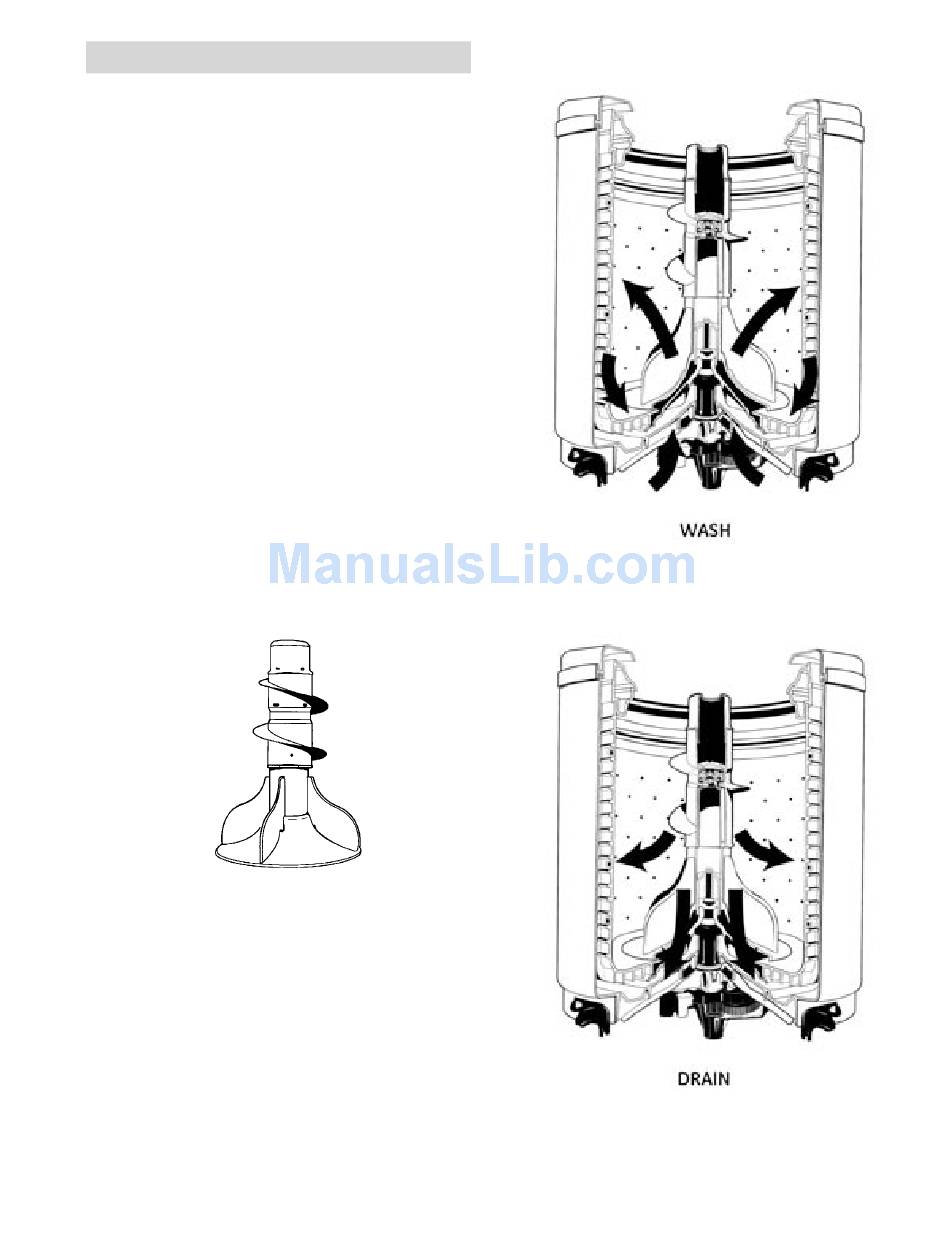

Lint Removal System
The lint filtering system consist of the turbo pump,
agitator, air bell, and self cleaning filter at bottom of
spin basket. During agitate water moves through
the sides and up from the bottom through the self
cleaning filters.
During pump down, prior to spin, the turbo pump
is energized, and water is drawn out the sides and
down through the self cleaning filter to clean and
remove lint from the bottom side of the filter area,
and flush lint down the drain.
Energy Saving
All wash cycles include energy-saving cold water
rinse.
Total Cycle Time
27 minute wash cycle, plus fill time. Wash time is
9 minutes with a final spin speed of approximately
630 RPM. Washer will automatically shut off at end
of cycle.
Dual Action Agitator
