Note: The front and rear rod and spring assemblies
have different spring compressions and should not
be interchanged. The rods are color-coded to ensure
they are replaced in the correct position. Note the
color location before removing.

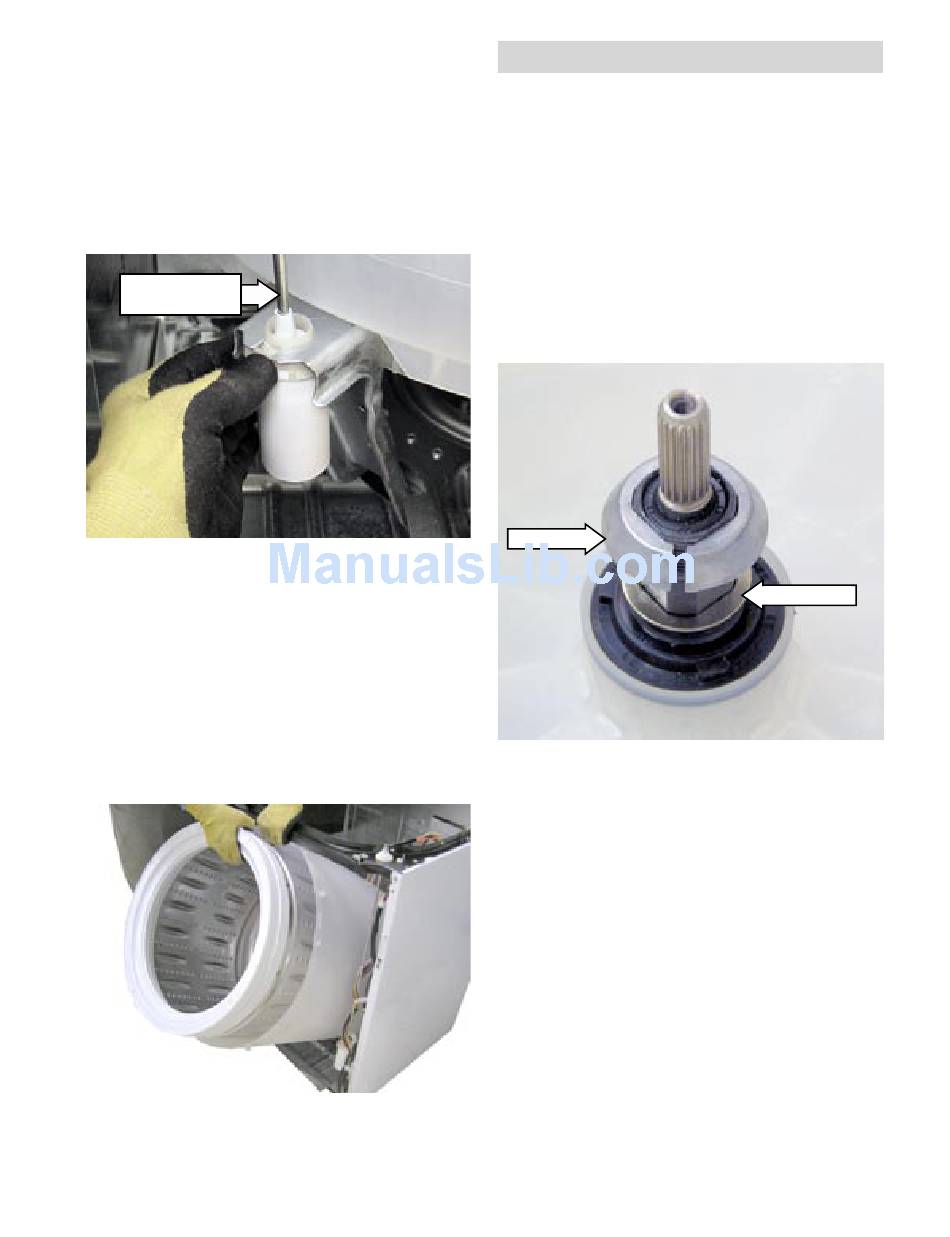

15. Disengage the front rod and spring assemblies
by raising the tub and removing the spring
assemblies from the platform.
Rod and Spring
Assembly
Note: The tub assembly will now lean forward.
This allows clearance to reach behind the tub and
access the rear rod and spring assemblies.
16. Disengage the rear rod and spring assemblies
by raising the rear of the tub and removing the
spring assemblies from the platform.
17. Pull the top of the tub assembly toward the
front of the cabinet, then remove the basket
from the tub.
18. Remove the tub assembly from the cabinet and
place it on a protected surface.

Shaft and Mode Shifter Assembly

The shaft and mode shifter assembly consists of the
shaft and tube, mode shifter cam, and mode shifter
coil. These parts come only as an assembly.
WARNING: Do not attempt to disassemble the shaft
and mode shifter assembly.
To remove the shaft and mode shifter assembly:
1. Remove the tub assembly from the cabinet.
(See Tub Assembly
2. Remove the split ring and flat washer from the
drive assembly.
Split Ring
Note: A new seal (part number WH02X10032) is
included with a replacement tub or shaft and mode
shifter assembly. Replace the seal when the tub has
been separated from the shaft and mode shifter
assembly.
– 25 –
.)
Flat Washer
(Continued next page)
