GE WCCB1030HWC Technical Service Manual page 26

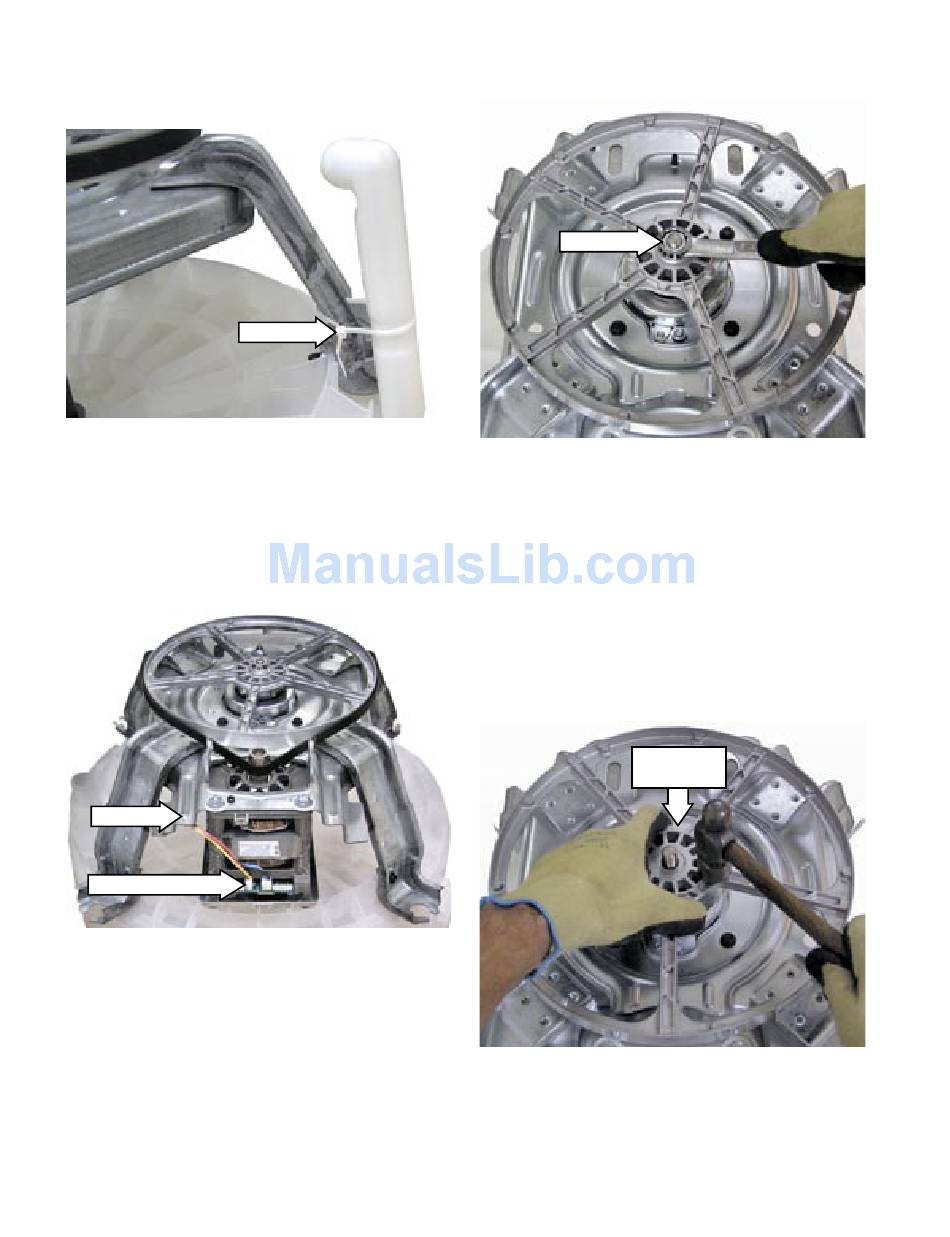

3. Invert the tub assembly on a protected surface
and remove the plastic tie that holds the flood
hose to the platform.
4. Disconnect the mode shifter coil wire harness
from the motor.
5. Release the compression tab that attaches the
mode shifter coil wire harness retainer to the
front of the platform.
Retainer
Coil Wire Harness
Plastic Tie
6. Run the belt off the drive pulley and remove the
3/4" pulley nut.
Pulley Nut
Note: When replacing pulley, tighten pulley nut to
275 in. lbs. of torque.
Note: In the following step, after removing the pulley
nut, it may be helpful to grab the center core of the
drive pulley with one hand and gently tap one of the
drive pulley arms with a hammer. The drive pulley
will "pop" off the tapered shaft.
7. Remove the drive pulley from the shaft and mode
shifter assembly.
– 26 –
Center Core of
Pulley
(Continued next page)
