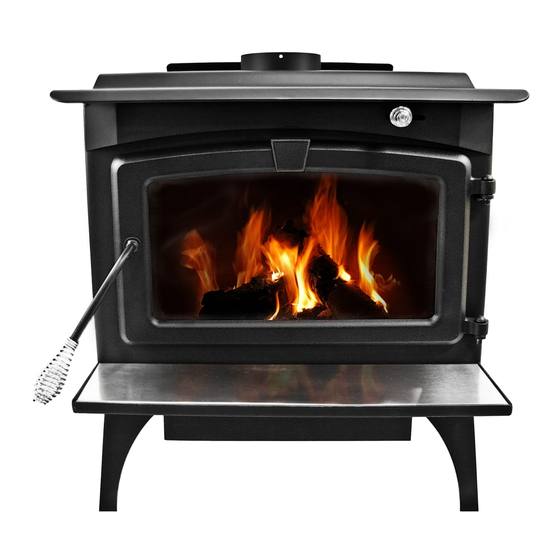

High Efficiency Wood Stove - Medium
Model Series:
HWS-227202
SAFETY NOTICE: IF THIS WOOD BURNING APPLIANCE IS NOT PROPERLY INSTALLED,
OPERATED, AND MAINTAINED, A HOUSE FIRE MAY RESULT.
TO REDUCE THE RISK OF FIRE, FOLLOW THE INSTALLATION INSTRUCTIONS. FAILURE
TO FOLLOW THE INSTALLATION INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE,
BODILY INJURY OR EVEN DEATH. CONTACT LOCAL BUILDING OFFICIALS ABOUT
RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS IN YOUR AREA.
BEFORE LIGHTING YOUR FIRST FIRE, REMOVE PLASTIC FILM OFF TRIM AND CLEAN THE
PLATED SURFACES WITH DENATURED ALCOHOL OR A GOOD QUALITY, NON-ABRASIVE LIQUID
GLASS CLEANER. APPLY WITH A VERY SOFT, CLEAN CLOTH. DO NOT USE PAPER TOWELS
TO CLEAN THE PLATED PARTS. FAILURE TO CLEAN ALL MARKS AND FINGERPRINTS FROM
THE PLATED SURFACES WILL CAUSE PERMANENT DAMAGE.
NOTE: Some states and provinces do not allow the exclusion or limitation of incidental or
consequential damages. The above limitations may not apply to you.
This manual describes the installation and operation of the Model HWS-227202, Model WS-2720,
and Model LWS-127201 non-catalytic wood heater. This heater meets US Environmental Protection
Agency's emission limits for wood heaters. Please read this entire manual before you install and use
your new room heater.
This stove is listed by OMNI-Test Laboratories
of Portland, Oregon to meet UL1482 for the US
and ULC-S627 for Canada.
6440 W. Howard St.
Niles, IL 60714-3302
877-447-4768
W a r m i n g Y o u r H o m e.
WS-2720
Do Not Discard This Manual: Retain for Future Use
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 877-447-4768 8:30 a.m. - 4:30 p.m. CST,
Monday - Friday or e-mail us at customerservice@ghpgroupinc.com.
W a r m i n g Y o u r H e a r t.
Model Series:
LWS-127201
WARNING
6" Flue
required
TESTED TO: UL 1482-1996/ULC-S627-00
REPORT NO. 418-S-02-2
60-10-003
05/13
Advertisement
Table of Contents
Related Manuals for pleasant hearth HWS-227202
Summary of Contents for pleasant hearth HWS-227202
- Page 1 NOTE: Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages. The above limitations may not apply to you. This manual describes the installation and operation of the Model HWS-227202, Model WS-2720, and Model LWS-127201 non-catalytic wood heater. This heater meets US Environmental Protection Agency’s emission limits for wood heaters.
-
Page 2: Operation
nearby obstructions, and other factors. Too much draft may CAUTION cause excessive temperatures in the appliance. An uncon- trolled burn or a glowing red part or chimney connector After reading these instructions, if you have any doubt indicates excessive draft. Inadequate draft may cause back about your ability to complete your installation in a pro- puffing into the room and “plugging”... - Page 3 Pedestal Base and Leg Installation Figure 0 Before Installing Stove, Follow These Steps for Pedestal Base and leg Installation. Model: HWS-227202 ash pan Medium Wood Stove w/Pedestal Base Pedestal base is pre-installed at the factory. No action is required. Model: WS-2720...
-
Page 4: Installation
INSTALLATION Figure 2 Contact your local building inspector prior to installation. A permit may be required in your area. Twist spring handle on in a clockwise motion. Spring handle will “thread” 1. Remove all parts from inside the stove body. down to desired location. -
Page 5: Floor Protection
FLOOR PROTECTION Figure 3 INSTALLATION ON A CONCRETE FLOOR An appliance installed on a concrete floor does not require floor protection. If carpeting or any other com- bustible floor covering is installed, a clearance around the stove must be maintained equivalent to the size of the floor protector described in the following section. - Page 6 VENTING SYSTEMS INSPECT APPLIANCE & COMPONENTS AND PRE-USE CHECK LIST The venting system consists of a chimney connec- tor (also known as stove pipe) and a chimney. These get extremely hot during use. Temperatures inside the Place the appliance in a location near the final installation area and follow the procedures below: chimney may exceed 2000°F (1100°C) in the event of a creosote fire.
-
Page 7: Chimney Requirements
Typical Stove Systems Stove system with masonry chimney consists of: • Stove • Chimney Connector (stove pipe) • Thimble • Masonry Chimney • Hearth Pad Floor Protection Figure 4.1 Masonry Chimney Stove system with prefabricated metal chimney consists of: • Stove •... -
Page 8: Venting Components
CHIMNEY SYSTEMS CHIMNEY REQUIREMENTS Prefabricated Metal Chimney • Must be a 6 inch (152mm) diameter (ID) high tempera- VENTING COMPONENTS ture chimney listed to UL 103HT (2100°F) or ULC S627. Chimney Connector: • Must use components required by the manufacturer for It is also known as flue pipe or stove pipe. - Page 9 Thimble Site constructed for masonry chimney installation: Components • A minimum length of 12 inches [05mm] (longer for thicker walls) of solid insulated factory-built chimney length constructed to UL 103 Type HT 6 inch (152mm) inside diameter. Chimney needs to extend a minimum of 2 inches (51mm) from the interior wall and a minimum of 1 inch (25mm) from the exterior wall.
-
Page 10: Installing Chimney Components
INSTALLING CHIMNEY COMPONENTS Solid Pack Chimney with Metal Supports as a Thimble Chimney Connector (Cont’d) Single wall connector or stove pipe. This must be at least 24 gauge mild steel. The sections must be attached to the appliance and to each other with the crimped (male) end pointing toward the stove. - Page 11 Chimney Termination Requirements NOTE: Follow manufacturer’s instructions for clearance, • Chimney performance may vary. securing flashing and terminating the chimney. • Trees, buildings, roof lines and wind conditions • Must have an approved and listed cap affect performance. • Must not be located where it will become plugged •...
- Page 12 WOOD STOVE QUICK START GUIDE ITEMS NEEDED FOR FIRST FIRE: • 10 - 15 Wadded Up Pieces of Newspaper • 10 - 20 Pieces of Dry Kindling • A Few Pieces of Seasoned Split Wood ADD NEWSPAPER ADD KINDLING OPEN AIR CONTROL CLOSE OPEN Pull damper control all the way...
-
Page 13: Do Not Burn
OPERATION 1. Remember to Ventilate well. Do not use a grate or elevate fire. Build wood fire directly 2. Allow the stove to cure before burning for long on hearth. When the stove is used for the first time the periods at high temperatures. -
Page 14: Glass Care
7. Place door on hinges and replace new push nuts, GLASS CARE purchased from GHP Group, on door pins to ensure door does not move after reinstall. The following use and safety tips should be observed: 1. -
Page 15: Ash Disposal
WAYS TO PREVENT AND KEEP UNIT FREE OF CREOSOTE USING THE ASH DRAWER 1. Burn with air control open for several minutes at NOTE: Coals may still be hot even though stove feels numerous intervals throughout the day during the cool to the touch. - Page 16 two years will be difficult to ignite, if it has become wet. g) Once the kindling has started to burn, start by 6. Why is there always a large quantity of thick black adding some of your smaller pieces of seasoned (dry) smoke present in the firebox? firewood.
- Page 17 If in doubt, contact a chimney expert and/or chimney Environmental Conditions manufacturer for help. Clean chimney, rain caps and High trees, low lying house location such as in a especially spark arrester regularly, to prevent cresote valley, tall buildings or structures surrounding your build-up, which will significantly reduce chimney draw and may cause a chimney fire.
- Page 18 QUICK REFERENCE MAINTENANCE GUIDE Start the first inspection after the first 2 months of use, CAUTION! Allow the appliance or if performance changes, and adjust your schedule to completely cool down before accordingly. Maintenance is required for safe operation performing any cleaning or maintenance. and must be performed to maintain your warranty.
- Page 19 Brick Pattern GHP Group reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice. Item No. Description Qty. Part No. Door Assembly 75-21-503 2. & 3. Glass (13.00”W x 8.38”H) and Gasket 75-21-514 1/8”...
-
Page 21: Year Warranty
2. The new GHP Group product must be installed and operated at all • This appliance has been subjected to prolonged periods of times in accordance with the installation and operation instructions dampness or condensation. -
Page 22: Warranty Registration
Contact GHP Group Customer Service. Make sure you have your sales receipt and the model/serial number of your GHP Group product. Do not attempt to do any service work yourself, unless pre-approved by GHP Group in writing as this will void the warranty.
