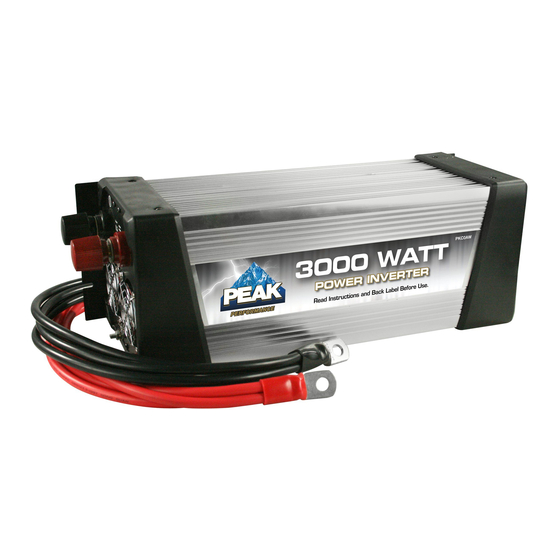

- Page 1 3000 Watt Power Inverter Model No.: PKC0AW Owner’s Manual and Warranty Information Read these instructions completely before using this product. Retain this Owner’s Manual for future reference. P/N XXXXX, 1/09...
-
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ........................ 2 Power Inverter Safety ......................2 INTRODUCTION ..........................3 FEATURES ............................3 OPERATION ............................ 4 Determining Power Consumption ................... 4 Power Source .......................... 5 Determining Battery Capacity and Operating Time ..............5 Positioning of Power Inverter ....................5 Marine Installation ........................ -
Page 3: Introduction
• Always turn the Inverter ON/OFF switch to the OFF position and disconnect the battery cables from the battery or power source when not in use to avoid draining the battery. • Do not expose the Inverter to fl ammables, water, rain or snow. •... -
Page 4: Operation
OPERATION The Power Inverter converts 12-volt DC (direct current) input voltage to 120-volt, 60 Hz AC (alternating current) power. The Inverter produces a “modifi ed sine wave.” The modifi ed sine wave is suitable for most AC powered appliances and personal electronic devices. The following devices may not work with a modifi... -
Page 5: Power Source
The following is a list of typical wattages of various appliances (the below wattage ratings are estimates only): • • Large TVs 400 watts Electric skillet 1200 watts • • Power drill 400 watts Refrigerator/freezer 1200 watts • • Computer system 400 watts 7-1/4"... -
Page 6: Marine Installation
ELECTROCUTION HAZARD Do not operate the Inverter if it is wet. Do not allow water, moisture or other liquids to come in contact with the Inverter, the device being operated or the power source. For marine installation, install the Power Inverter away from moisture and water. Install the Inverter above the waterline, as high as possible. -
Page 7: Connecting A Load To The Power Inverter
Connect the negative cable between the negative (-) terminal of the power source and the black negative (-) screw connector on the Inverter. Position the washer between the cable connector and the screw connector. Tighten the screw connector securely. Connect a #8 AWG or larger insulated wire between the chassis grounding connector on the Inverter and a clean electrical grounding point on the vehicle. -
Page 8: Battery Use
Monitor the temperature of the device(s) for the fi rst 10 minutes of operation to determine its temperature. If the temperature of the device(s) becomes excessively hot, it is an indication that the device(s) should not be used with this Inverter. When shutting down, fi... -
Page 9: Care And Maintenance
CARE AND MAINTENANCE Storage Store this Power Inverter in a cool, dry area and keep it away from direct sunlight, heat, excessive humidity and dampness. Storage temperature should be between -4°F and 185°F (-20°C and 85°C) with the humidity between 10% and 90%. Cleaning Do not clean or wipe the Power Inverter with solvents or chemical materials. -
Page 10: Troubleshooting
LIMITED WARRANTY Manufacturer warrants to the original consumer, or purchaser, that the PEAK® PKC0AW 3000 Watt Power Inverter will be free from defects in material and workmanship for ninety (90) days from the date of sale to the original purchaser.
