Peak PKC0CF Owner's Manual
  1. Manuals
  2. Brands
  3. Peak Manuals
  4. Inverter
  5. PKC0CF
  6. Owner's manual

Peak PKC0CF Owner's Manual

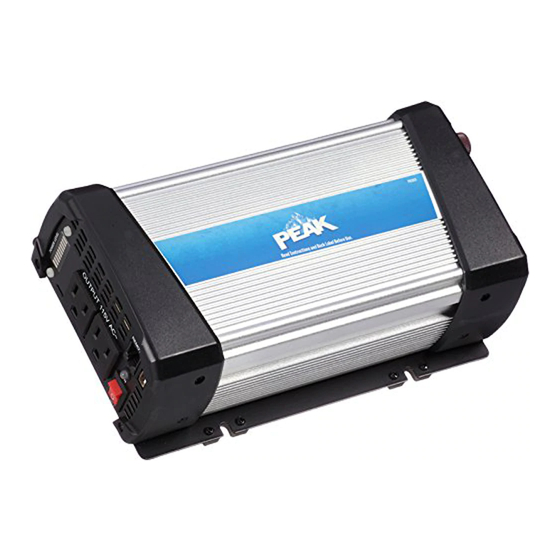

1200 watt mobile power outlet professional install kit
Hide thumbs

Advertisement

Table of Contents

1200 Watt Mobile
Power Outlet
Professional Install Kit
Model No.: PKC0CF
Owner's Manual
and Warranty Information
P O
W E
R
O N
/O F
F
F A U
L T
Read these instructions completely before using this product.
Retain this Owner's Manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PKC0CF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Peak PKC0CF

Summary of Contents for Peak PKC0CF

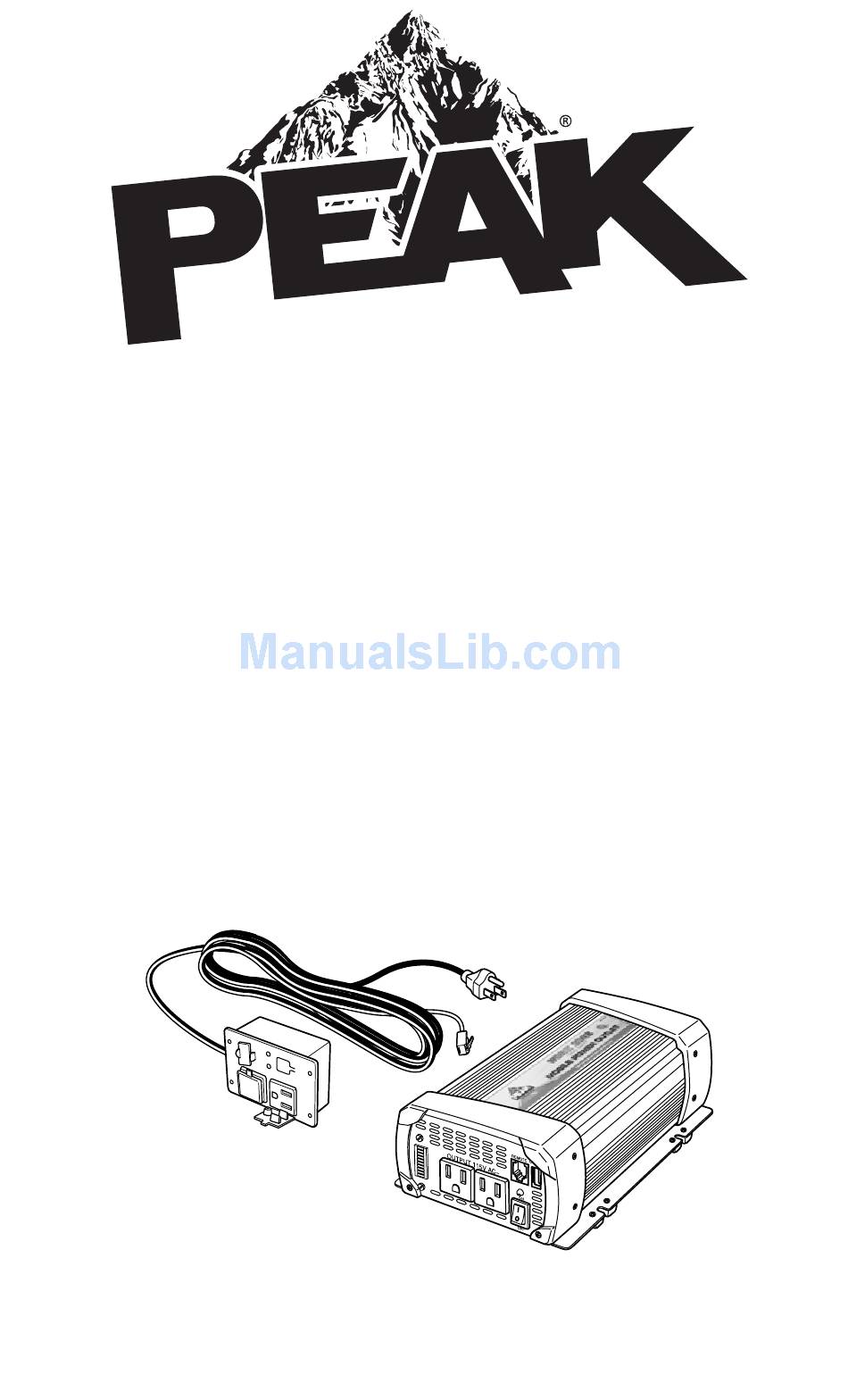

  • Page 1 1200 Watt Mobile Power Outlet Professional Install Kit Model No.: PKC0CF Owner’s Manual and Warranty Information /O F F A U Read these instructions completely before using this product. Retain this Owner’s Manual for future reference.
  • Page 2 • Do NOT disassemble the Power Inverter. There are no serviceable components within the Inverter. • Do NOT install or operate the Power Inverter in areas designated as IGNITION PROTECTED. The Inverter is NOT APPROVED for ignition protected areas. • Always turn the Inverter ON/OFF switch and remote outlet ON/OFF button to the OFF position and disconnect the battery cables from the battery or power source when not in use to avoid draining the battery.

  • Page 3: Operation (Using Your Inverter)

    /O F FA U Legend Remote Outlet Connector Remote Outlet North American Standard 110/120-volt AC Plug Cooling Fan Chassis Ground Connector Red Positive (+) Screw Connector Black Negative (-) Screw Connector Red Positive (+) Battery Cable Black Negative (-) Battery Cable Remote Outlet 110/120-volt Connector 10.
  • Page 4 When you turn on an appliance or device, it will require twice the rated wattage of the appliance or device to start. This is known as the “starting load” or “peak load.” To determine the starting load or peak load, multiply the rated wattage by two. If this exceeds the peak surge output of the Inverter (2400 watts [0.4 sec]), do not operate the appliance or device...
  • Page 5 1050 (example of total wattage) ÷ 120 (AC volts) = 8.75 amps 200 (amp-hour rating of 12V DC battery) ÷ 10 (always use 10) = 20 amp-hours @ 120 volts AC 20 (amp-hours @ 120 volts AC) ÷ 8.75 (amps) = 2.3 hours of operating time To increase the operating time, the amp-hour rating must be increased.
  • Page 6 Connecting to 12-volt Battery or 12-volt DC Using Supplied Cables The Power Inverter is equipped with two screw connectors to attach the cable leads to the Inverter. The red is positive (+) and the black is negative (-). Select the OFF position on both the Inverter and the remote outlet. Remove the red positive (+) screw connector cap.
  • Page 7 Legend Battery Charging Source 12-volt Batteries 200-amp ANL Fuse Power Inverter Negative (-) Cable (see SPECIFICATIONS for cable requirements) Positive (+) Cable (see SPECIFICATIONS for cable requirements) Additional Batteries Connected in Parallel Circuit Installation of Remote Outlet If you are not comfortable with 12-volt DC vehicle wiring or with the mounting of the remote outlet, have it professionally installed.
  • Page 8 Turn on the USB-powered device. When shutting down, turn off the USB device first, then disconnect the Inverter. Unplug the USB device from the USB power outlet. The USB power outlets on the Inverter and the remote outlet are unswitched outlets. Whenever the Inverter is connected to a battery, there will be power to the USB outlets.

  • Page 9: Care And Maintenance

    Over-Voltage Protection (Red LED on Inverter and remote outlet will light) - The Inverter will automatically shut down when the input voltage exceeds 15 volts DC. Overload Protection (Red LED on Inverter and remote outlet will light) The Inverter will automatically shut down if the continuous draw exceeds its maximum wattage rating. When the Inverter is at or near maximum output, an alarm will sound.

  • Page 10: Frequently Asked Questions

    If the wattage limitation is exceeded, the mobile power outlet will not power the accessory. This is known as “peak load,” “inductive load,” or “starting load.”...

  • Page 11: Specifications

    400 (amp-hour rating of DC battery) / 10 (always use 10) = 40 amp-hours @ 120 volts AC 40 (amp-hours @ 120 volts AC) / 20 (amps) = 2 hours of operating time DO NOT EXPOSE ANY PEAK ELECTRONIC DEVICES TO MOISTURE DURING STORAGE OR OPERATION. USE PEAK ELECTONIC DEVICES IN WELL-VENTILATED AREAS.

  • Page 12: Troubleshooting

    TROUBLESHOOTING Problem Situation Action Faulty connection Turn the Inverter power switch off; verify cables are tightly No power connected to the Inverter and the power source. output Battery voltage below Recharge or replace battery. 10 volts Equipment being Reduce the output load; DO NOT exceed maximum rating operated draws too for the Inverter.
  • Page 13 3 in. Use shaded area as a 2.5 in. guide to cut hole. PEAK CAR BATTERIES...
