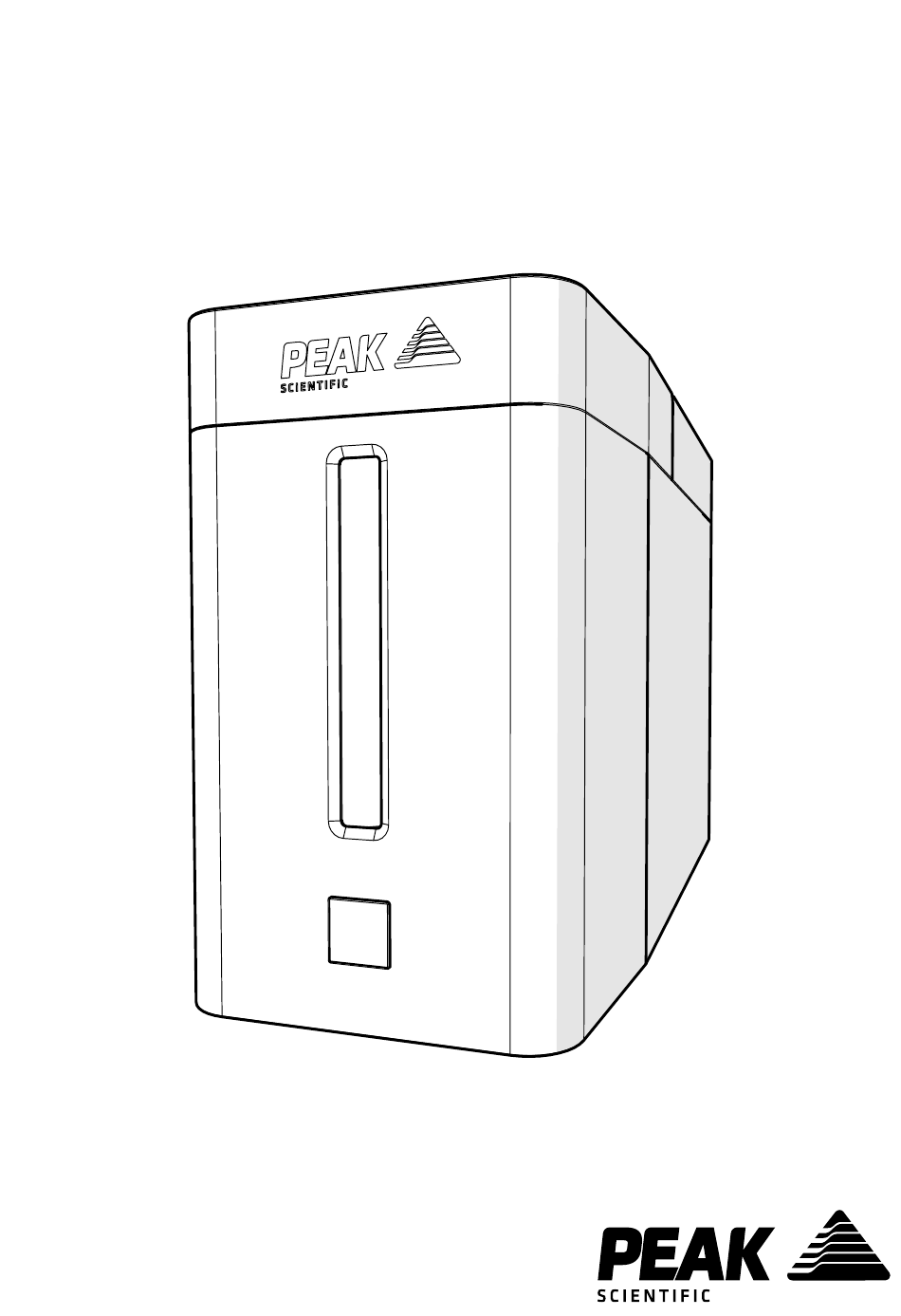

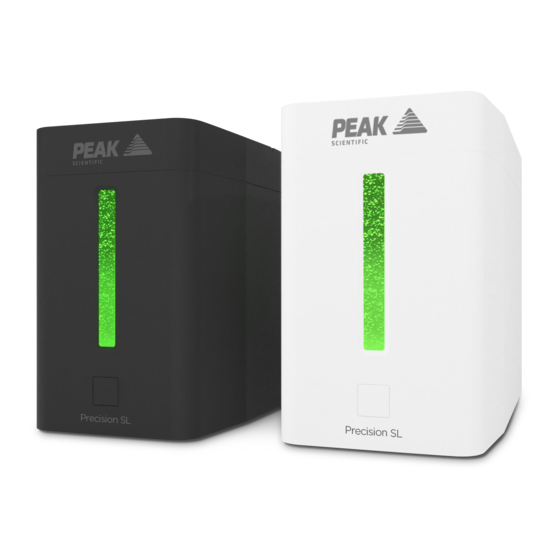

- Page 1 Precision SL (All Models) Installation Guide Precision Hydrogen SL Installation Guide Rev 1 RSID 3515 EN 09/04/20...
-
Page 2: Change History
User Manual for your gas generator. Thank you for selecting Peak Scientific to meet your Gas Generation needs, and should you require any further assistance or support please do not hesitate to contact Peak Scientific or the Peak Partner from which you purchased your Generator. -
Page 3: Safety Notices
If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by Peak Scientific, the user must ensure that the equipment will not be damaged or become hazardous to persons or property. -
Page 4: Fittings Kit
Fittings Kit *Tygon Tubing 05-3131 US Mains Cable C13 6-15 04-1029 DI Column 3302581 *Barbed Fitting 05-7029 US Mains Cable C13 5-15 04-1039 UK Mains Cable C13 04-1028 ****4L Water Bottle 10-9016 ***Desiccant Cartridge 3302583 EU Mains Cable C13 04-1038 **In-Line Water Filter 3302936 Page 4 Page 4... - Page 5 Unpack the generator from the shipping crate, as per the instructions on the box and position on a flat surface, in desired area. 7.5 cm 7.5 cm 7.5 cm Ensure that there is at least 7.5 cm of space, to the sides and rear of the generator. Page 5...
- Page 6 Copper / Stainless Steel only Connect tubing to the H2 delivery port at the rear of the generator, using the 1/8” swagelok compression fitting provided. Use new laboratory-grade copper or stainless steel tubing only. Connect the other end of the tubing to the Application. Page 6...
- Page 7 Fit appropriate tubing to H2 Exhaust output. 3302936 05-3131 05-7029 For Precision H2 SL equipped with auto-water fill or pressurised water fill, the Tygon Tubing, Barbed Fitting and In-Line Filter supplied in the generator fittings kit should be connected to the Fill port at the rear of the generator. Page 7...
- Page 8 CAUTION 04-1028 04-1029 04-1038 04-1039 Select the appropriate mains cable from the fittings kit and plug the IEC 60320/C13 cable into the mains input at the rear of the generator. Please note both 110V and 230V US cables have been supplied, ensure correct mains cable is used.
- Page 9 Turn the generator on, using the switch on the back of the unit. The LEDs will brighten and dim in green until diagnostics are complete. Once diagnostics are complete, the green LEDs will be solid. In the unlikely event that diagnostics are unsuccessful, the LEDs will turn orange. See Table on Page 12 Page 9...
- Page 10 The system can be stopped at any time by pressing the front button again. This will return the generator to Standby mode. CONGRATULATIONS Your PEAK SCIENTIFIC gas generator is now fully installed, operational and ready to supply gas on demand to your instrument. Page 10...
-
Page 11: General Notes
General Notes For Precision SL generators with automatic pumped water fill, ensure the water supply bottle is not located above the height of the generator, and that the supply is not pressurised. Generators with automatic valved water fill may be used with pressurised deionised water supplies between 1-3 bar. - Page 12 Please refer to the chart below for information regarding the different states. Pressurizing See Manual Mise sous pression Voir manuel (Green/Vert) (Amber/Ambre) At Pressure Contact Peak À pression Contacter Peak (Green/Vert) (Amber/Ambre) Depressurizing Contact Peak Dépressurisation Contacter Peak...
- Page 13 See our enclosed Peak [Protected] leaflet for further information. Important! You have 1 month to register your Peak Scientific product from the date of installation. Once registered the warranty will be honoured for a period of 12 months. If you wish to defer the installation of your generator, you must notify Peak Scientific immediately by emailing warranty@peakscientific.com.
- Page 14 Page 14...
- Page 15 Page 15...
- Page 16 User Manual for your gas generator. Peak Scientific has highly trained, fully certified Field Service Engineers located in over 20 countries across every continent around the world. This allows us to provide an industry-leading rapid response service to our customers.
