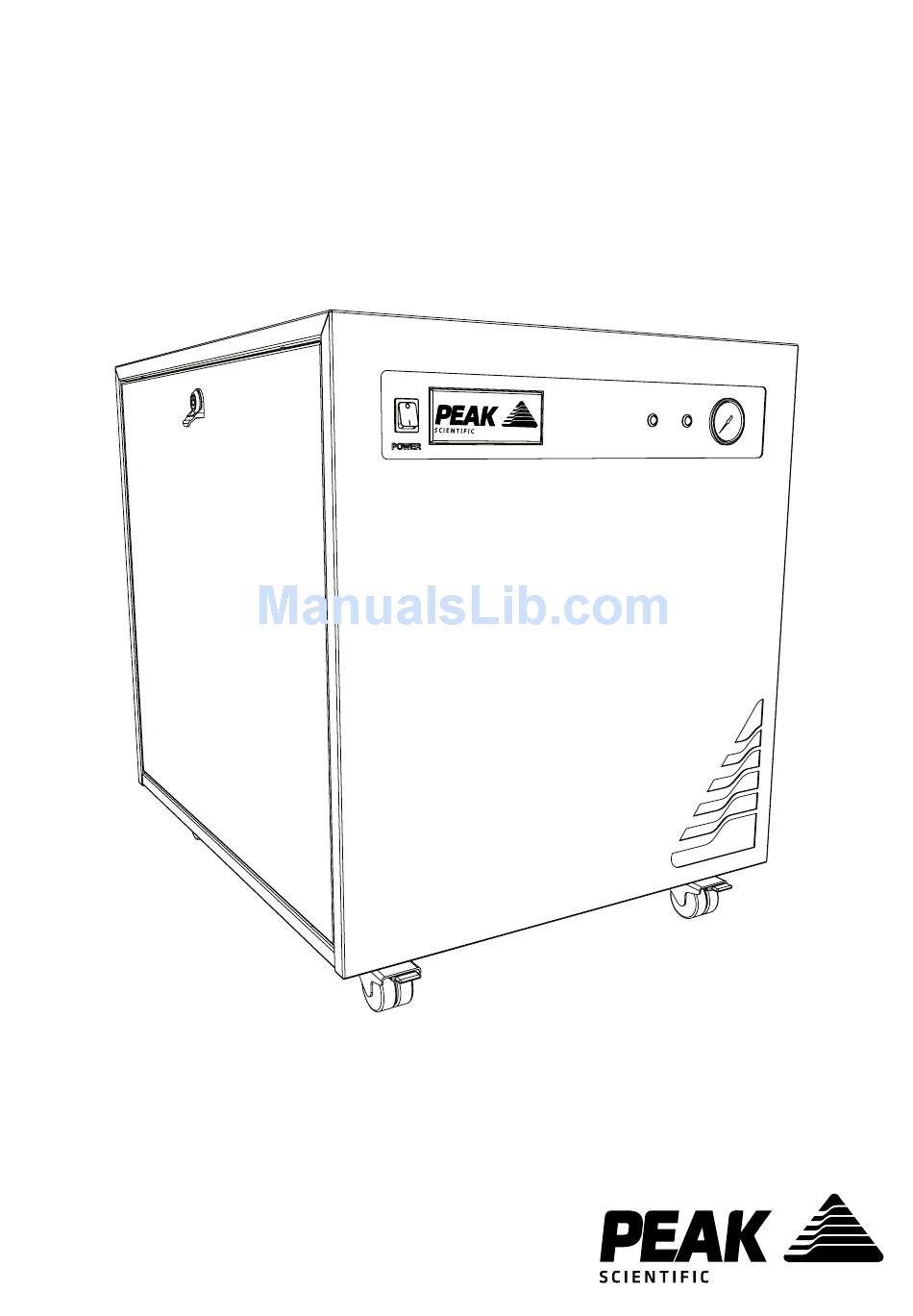

Genius 1022, 1023 & NM32LA (All Models) Installation Guide Copyright © Peak Scientific Instruments Ltd 2017 — Genius1022-1023-NM32LA Installation Guide Rev 2 PN IG-0001 RSID 1390 EN —10/11/2017... -
Page 2: Change History
User Manual for your gas generator. Thank you for selecting Peak Scientific to meet your laboratory gas generation needs, and should you require any further assistance or support please do not hesitate to contact Peak Scientific or Peak Partner from which you purchased your generator. -
Page 3: Safety Notices
If the user employs an operating procedure, item of equipment or a method of working which is not specifically recommended by Peak Scientific, the user must ensure that the equipment will not be damaged or become hazardous to persons or property. -
Page 4: Fittings Kit
Fittings Kit US Mains Cable 230V C19 6-15 04-1024 8mm Hex Key 00-0007 Flow Control SIlencer 02-1096 UK Mains Cable C19 04-1025 6mm Teflon White 00-1302 1/4” Compression Fitting 02-4421 EU Mains Cable C19 04-1026 1/4” Teflon Tubing 00-1266 1/4” - 6mm Push Fit Fitting 02-4600 x1** US Mains Cable 110V C19 5-15 04-1035... - Page 5 0° 0° Unpack the generator from the shipping crate and position on a flat surface, in desired area. 00-0007 First remove the compressor transit brackets. These can be accessed by removing the generator side panels. Starting with the left hand side panel, use the 8mm Hex Key 00-0007, and turn the lock 90° to the right. Page 5...
- Page 6 Once unlocked remove the left hand side panel, ensuring you disconnect the earth lead located in the lower middle of the panel. The transit bracket is located below the compressor and has a sticker on it stating ‘Remove before use’. To remove the transit bracket, remove the four screws as indicated, then slide the bracket out from underneath the compressor.
- Page 7 Follow the same process to remove the right hand side panel. Repeat step 4 to remove the right hand side transit bracket. Page 7...
- Page 8 02-4600 02-1096 Select the ¼”- 6mm Push Fit Fitting 02-4600 and attach to the Drain port at the rear of the generator. Attach the Flow Control Silencer 02-1096 to the Nitrogen Port. 00-1282 Connect the 6mm PE Tubing 00-1282 to the ¼”- 6mm Push Fit Fitting 02-4600. Fit the other end of the tubing to a suitable drain connection or container.
- Page 9 04-1024/04-1025/04-1026 Select the appropriate mains cable from the fittings kit and plug the IEC 60320/C19 cable into the mains input at the rear of the generator. CAUTION 110V 230V Plug the mains cable into the corresponding 110VAC 60Hz OR 230VAC 50/60Hz single phase power supply.
- Page 10 Note the displayed voltage. If the voltage is 195V to 219V a transformer will be required. This can be ordered directly from Peak. 06-3200 Dual Tap Transformer 200-230V For NM32LA (110V) voltage should not be less than 100V.
- Page 11 Switch the generator OFF using the switch on the front panel. CAUTION Remove the mains cable completely from the power supply. Page 11...
- Page 12 Re-attach both side panels to the generator, ensuring the earth leads are re- connected and the locks are secured. CAUTION With the side panels securely re-attached, the mains power supply can be re- connected. Page 12...
- Page 13 Again, switch the generator power ON using the switch on the front panel. minutes Leave the generator switched on for a period of 30 minutes to purge the system. Page 13...
- Page 14 The pressure gauge on the front panel will gradually increase to the factory set pressure. After 30 minutes of running, the generator can be turned OFF. Allow the stored gas in the internal tanks to dissipate. Page 14...
- Page 15 The purge is now complete. Once the pressure gauge on the front of the generator reads 0, the silencer fitting can be removed from the nitrogen port. 02-4421 02-4600 Depending on the size of the inlet on the instrument, select either the ¼” Compression Fitting 02-4421 or the remaining ¼”- 6mm Push Fit Fitting 02-4600.
- Page 16 00-1302 00-1266 Attach the appropriate sized Teflon tubing to the fitting attached to the nitrogen port and connect to the gas inlet of your instrument. Switch the generator power ON using the switch on the front panel. Page 16...
- Page 17 The pressure gauge will again gradually increase to the factory set pressure. CONGRATULATIONS Your Peak Scientific gas generator is now fully installed, operational and ready to supply gas on demand to your instrument. Page 17...
-
Page 18: General Notes
For further information relating to tubing lengths please refer to the user manual. Electrical Requirements Voltage Frequency Generator Plug Type Genius 1022 UK, EU, US 230V Genius 1023 UK, EU, US 230V NM32LA UK, EU, US 230V ... - Page 19 See our enclosed Peak [Protected] leaflet for further information. Important! You have 1 month to register your Peak Scientific product from the date of installation. Once registered the warranty will be honoured for a period of 12 months. If you wish to defer the installation of your generator, you must notify Peak Scientific immediately by emailing warranty@peakscientific.com.
- Page 20 Tel: +44 141 812 8100 Fax: +44 141 812 8200 For further information on any of our generator products please contact marketing@peakscientific.com Copyright © Peak Scientific Instruments Ltd 2017 — Genius1022-1023-NM32LA Installation Guide Rev 2 PN IG-0001 RSID 1390 EN —10/11/2017...
