Summary of Contents for Peak PKC0AJ

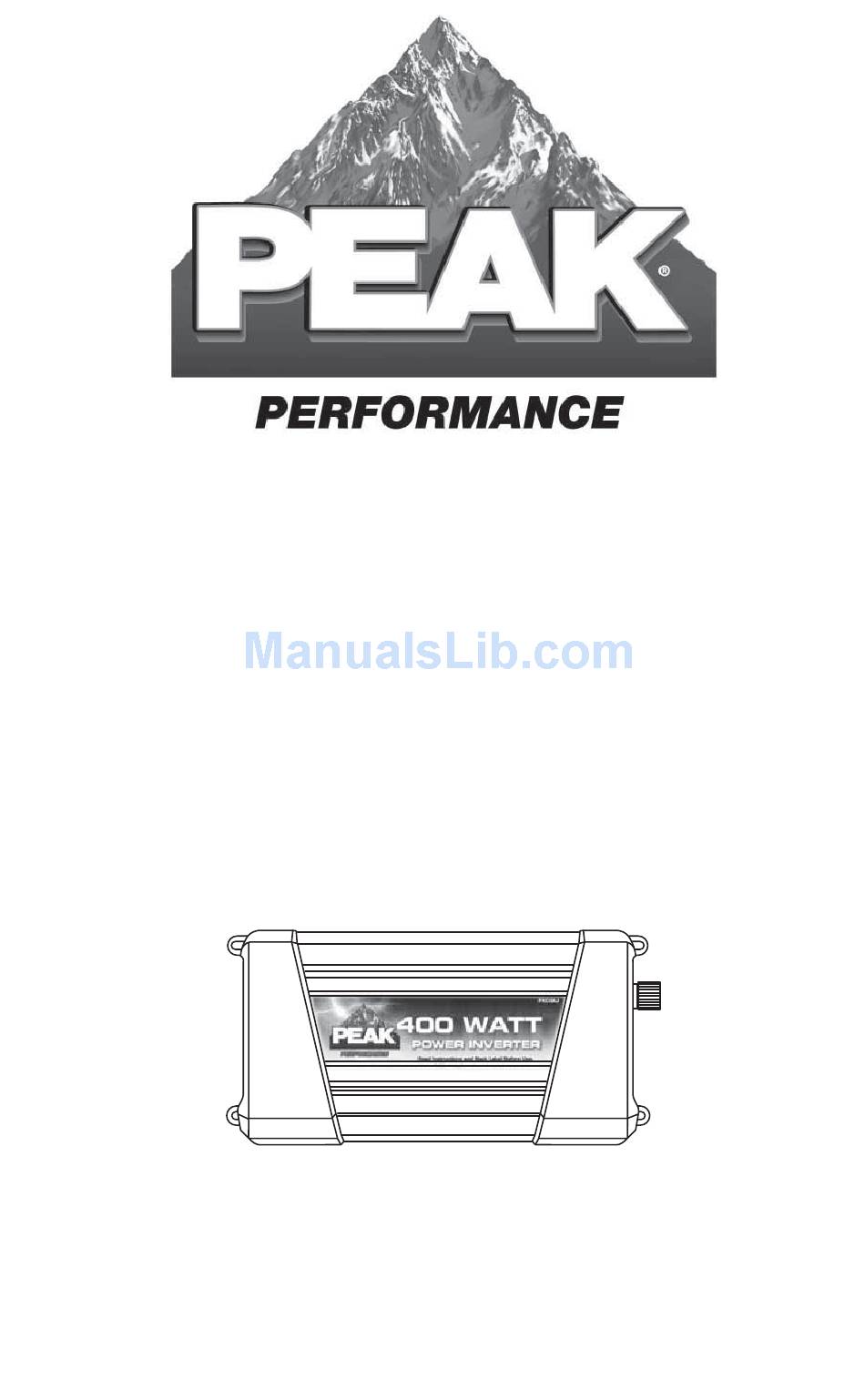

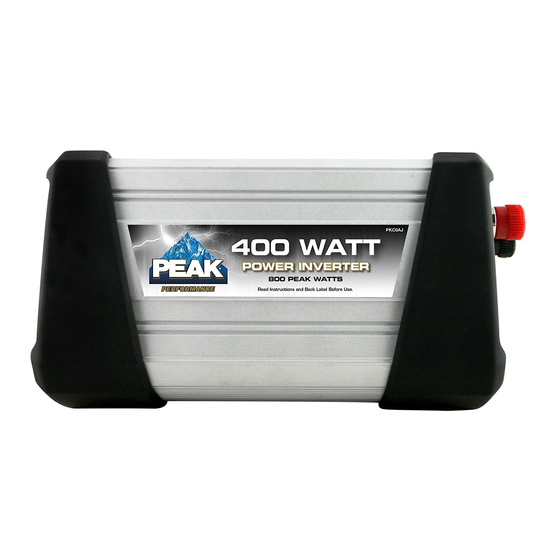

- Page 1 400 Watt Power Inverter Model No.: PKC0AJ / PKC0CJ Owner’s Manual and Warranty Information Read these instructions completely before using this product. Retain this Owner’s Manual for future reference. P/N XXXXX, 12/08...
-
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ........................ 2 Power Inverter Safety ......................2 INTRODUCTION ..........................3 FEATURES ............................3 OPERATION ............................ 4 Power Source .......................... 4 Positioning of Power Inverter ....................4 Connecting to Power Source ....................5 Connecting to 12-volt Cigarette Lighter/Accessory Socket ..........5 Connecting to 12-volt Battery or Power Source Using the Battery Clips ...... -
Page 3: Introduction
• Always turn the Inverter ON/OFF switch to the OFF position, disconnect the battery clips from the battery or power source, and disconnect the 12-volt power plug from the 12-volt cigarette lighter/ accessory socket when not in use to avoid draining the battery. •... -
Page 4: Operation
OPERATION The Power Inverter converts 12-volt DC (direct current) input voltage to 120-volt, 60 Hz AC (alternating current) power. The Inverter produces a “modifi ed sine wave.” The modifi ed sine wave is suitable for most AC powered appliances and personal electronic devices. The following devices may not work with a modifi... -
Page 5: Connecting To Power Source
When you turn on an appliance or device, it will require twice the rated wattage of the appliance or device to start. This is known as the “starting load” or “peak load.” To determine the starting load or peak load, multiply the rated wattage by two. If this exceeds the peak surge output of the Inverter, do not operate the appliance or device with the Inverter. -
Page 6: Battery Use
Press the ON/OFF switch to the ON position. The red LED indicator will light momentarily, then the green LED power indicator will light continuously, indicating that the unit is functioning. Plug the device into the 120-volt AC receptacle. Switch on the device. If an audible alarm sounds or the red LED fault indicator lights up for a protracted period of time, then either the power source voltage is too low or the current being drawn by the device is too great. -
Page 7: Care And Maintenance
Two 120V AC North American Standard Receptacles Maximum Continuous Power: 12-volt Battery 400W Maximum Continuous Power: 12-volt Cigarette 140W Lighter/Accessory Socket Peak Surge Output 800 Watts (0.1 Sec) ≥ 80% Effi ciency ≤ 39A at 400W Max. Current Consumption ≤ 900mA... -
Page 8: Troubleshooting
Before returning this product for any reason, please call toll free (800) 477-5847. Do not return your PEAK® product to the place of purchase for service. Send your unit, postage prepaid and insured, along with a copy of the original sales receipt and a phone number to the address below.
