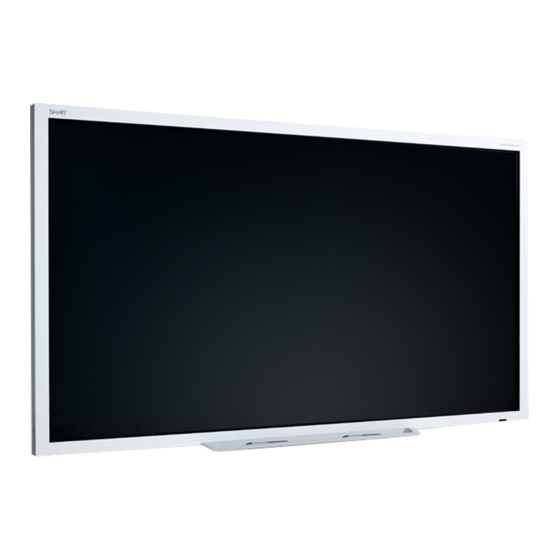

- Page 1 SMART Board® E70 Interactive flat panel User’s guide...
- Page 2 Product registration If you register your SMART product, we’ll notify you of new features and software upgrades. Register online at smarttech.com/registration. Keep the following information available in case you need to contact SMART Support. Serial number: Date of purchase: FCC warning This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
-
Page 3: Important Information
Important information W A R N I N G Failure to follow the installation instructions shipped with your SMART product could result in personal injury and product damage which may not be covered by your warranty. Do not open or disassemble the SMART product. You risk electrical shock from the high voltage inside the casing. - Page 4 I M P O R T A N T I N F O R M A T I O N Disconnect all power cables for your interactive flat panel from the wall outlet and seek assistance from qualified service personnel when any of the following occurs: The power cable or plug is damaged Liquid is spilled into the interactive flat panel Objects fall into the interactive flat panel...
-
Page 5: Table Of Contents
Contents Important information Chapter 1: About your interactive flat panel Feature highlights Included accessories Chapter 2: Installing your interactive flat panel Choosing a mounting location Choosing a mounting height Cable management Connecting your interactive flat panel Chapter 3: Using your interactive flat panel Using the remote control Menu control panel On-screen display menu... -
Page 7: Chapter 1: About Your Interactive Flat Panel
This chapter describes the features of your SMART Board® E70 interactive flat panel and provides information about product parts and accessories. Feature highlights Designed specifically for classrooms, the SMART Board E70 interactive flat panel combines a premium touch experience with the power of SMART Notebook™ collaborative learning software on a 70" display. -
Page 8: Remote Control
C H A P T E R 1 About your interactive flat panel Remote control The remote control enables you to access the on-screen menus and to change the display and input settings. smarttech.com/kb/170534... -
Page 9: Chapter 2: Installing Your Interactive Flat Panel
W A R N I N G The weight of the interactive flat panel is 169.8 lb. (77 kg). Refer to local building codes to ensure your installation area can support this weight. For more information, see SMART Board E70 interactive flat panel installation guide (smarttech.com/kb/170533). -
Page 10: Choosing A Mounting Height
C H A P T E R 2 Installing your interactive flat panel Choosing a mounting height Consider the general height of your user community when you choose the mounting height for the interactive flat panel. Cable management When connecting cables from the interactive flat panel to a computer and other peripheral devices, ensure the cables aren’t a trip hazard. - Page 11 C H A P T E R 2 Installing your interactive flat panel Connector Details AC power AC power pass-through USB B receptacle Computer to interactive flat panel touch interface Video in Component video receptacle Room control in RS-232 connector USB A receptacle Connect a USB drive and access the contents on it using the menu control panel or the remote control...
-
Page 13: Chapter 3: Using Your Interactive Flat Panel
Chapter 3 Using your interactive flat panel Using the remote control Menu control panel On-screen display menu Picture settings Audio settings Setup settings Time settings Multi Media mode Compatible file formats Video Audio Images This chapter describes the basic operation and setup of your interactive flat panel. Using the remote control The infrared remote control enables you to turn on and turn off your interactive flat panel, to change the input source, to change the volume and more. - Page 14 C H A P T E R 3 Using your interactive flat panel Button Details Selects the VGA input HDMI Select the HDMI input [Number buttons] Press buttons on the number pad to change channels VOL +/- Increase or decrease the audio output level Select a menu option in the on-screen display menu [Up and down buttons] MENU...
- Page 15 C H A P T E R 3 Using your interactive flat panel Button Details [Left and right buttons] Select an option in the on-screen display menu Use the right button to increase a value Use the left button to decrease a value INFO Display the current video source STILL...
-
Page 16: Menu Control Panel
C H A P T E R 3 Using your interactive flat panel Menu control panel The menu control panel enables you to access the on-screen display menu to adjust settings. Button Details Power Turn on or turn off the interactive flat panel Move the highlighted area up to select items in the on- screen display menu DOWN... -
Page 17: On-Screen Display Menu
C H A P T E R 3 Using your interactive flat panel On-screen display menu You can access the on-screen display (OSD) menu by pressing MENU on the menu control panel on the right side of the interactive flat panel or on the remote control. To exit the OSD menu, press MENU on the menu control panel on the right side of the interactive flat panel or EXIT on the remote control. -
Page 18: Multi Media Mode
C H A P T E R 3 Using your interactive flat panel Time settings Menu item Function Time mode Sets the time mode to automatic or manual Time Sets the time manually Sleep Time Sets the sleep timer On Timer Turns on the On Time function On Time Sets when the interactive flat panel turns on... -
Page 19: Audio
C H A P T E R 3 Using your interactive flat panel Category Code MPEG4 MPEG-4 Visual DivX5 DivX4 DivX3 XviD MS-MEG4 V3 WMV3 MJPEG M-JPEG Audio AC-3 Images JPEG TIFF To access content on the USB drive 1. Turn on the interactive flat panel 2. -
Page 21: Chapter 4: Troubleshooting Your Interactive Flat Panel
Chapter 4 Troubleshooting your interactive flat panel Locating the serial number Resolving image issues Resolving touch control issues This chapter provides you with the information necessary to solve simple issues that occur with your interactive flat panel. If issues persist, or aren’t covered in this chapter, contact SMART Support (smarttech.com/support) or your authorized SMART reseller (smarttech.com/where). -
Page 22: Resolving Touch Control Issues
C H A P T E R 4 Troubleshooting your interactive flat panel Problem Causes Solution When the video source is The cable between the HDMI Check all cable connections. HDMI, the image and audio are source and the interactive flat low quality. -
Page 23: Appendix A: Hardware Environmental Compliance
Appendix A Hardware environmental compliance SMART Technologies supports global efforts to ensure that electronic equipment is manufactured, sold and disposed of in a safe and environmentally friendly manner. Waste Electrical and Electronic Equipment and Battery regulations (WEEE and Battery Directives) Electrical and electronic equipment and batteries contain substances that can be harmful to the environment and to human health. -
Page 25: Index
Index accessories pen 1 included 1 Picture settings 11 Audio settings 11 projector installing 3 batteries 17 remote control 2 file formats compatible 12 serial number locating 15 Setup settings 11 installation choosing a location 3 Time settings 12 light sources 3 location 3 WEEE and Battery Directives 17 Menu control panel 10... - Page 28 SMART Technologies smarttech.com/support smarttech.com/contactsupport smarttech.com/kb/170534...
