3. Drainpan

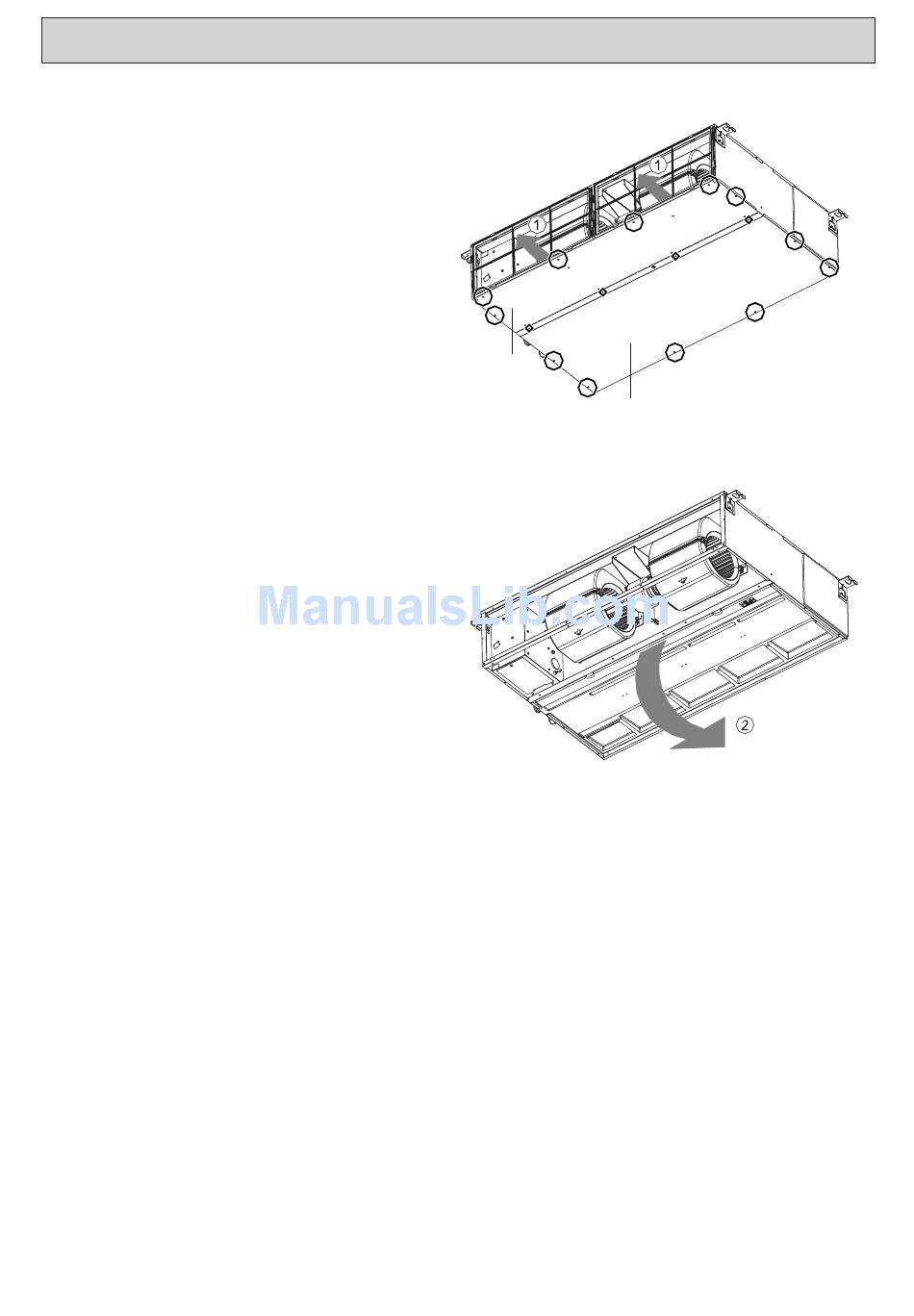

1. Removing the filter and the bottom plate
(1) Push up the tab on the filter, and pull out the
filter in the direction of the arrow 1.
(2) Remove the fixing screws on the bottom plate
(D), (E) to remove it.
2. Removing the drainpan
(1) Pull out the drain pan in the direction of the
arrow 2.
Exercise caution when removing heavy parts.
(D)
Fig. 4
Fig. 5
41
(E)
