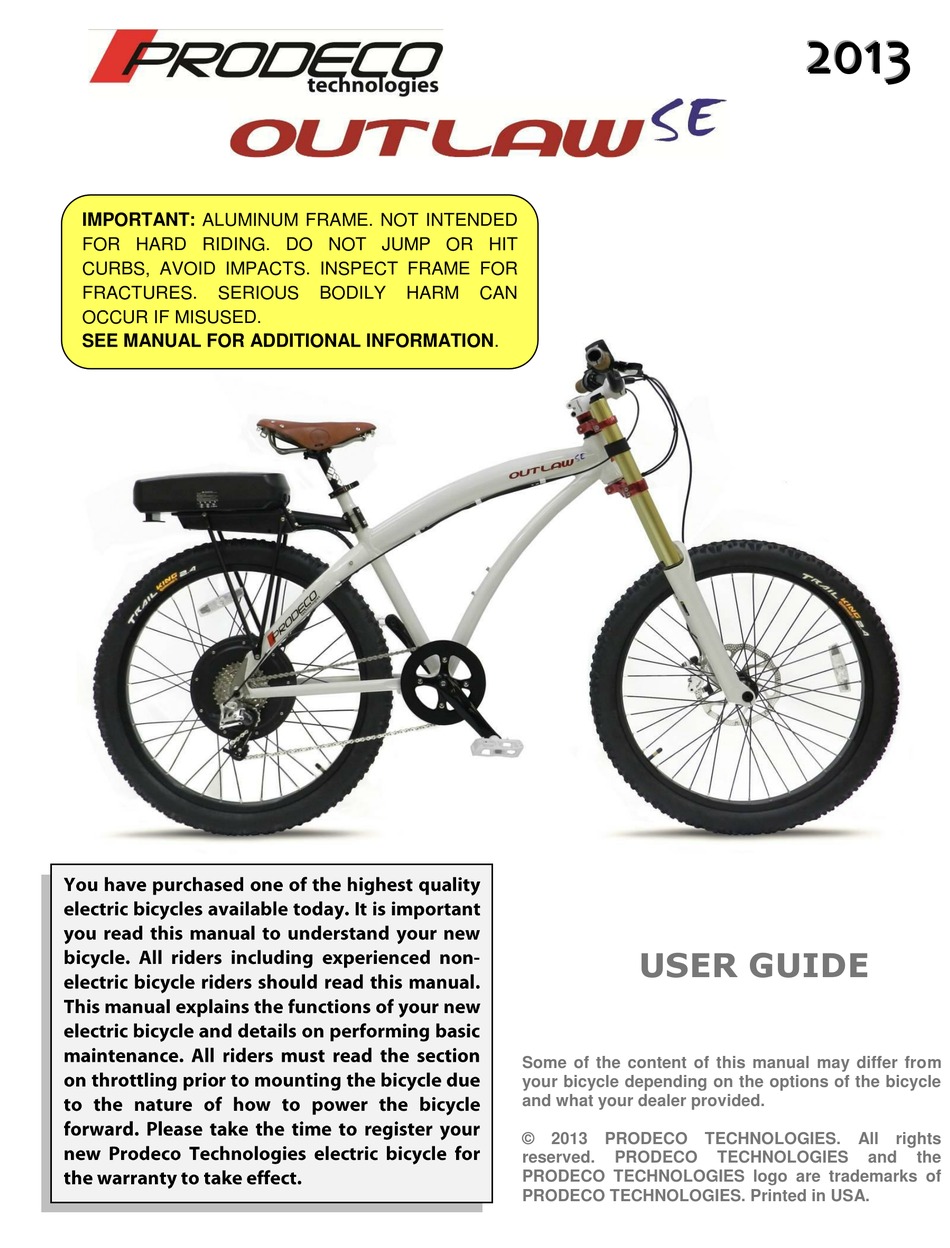

IMPORTANT: ALUMINUM FRAME. NOT INTENDED
FOR HARD RIDING. DO NOT JUMP OR HIT
CURBS, AVOID IMPACTS. INSPECT FRAME FOR
FRACTURES.
SERIOUS
OCCUR IF MISUSED.
SEE MANUAL FOR ADDITIONAL INFORMATION.
BODILY
HARM
CAN

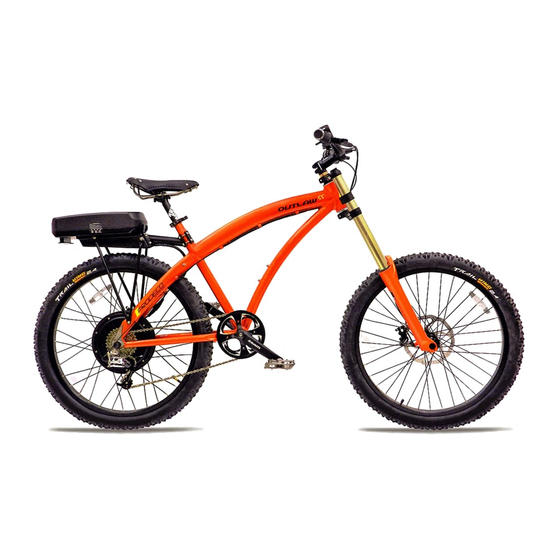

USER GUIDE
Some of the content of this manual may differ from
your bicycle depending on the options of the bicycle
and what your dealer provided.
© 2013 PRODECO TECHNOLOGIES.
reserved.
PRODECO
PRODECO TECHNOLOGIES logo are trademarks of
PRODECO TECHNOLOGIES. Printed in USA.
2
0
1
3
2 0
0 1
1 3
3
2
All rights
TECHNOLOGIES
and
the
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Prodeco Technologies Outlaw SE
Summary of Contents for Prodeco Technologies Outlaw SE
- Page 1 Some of the content of this manual may differ from your bicycle depending on the options of the bicycle and what your dealer provided. © 2013 PRODECO TECHNOLOGIES. All rights reserved. PRODECO TECHNOLOGIES PRODECO TECHNOLOGIES logo are trademarks of PRODECO TECHNOLOGIES. Printed in USA.
-
Page 2: Table Of Contents
Table of Contents Chapter 1: Introduction ……………………………………………………………………………………………….. 4 About this manual ………………………………………………………………………………………………….. 4 Important notices …………………………………………………………………………………………………… 4 General warning ……………………………………………………………………………………………………. 4 A special note to parents ………………………………………………………………………………………….. 5 Chapter 2: Getting Started …………………………………………………………………………………………… 5 Unpacking your box ……………………………………………………………………………………………….. 5 Contents of the box ………………………………………………………………………………………………... 5 A guideline of your Outlaw tool set ………………………………………………………………..……………... - Page 3 2 year limited warranty …………………………………..………………………..………………………………. 27 Registering your bike ……..…………………….………..………………………..………………………………. 28 Serial numbers and where to find them ………………..………………………..………………………………. 28 Registration card …………………..……………………..………………………..………………………………. 28 Part replacement procedure …………...………………..………………………..………………………………. 29 Contacting Prodeco Technologies ……………………..…………….…………..………………………………. 29 Chapter 11: Specifications …………………….………………………………...…………………………………… 29 Chapter 12: Parts ……………………………………………………..…….…………………………….…………… 30...
-
Page 4: Chapter 1: Introduction
You should read it thoroughly before riding your new bicycle for the first time. If you have any questions that are not answered in this manual, contact your local authorized Prodeco Technologies dealer or you can call customer service at 800.943.6190. -
Page 5: A Special Note To Parents
A special note to parents The Prodeco Technologies Outlaw is intended for use by adult riders only and not children. Many state laws require electric bicycle riders to be a minimum age of 16 with some states having minimum ages set at 18 years old (at the time of the writing of this manual). -
Page 6: Familiarize Yourself With Your Bicycle's Parts
e) Familiarize yourself with your bicycle’s parts Chapter 3: Basic Instructions a) Bicycle Fit It is very important your Outlaw is properly adjusted for comfort and to avoid the possibility of losing control while riding. The saddle will adjust to allow riders from 5’ 8‖ to 6’ 6‖ to set the proper measurement allowing for a safe and comfortable riding position. -
Page 7: Adjusting The Saddle
b) Adjusting the saddle You have the ability to adjust the height of your saddle instantly via the quick release clamp. There is also the ability to tilt the nose of the saddle up or down and adjust your riding position to be further or closer to the handlebar. The latter two require the use of the multi-use tool included with the purchase of your Outlaw. -
Page 8: Installing The Handlebar And Stem
Electric Bicycle Laws (please contact your local transportation department for the specific laws in your state and city regarding riding electric bicycles on bike pathways) Prodeco Technologies offers the following information as guidance and does not guarantee or assure riders they are following the rules and regulations of their state. -
Page 9: Safety First
HR 727 SECTION 1, CONSUMER PRODUCT SAFETY ACT The Consumer Product Safety Act (15 U.S.C. 2051 et seq) is amended by added at the end of the following: LOW-SPEED ELECTRIC BICYCLES SEC. 38.(a) Notwithstanding any other provision of law, low-speed electric bicycles are consumer products within the meaning of section 3(a)(1) and shall be subject to the Commission regulations published at section 1500.18(a)(12) and part 1512 of title 16, Code of Federal Regulations. -
Page 10: Before Your First Motorized Ride
If you have any questions, or if you feel anything about the bike is not as it should be, take the bike back to your dealer for advice or contact Customer Service at Prodeco Technologies. Riding an electric bicycle Riding an electric bike is similar to riding a non-electric bike but there are some differences to note. -
Page 11: Pedaling
m) Pedaling Ped aling your Outlaw is the same as pedaling a traditional bicycle. It is recommended you add pedaling to the power of the bicycle to enhance the distance per charge. The Outlaw is a 8 speed bicycle and has the ratio of a 42T front chain ring (sprocket) against a 11-28T rear freewheel which is designed to offer an easy pedaling pace at any speed from 1 MPH to 18 MPH. -
Page 12: Chapter 4: Safety
Chapter 4: Safety The manual has detailed safety riding methods. In this chapter we will further discuss additional safety guidelines. a) The basics Below is a safety guideline according to the CPSC (US Consumer Product Safety Commission) in regards to riding a bike. ... -
Page 13: Wet Weather Riding
You can contact Prodeco Technologies directly by phone or email and we will assist you with the proper adjustments for your bicycle and your size. The following list is the areas of adjustability the Outlaw offers: ... -
Page 14: Frame Size
Prodeco Technologies Outlaw’s frame measurement will differ from traditional bicycle frames due to the seat tube being longer than a traditional bicycle. The addition of the battery mount required an extension to the seat tube by 2 inches; therefore the measurement is 20‖. -
Page 15: Suspension Fork Adjustment
f) Suspension fork The Outlaw uses a dual pre-load double crown adjustable suspension fork. The fork’s dual leg adjustment offers either a softer of firmer ride for smoothing out the bumps in your path. The pre-load can be adjusted according to your weight and preference. -
Page 16: Removing And Installing The Front Wheel
Removing and installing the front wheel (20mm thru axle) The front axle on your Prodeco Outlaw is a 20mm thick thru axle utilizing a sealed bearing hub. The sealed bearing hub slides over the axle. The axle requires to be slid out to remove the front hub. -
Page 17: Chapter 7: Maintenance And Replacement
Ask your dealer to recommend the best tire pressure for the kind of riding you will most often do, and have the dealer inflate your tires to that pressure. Then, visually check inflation by sitting on the saddle with your weight and noticing your tires response. -
Page 18: Avoid Scratching Your Bike
Avid Elixir 5 brake guide included with your starter kit. If you are unsure as to a component or installation procedure, please contact your local authorized dealer or Prodeco Technologies. -
Page 19: Brake Pad Replacement
Before each ride Check houses for signs of wear. Squeeze the brake lever firmly and check for proper brake function. Check pads for wear and replace if necessary. Ensure rotors are free of foreign substances and oils. Pad Break In and Noise It may take anywhere from 20 to 40 complete stops to break in Avid pads. -
Page 20: Derailleur Adjustments
For a more detailed adjustment of the derailleur, you should bring your bicycle to an authorized Prodeco dealer or a neighborhood bike shop who services SRAM derailleurs. There is also a SRAM derailleur guide included with your bike. -
Page 21: Wheel Check
Brakes: Where the brake arms pivot will require a drop of lubricant. Do not put lubricant on the brake rotors or pads. The brake levers pivot pins require a drop of lube at the top of the pin. Any other type of lubrication or greasing of bearings should be performed by an authorized Prodeco Technologies dealer. h) Crankset The crankset of your Outlaw is a multi-piece system which includes a bottom bracket, crank arms, chainring, chainring bolts, chain guard and chain. -
Page 22: Maintenance Schedule
Maintenance schedule: As a common practice you should follow your maintenance schedule. You should study it and allow it to become second nature to your riding. Maintenance Schedule Each Ride Weekly Monthly 6 Months Yearly Tire Pressure Tire Condition Visual Inspection Brake Lever Pressure Quick Releases Handlebar Alignment... -
Page 23: Chapter 8: Battery Management
Chapter 8: Battery Management This section describes your battery and similar to Chapter 3, section o. ―Charging your battery‖ but goes into further detail. a) About your battery The Li-ion battery system of the Outlaw is the latest technology with a LiFEPO4 chemistry. This battery is maintenance free with no serviceable parts. -
Page 24: Installing And Locking The Battery
c) Installing and locking the battery As shown in the photos above, the battery has 2 thin ―slotted rails‖ (1 on each side of the battery towards the front) and a ―raised slot‖ (towards the rear and near the handle) at the underside of the battery. These rails and slots hold the battery in place when riding. -
Page 25: Storing The Battery
The design has been simplified so your local bicycle shop can service it without issue and minimal time. Please review the sections below on the electrical components used on your Prodeco bicycle and how to replace a component for a new one. Each electrical component is listed, except for the battery which was detailed in Chapter 8. -
Page 26: Brushless Hall Sensor Controller
The motor is covered under warranty as a complete wheel including spokes and rim to the consumer. If the motor fails, contact Prodeco Technologies or the closest Authorized service center for a replacement. Simply remove the motor as explained in Chapter 6. -
Page 27: Chapter 10: Warranty Service And Repair
Chapter 10: Warranty Service and Repair Prodeco Technologies has taken great measures in designing and producing your new bicycle to be issue free while offering years of performance. The bicycle however is a mechanical item and an issue can arise. Your bike components are covered for a 2 year period from the date of purchase or within 30 months of the production date, whichever is sooner. -
Page 28: Registering Your Bike
2 weeks from the date of purchase. You must save your receipt of purchase. To register your bicycle, you can fill out the form on the Prodeco Technologies website at www.prodecotech.com or you can fill out the registration card in the next section below and either scan it to service@prodecotech.com, fax it to... -
Page 29: Part Replacement Procedure
Part replacement procedure In the occurrence of a component becoming defective, Prodeco Technologies tries to make part replacement as painless as possible. Simply contact Prodeco Technologies service department and explain the problem. A representative will assist you with getting the part at issue replaced quickly. You can also bring your bicycle to a local authorized dealer and they can assist you with any problem. -
Page 30: Chapter 12: Parts
BATTERY MOUNT PART - Prodeco Technologies - Ignition - v1.3a PT.BAM.PT.IG.13A.13A $8.95 BATTERY MOUNT PART - Prodeco Technologies - Mount Cover - (48V) - Left Side - v1.3a PT.BAM.PT.COV.LL.13A $4.95 BATTERY MOUNT PART - Prodeco Technologies - Mount Cover - (48V) - Right Side - v1.3a PT.BAM.PT.COV.LR.13A...
