Summary of Contents for Heatrae Sadia SUPREME 220SS

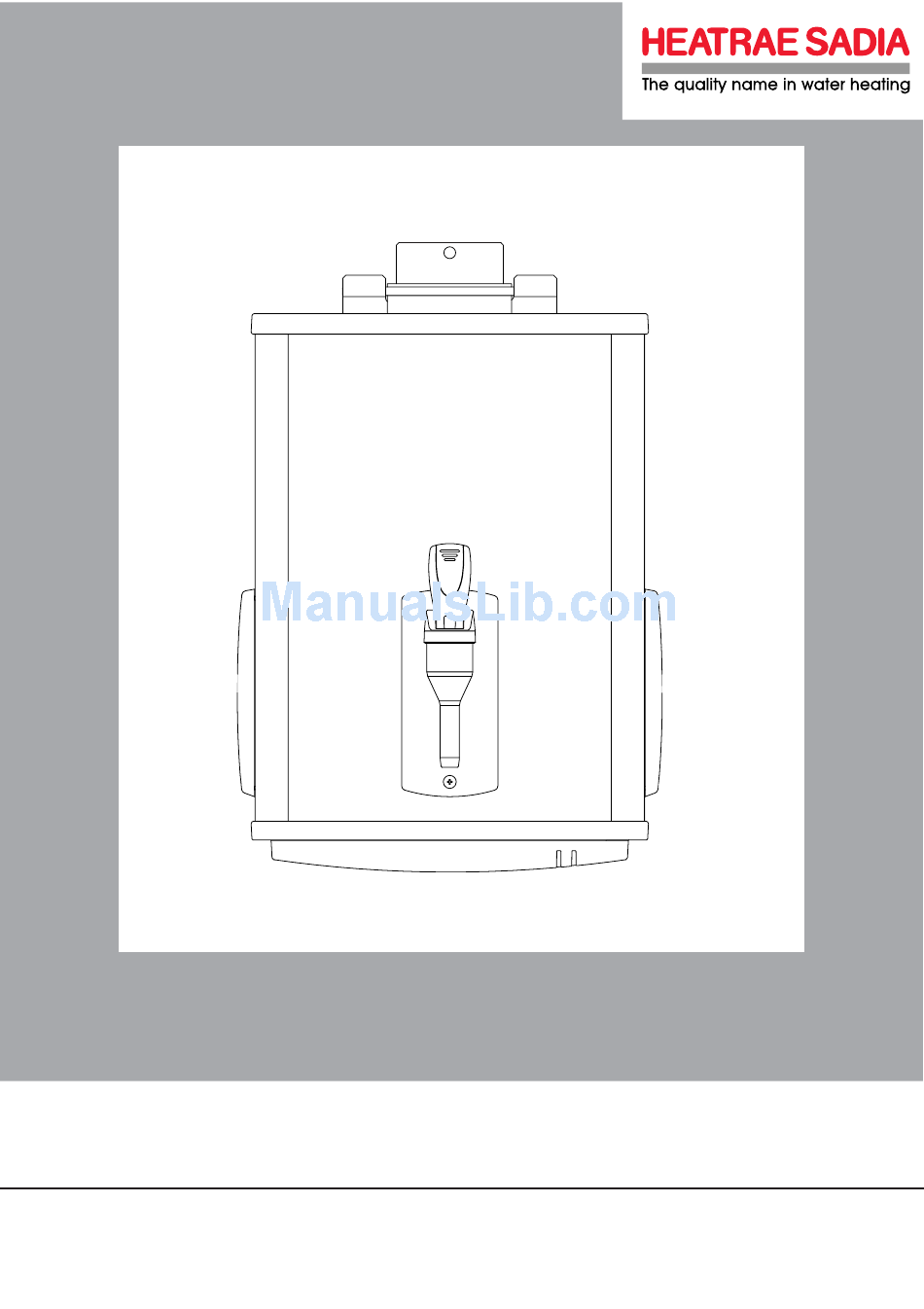

- Page 1 SUPREME 220SS, 250SS, 310SS, 560SS Fitting Instructions and User Guide...
-
Page 2: Technical Specifications
(0 bar) Minimum supply pressure 0.05MPa (0.5 bar) Maximum supply pressure 1.0MPa (10 bar) Enclosure rated IP X2 A-weighted sound pressure level is below 70 dB Nominal commissioning times (minutes) to temperature ready Supreme 220SS Supreme 250SS Supreme 310SS Supreme 560SS... -
Page 3: Component Checklist
COMPONENT CHECKLIST Before commencing installation check that all the following components have been supplied with your Supreme heater. • Wall mounting bracket (hinged, 2 parts) • M10 x 20mm set screws (2 off) • No.12 x 1 1/2” screws (3 off) •... -
Page 4: Important Installation Points
1.0 IMPORTANT INSTALLATION POINTS 1.1 The Supreme stores and dispenses water at or close to boiling point at all times it is switched on. Due caution must be taken when choosing a location for the product to minimise misuse. Locate the unit over a draining board NOT over the sink or basin. 1.2 Push fit connectors DO NOT grip chromed or stainless pipe. -
Page 5: Installation - Mounting
A drip tray is available as an accessory (Heatrae Sadia Code No. 95 970 123). The heater should be positioned at a height to suit the items being filled (flasks, pans, cups etc.). - Page 6 2.7 The bracket bolted to the CASE BACK of the Supreme uses the M10 x 20 set screws (2 off) supplied. The small, slotted, CASE BACK bracket is secured in position with No. 8 x ½” screws (supplied). Note orientation and slot in the case anchor strap before fitting screws (Fig.
- Page 7 Fig.2 MODEL DIMENSIONS (mm) CABLE VENT INLET INLET ENTRY &VENT 220SS 250SS 310SS 1000 560SS...
-
Page 8: Installation - Water Supply
If a combination of entry points are required an additional connector will be required as follows: Bottom inlet, rear vent 15mm x 15mm elbow (Heatrae Sadia part no. 95 607 510) Rear inlet, bottom vent 15mm x 15mm straight (Heatrae Sadia part no. 95 607 509) 5.0 INSTALLATION - VENT PIPE... -
Page 9: Installation - Electrical Requirements
6.0 INSTALLATION - ELECTRICAL REQUIREMENTS WARNING: This appliance must be earthed. It is suitable for a.c. supply only. Disconnect the electrical supply before removing the cover. Installation must be in accordance with the current local Wiring Regulations. 6.1 Supremes must only be connected via Fixed Wiring (a plug and socket must not be used). - Page 10 7.0 COMMISSIONING 7.1 The electronic control system of the Supreme has a self commissioning and calibration function. Once the heater is installed and all services have been connected the unit should require no further adjustment before use. 7.2 Check that all electrical, water and vent pipe connections have been made and are secure.
-
Page 11: Maintenance
Supreme Maintenance Plan Heatrae Sadia are pleased to offer a preventative maintenance program to ensure that your product will continue to operate to your satisfaction in even the most troublesome of water conditions. -
Page 12: Fault Finding
9.0 FAULT FINDING SAFETY NOTE: DISCONNECT THE ELECTRICAL SUPPLY BEFORE REMOVING THE COVERS AND CARRYING OUT ANY OF THE FOLLOWING ACTIONS. DO NOT BYPASS ANY SAFETY CONTROLS. SYMPTOM POSSIBLE CAUSE ACTION No indicator lights 1. If no water or heat – no power to 1. - Page 13 3. Steam thermistor out of calibration 3. Check values (5Kohms at 100°C, 100Kohms at 25°C) Any faults that cannot be identified using the Fault Finding chart, or in case of doubt, contact the Heatrae Sadia Service Department, telephone 08701 600125 , Fax 08701 600181.
-
Page 14: Spare Parts
Supreme water heater. Please refer to the rating label of your heater before ordering to ensure the correct spare parts are obtained. DO NOT REPLACE WITH PARTS NOT RECOMMENDED BY HEATRAE SADIA - THIS WILL INVALIDATE YOUR GUARANTEE AND MAY RENDER THE INSTALLATION DANGEROUS. Element plate (3kW) - Page 15 ‘O’ ring kit 95 611 001 Hose kit (low pressure) 95 607 014 Hose kit (high pressure) 95 607 013 Push fit connector 15x15 straight 95 607 509 Push fit connector 15x15 elbow 95 607 510 Fitting kit 95 607 023 1112 Fig.
- Page 16 Fig. 4...
-
Page 17: User Instructions
11.0 USER INSTRUCTIONS Warning - dispensed water is scalding hot - tap body reaches water temperature 11.1 Once installed the filling and heating cycles of the Supreme are completely automatic. 11.2 To dispense the water the tap handle should be pulled down and towards the user, a suitable container having been placed under the outlet spout. -
Page 18: Environmental Information
4. The unit has been used only for heating potable water. The unit is not guaranteed against damage by frost or due to the build up of scale. Please note that if Heatrae Sadia personnel or agents are requested to descale a unit, this work will be chargeable. - Page 19 NOTES...
-
Page 20: Spares Stockists
Unit3A, 780 South Street, Whiteinch, Glasgow G14 0SY Tel: 0141 4341530 Main No: 01603 420100 Main Fax: 01603 420218 Sales: 08700 603262 Sales Fax: 08700 600403 Service: 08701 600125 Heatrae Sadia Heating Service Fax: 08701 600181 Hurricane Way Norwich NR6 6EA www.heatraesadia.com 36 00 5913 Issue 2...
