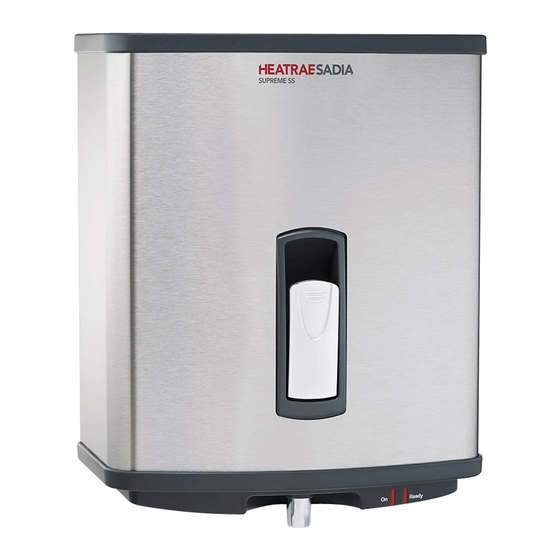

Heatrae Sadia SUPREME 150SS Fitting Instructions And User Manual
  1. Manuals
  2. Brands
  3. Heatrae Sadia Manuals
  4. Water Heater
  5. SUPREME 150SS
  6. Fitting instructions and user manual

Heatrae Sadia SUPREME 150SS Fitting Instructions And User Manual

Hide thumbs Also See for SUPREME 150SS:

Advertisement

Table of Contents

SUPREME 150SS, 165SS, 180SS
1
Fitting Instructions and User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUPREME 150SS and is the answer not in the manual?

Questions and answers

Related Manuals for Heatrae Sadia SUPREME 150SS

Summary of Contents for Heatrae Sadia SUPREME 150SS

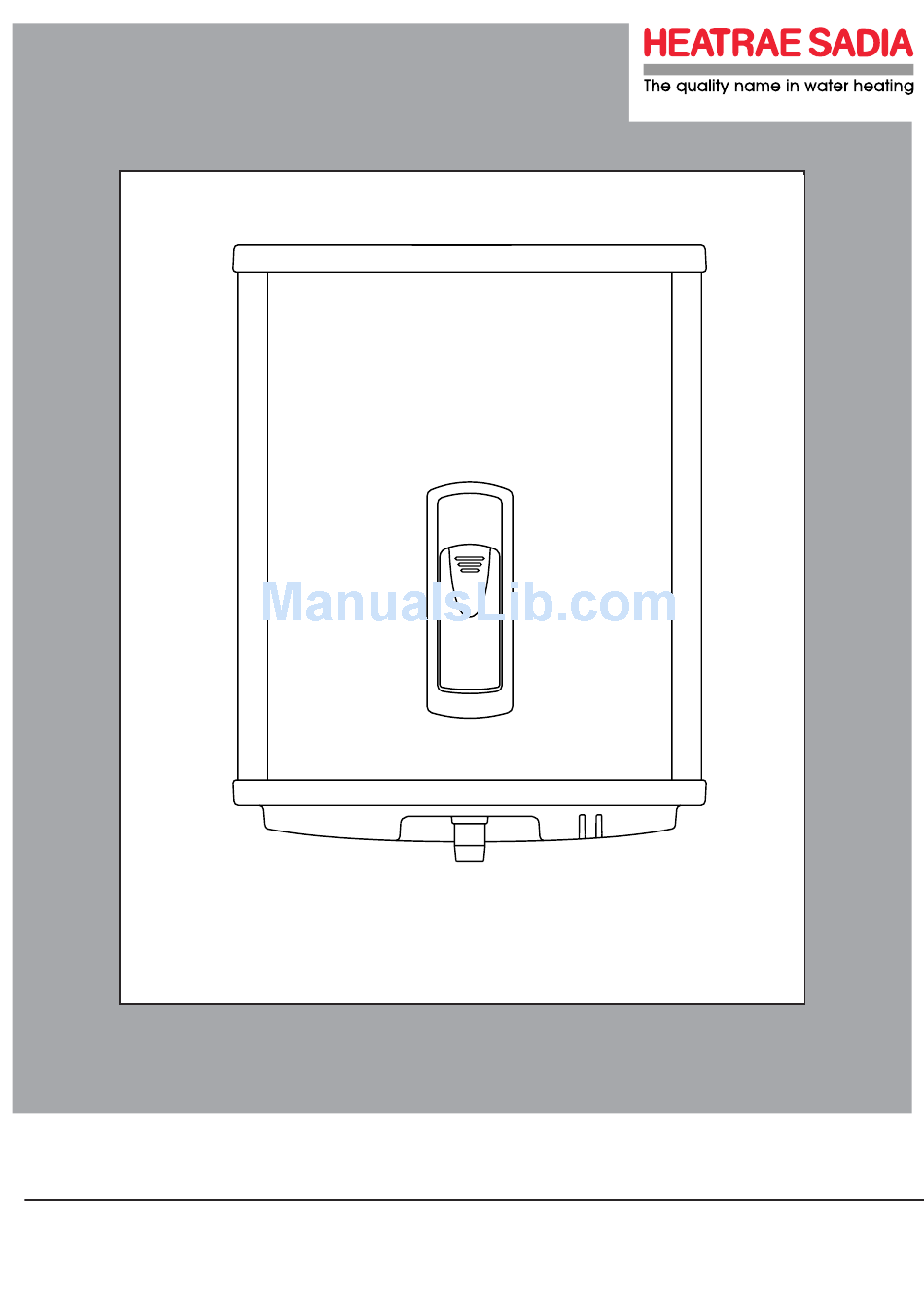

  • Page 1 SUPREME 150SS, 165SS, 180SS Fitting Instructions and User Guide...

  • Page 2: Technical Specifications

    0MPa (0 bar) Minimum supply pressure 0.05MPa (0.5 bar) Maximum supply pressure 1.0MPa (10 bar) Enclosure rated IP X2 A-weighted sound pressure level is below 70 dB Nominal commissioning times (minutes) to temperature ready Supreme 150SS Supreme 165SS Supreme 180SS...

  • Page 3: Component Checklist

    COMPONENT CHECKLIST Before commencing installation check that all the following components have been supplied with your Supreme heater. • Wall mounting bracket • No.12 x 2” screws (2 off) • No.8 x 1” screw (1 off) • No.12 x 2” wall plug (2 off) •...

  • Page 4: Important Installation Points

    1.0 IMPORTANT INSTALLATION POINTS 1.1 The Supreme stores and dispenses water at or close to boiling point at all times it is switched on. Due caution must be taken when choosing a location for the product to minimise misuse. Locate the unit over a draining board NOT over the sink or basin. 1.2 Push fit connectors DO NOT grip chromed or stainless pipe.

  • Page 5: Installation - Mounting

    If this is not possible consideration should be given to any spillages that may occur under the heater. A drip tray is available as an accessory (Heatrae Sadia Code No. 95 970 123). The heater should be positioned at a height to suit the items being filled (flasks, pans, cups etc.).
  • Page 6 approx Fig.2 MODEL DIMENSIONS (mm) OUTLET INLET VENT CABLE ENTRY 150SS 165SS 180SS...

  • Page 7: Installation - Water Supply

    If a combination of entry points are required an additional connector will be required as follows: Bottom inlet, rear vent 15mm x 15mm elbow (Heatrae Sadia part no. 95 607 510) Rear inlet, bottom vent 15mm x 15mm straight (Heatrae Sadia part no. 95 607 509) 5.0 INSTALLATION - VENT PIPE...

  • Page 8: Installation - Electrical Requirements

    6.0 INSTALLATION - ELECTRICAL REQUIREMENTS WARNING: This appliance must be earthed. It is suitable for a.c. supply only. Disconnect the electrical supply before removing the cover. Installation must be in accordance with the current local Wiring Regulations. 6.1 Supremes must only be connected via Fixed Wiring (a plug and socket must not be used).
  • Page 9 7.0 COMMISSIONING 7.1 The electronic control system of the Supreme has a self commissioning and calibration function. Once the heater is installed and all services have been connected the unit should require no further adjustment before use. 7.2 Check that all electrical, water and vent pipe connections have been made and are secure.

  • Page 10: Maintenance

    Supreme Maintenance Plan Heatrae Sadia are pleased to offer a preventative maintenance program to ensure that your product will continue to operate to your satisfaction in even the most troublesome of water conditions.

  • Page 11: Fault Finding

    9.0 FAULT FINDING SAFETY NOTE: DISCONNECT THE ELECTRICAL SUPPLY BEFORE REMOVING THE COVERS AND CARRYING OUT ANY OF THE FOLLOWING ACTIONS. DO NOT BYPASS ANY SAFETY CONTROLS. SYMPTOM POSSIBLE CAUSE ACTION No indicator lights 1. If no water or heat – no power to 1.
  • Page 12 3. Steam thermistor out of calibration 3. Check values (5Kohms at 100°C, 100Kohms at 25°C) Any faults that cannot be identified using the Fault Finding chart, or in case of doubt, contact the Heatrae Sadia Service Department, telephone (01603) 420330, fax (01603) 420349.

  • Page 13: Spare Parts

    DO NOT REPLACE WITH PARTS NOT RECOMMENDED BY HEATRAE SADIA - THIS WILL INVALIDATE YOUR GUARANTEE AND MAY RENDER THE INSTALLATION DANGEROUS. Element assembly (incorporating start dry cutout)
  • Page 14 Outlet spout - cover 95 604 001 Push fit connector 15x15 straight 95 607 509 Push fit connector 15x15 elbow 95 607 510 Inlet injector assembly (150 model) 95 607 019 Inlet injector assembly (165 model) 95 607 022 Inlet injector assembly (180 model) 95 607 026 Tank (150 model) 95 608 926...
  • Page 15 Fig. 4...

  • Page 16: User Instructions

    11.0 USER INSTRUCTIONS 11.1 Once installed the filling and heating cycles of the Supreme are completely automatic. 11.2 To dispense water, a suitable container having been placed under the outlet spout, the tap handle should be pulled down and towards (or pushed away from) the user. The water dispensed will at all times be boiling or close to boiling point so due caution must be taken when using the product, especially if it is likely to be used by children, aged or infirm persons.

  • Page 17: Environmental Information

    4. The unit has been used only for heating potable water. The unit is not guaranteed against damage by frost or due to the build up of scale. Please note that if Heatrae Sadia personnel or agents are requested to descale a unit, this work will be chargeable.
  • Page 18 NOTES...

  • Page 20: Spares Stockists

    Unit3A, 780 South Street, Whiteinch, Glasgow G14 0SY Tel: 0141 4341530 Main No: 01603 420100 Main Fax: 01603 420218 Sales: 01603 420110 Sales Fax: 01603 420149 Service: 01603 420330 Service Fax: 01603 420349 Heatrae Sadia Heating Hurricane Way Norwich NR6 6EA www.heatraesadia.com 36 00 5914 Issue G...

This manual is also suitable for:

Supreme 165ssSupreme 180ss
