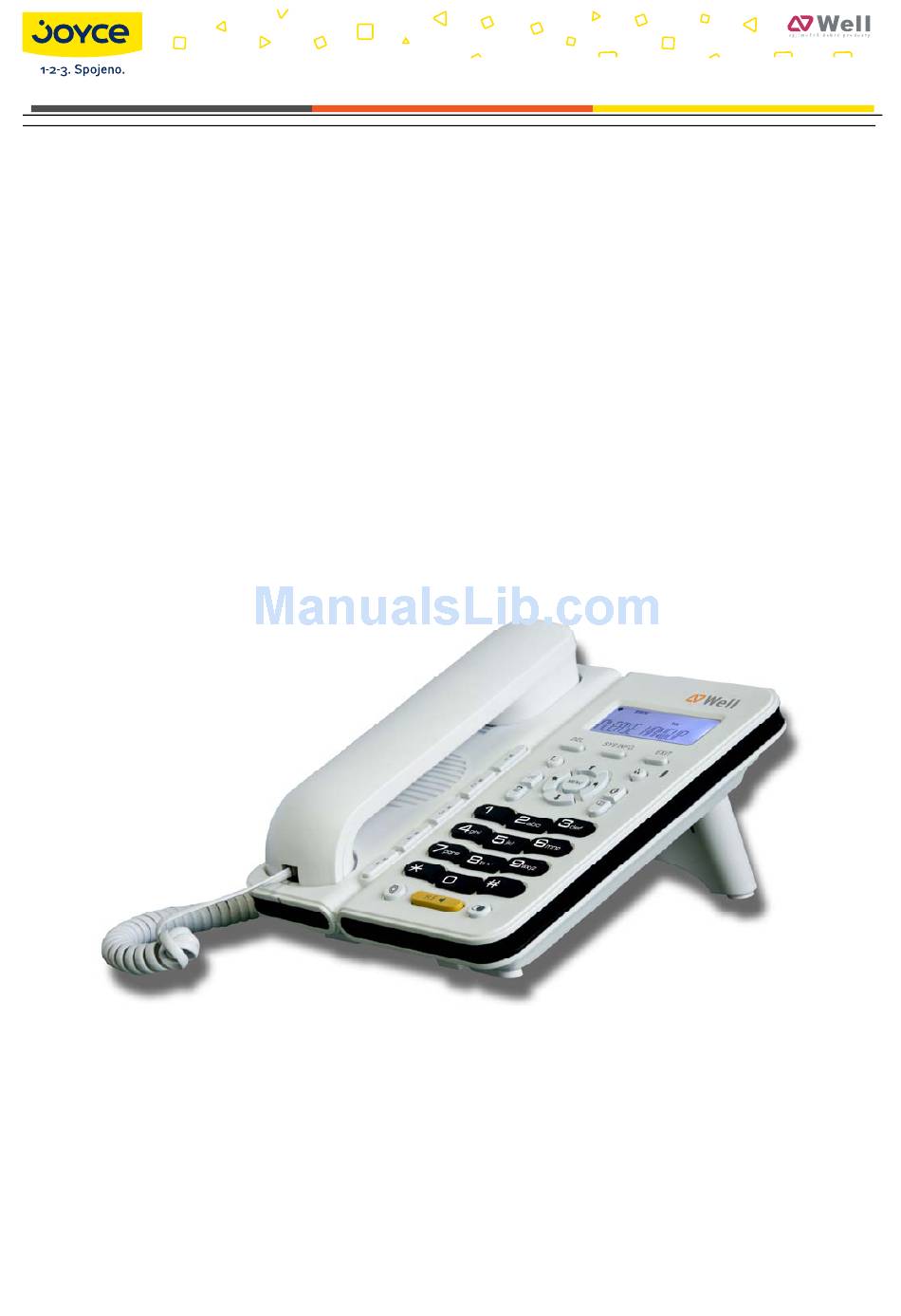

- Page 1 JOYCE ČR, s.r.o., Venhudova 6, 614 00 Brno, ČR, IČ: 25317571, DIČ: CZ25317571, Tel.: +420 539 088 010 Fax: +420 539 088 000, E-mail: joyce@joyce.cz, Web: www.joyce.cz, www.joyce-energie.cz WELL 3170IB User manual...
-
Page 2: Table Of Contents
About This Guide Thank you for your purchase of VOGTEC products ---- 3170IB entry-level IP phones. You have made an excellent choice. We hope you fully enjoy all the features of the product. 3170IB is an innovative IP telephone for entry-level usage, to provide you basic VoIP features and beautiful sound quality. - Page 3 ‐CALL LOG ............................17 ‐MMI SET ............................17 3‐3.N ............................18 ETWORK ‐WAN ............................... 18 ‐LAN..............................19 ‐SERVICE PORT ..........................20 ‐DHCP SERVER ..........................20 ‐SNTP ............................... 21 3‐4.VOIP............................... 21 3170IB VoIP Phone User Manual V2.0...
- Page 4 ‐CONFIG ............................30 ‐UPDATE............................31 ‐ACCOUNT............................31 ‐REBOOT ............................32 3‐7.SECURITY ............................32 ‐MMI FILTER............................. 33 ‐FIREWALL............................33 ‐NAT ..............................34 ‐VPN..............................34 SAFETY NOTICES..........................35 3170IB VoIP Phone User Manual V2.0...
-
Page 5: Part One Before Using 3170Ib Voip Phone
JOYCE ČR, s.r.o., Venhudova 6, 614 00 Brno, ČR, IČ: 25317571, DIČ: CZ25317571, Tel.: +420 539 088 010 Fax: +420 539 088 000, E-mail: jo yce@joyce.cz, Web: www.joyce.cz, www.joyce-energie.cz Part One Before Using 3170IB VoIP Phone 1-1. Package Content Phone package should include below items... -
Page 6: How To Assemble The Phone
It is advisable to choose Way No.2 when you assemble the phone with wall mount brackets - Connect power adapter, power on the phone - (Optional) If you has a headset, you could connect headset to realize headset function 3170IB VoIP Phone User Manual V2.0... -
Page 7: General Appearance Of 3170Ib Phone
JOYCE ČR, s.r.o., Venhudova 6, 614 00 Brno, ČR, IČ: 25317571, DIČ: CZ25317571, Tel.: +420 539 088 010 Fax: +420 539 088 000, E-mail: jo yce@joyce.cz, Web: www.joyce.cz, www.joyce-energie.cz 1-3. General Appearance of 3170IB Phone - LCD Display WAN Mode Date and Time 3170IB VoIP Phone User Manual V2.0... -
Page 8: Key Definitions
Digital, star and pound keys are also used for setting and 0 - 9, *, # call process. Function keys , functions as per silk print Menu: enter the main menu Transfer: used for blind transfer, attended transfer and half attended transfer 3170IB VoIP Phone User Manual V2.0... -
Page 9: P Art Two Phone Interface Operation
Speaker: activate/deactivate hands-free function ial:dial a new number or redial previous outgoing c all. Speed dial: make speed dial calls saved in them M1-M5 Used to enable or disable Mute function art Two Phone Interface Operation 3170IB VoIP Phone User Manual V2.0... -
Page 10: Joyce Čr, S.r.o., Venhudova 6, 614 00 Brno, Čr, Ič: 25317571, Dič: Cz25317571, Tel.: +420 539 088
JOYCE ČR, s.r.o., Venhudova 6, 614 00 Brno, ČR, IČ: 25317571, DIČ: CZ25317571, Tel.: +420 539 088 010 Fax: +420 539 088 000, E-mail: jo yce@joyce.cz, Web: www.joyce.cz, www.joyce-energie.cz Overview of 3170IB VoIP phone LCD Menu and Sub Menus 【... -
Page 11: Manage Contact Lists
Press 【DEL】to delete 2-4. Make a Call You could make regular calls or point to point calls with 3170IB Note: All numbers would be dialed out from SIP1 as default. If you would like to dial out with SIP2, you need to set corresponding dial rules. -
Page 12: Redial A Number
】 to make conference call 2-8. Transfer a Call There are three ways to transfer a call - Performing a Blind Transfer Note: Under this mode, the call would be transferred to the transferee without prior notice 3170IB VoIP Phone User Manual V2.0... -
Page 13: Performing A Half Attended Transfer
# Before completing the transfer, you could talk to the transferee, to see if he/she would like to answer. Press Transfer soft key if you get positive response. Otherwise, hang up the phone 3170IB VoIP Phone User Manual V2.0... -
Page 14: Forward A Call
Press one speed dial key M1-M5 Press 【PH No./Edit】, do corresponding name and number configuration Press 【 】to Save After above settings, you could press the speed dial key, pick up handset or press【 】to dial out 3170IB VoIP Phone User Manual V2.0... -
Page 15: Voice Mail Function
You could do corresponding Add/Edit/Delete settings according to LCD display 2-14. Reject a Call When there is an incoming call, you could press 【ESC/REC 】to reject. It would be forwarded to your voice mail if you have configured voice mail. 3170IB VoIP Phone User Manual V2.0... -
Page 16: Part Three Web Interface Operation
Part Three Web Interface Operation You could get access to web configuration menu of 3170IB by inputting the phone’s IP address to Web Browser Address Field. As the phone would obtain its IP automatically, by pressing 【Local IP/DEL】, you could see the phone’s IP address. -
Page 17: 3-2.Basic
This is a quick guide for phone configuration. You could select Static IP/DHCP/PPPoE MODE. Then do corresponding configuration – SIP account & network, as you desired. -CALL LOG Show outgoing call log of the phone -MMI SET You could select LCD display language and set greeting messages here 3170IB VoIP Phone User Manual V2.0... -
Page 18: 3-3.Network
Choose Network of the left column to do network configuration. Web would show as below -WAN You could view current network mode of the phone on this page If you choose Static: You could set network IP address, gateway, DNS etc. here 3170IB VoIP Phone User Manual V2.0... -
Page 19: Lan
After above settings, you could switch Static/ DHCP/ PPPoE mode from phone unterface. Press number key 1 for sevaral seconds to switch to Static Mode, number key 2 is for DHCP mode, while number key 3 is for PPPoE Mode. -LAN You could view current LAN status and do corresponding settings. 3170IB VoIP Phone User Manual V2.0... -
Page 20: Service Port
RTP Initial Port: To configure RTP initial port. It would be obtained automatically RTP Port Quantity: To configure maximum quantity of RTP port. Default is 200 -DHCP SERVER You could set DHCP Lease Table here. 3170IB VoIP Phone User Manual V2.0... -
Page 21: Sntp
You could set daylight time according to web indication You could also set time and date of the phone manually, instead of setting SNTP. 3-4.VOIP Choose VOIP of the left column to do VoIP configuration. Web would show as below. 3170IB VoIP Phone User Manual V2.0... -
Page 22: Sip
Note: For basic usage of SIP, you just need to configure Server Address, Account Name, Password and Phone Number. After above settings, choose Enable Register. Then click Apply to submit settings. -IAX2 You could do IAX2 configuration here 3170IB VoIP Phone User Manual V2.0... - Page 23 Voice Mail Number: Because phone keypad could not input letters when you try to get access to voice mail box, you could set a number in this field, which would stands for Voice Mail Text Refresh Time: Set refresh time as you desired Choose Enable Register/Enable G.729, then click Apply to submit 3170IB VoIP Phone User Manual V2.0...
-
Page 24: Stun
STUN Server Addr/STUN Server Port/STUN Effect Time: Set corresponding items. Click APPLY to submit Set Sip Line Enable Stun Choose your desired SIP and click Load Choose Use Stun, then click APPLY to submit -DIAL PEER You could add/modify/delete dial peer here 3170IB VoIP Phone User Manual V2.0... - Page 25 SIP 1 is 0.0.0.0 while SIP 2 is 255.255.255.0. If left empty, the phone would call out from SIP 1 as default. Port: Default is 5060 Alias: You could do alias configuration here. There are 4 types as below. If there is no configuration, no alias 3170IB VoIP Phone User Manual V2.0...
- Page 26 Call Mode: You could choose your desired call mode, SIP or IAX2 Suffix: You could set suffix for the dial number, For example, phone number is 1T (T stands for whatever number with any length), suffix is 3 3170IB VoIP Phone User Manual V2.0...
-
Page 27: 3-5.Phone
Dial Peer Option: Select the dial peer you would like to delete/modify. Then click Delete/Modify to do corresponding configuration 3-5.PHONE Choose PHONE of the left column to do phone configuration. Web would show as below: -DSP Set DSP configuration as you desired 3170IB VoIP Phone User Manual V2.0... -
Page 28: Call Service
Black List: You could add black list (the number you don’t want to receive phone call from) or delete black list here Limit List: You could add limit list (the number you don’t want the phone to dial out) or delete limit list here 3170IB VoIP Phone User Manual V2.0... -
Page 29: Phone Book
You could do configuration of 5 memory keys here Name: Input name for the corresponding phone number User ID: Input the phone number that you would like to store for corresponding Name and memory key 3170IB VoIP Phone User Manual V2.0... -
Page 30: 3-6.Maintenance
You could see and configure update settings according to your needs -CONFIG You could save/clear configuration by clicking corresponding buttons as web indication Note: Clear Configuration means to reset the phone to default status. 3170IB VoIP Phone User Manual V2.0... -
Page 31: Update
JOYCE ČR, s.r.o., Venhudova 6, 614 00 Brno, ČR, IČ: 25317571, DIČ: CZ25317571, Tel.: +420 539 088 010 Fax: +420 539 088 000, E-mail: jo yce@joyce.cz, Web: www.joyce.cz, www.joyce-energie.cz -UPDATE You could update firmware through Web or FTP, following corresponding indication on web page -ACCOUNT 3170IB VoIP Phone User Manual V2.0... -
Page 32: Reboot
Account Option: You could delete or modify the saved account here -REBOOT You could reboot the phone by clicking Reboot button 3-7.SECURITY Choose SECURITY of the left column to do security configuration. Web would show as below 3170IB VoIP Phone User Manual V2.0... -
Page 33: Mmi Filter
Firewall Type: You could select firewall type and apply Firewall Input/Output Rule Table: Yo could see the set rules here Firewall Set: You could set firewall according to your needs Rule Delete: You could choose the set input/output rule and delete 3170IB VoIP Phone User Manual V2.0... -
Page 34: Nat
NAT Table Option: You could set NAT following web indication NAT Table: You could see the added NAT DMZ Config: Click to enter DMZ configuration interface -VPN VPN IP: Display the phone’s VPN IP 3170IB VoIP Phone User Manual V2.0... -
Page 35: Safety Notices
Don’t expose your product to dust, dirt, sand, food, or other inappropriate materials. Extreme heat or cold Avoid temperatures below -10°C/14°F or above 45°C/113°F. Cleaning solutions To clean your product, use only a dry soft cloth. Don’t use alcohol or other cleaning solutions. 3170IB VoIP Phone User Manual V2.0... - Page 36 Don’t try to dry your product in a microwave oven. The ground Don’t drop your product. Vogtec Technology Co., Ltd Office Add.: 5th Floor, Bldg. 1, Software Park,Keji Zong 2 Rd., High-Tech Zone, Nan Shan District, Shenzhen, 518057, China Tel: +86-755-86168442 Fax: +86-755-86168417 3170IB VoIP Phone User Manual V2.0...
