5.8 Description of the front panel

On the front panel is located:
Caption Connector
PWR 2-pin
ETH RJ45
PORT1 RJ45
PORT2 RJ45
USB USB-A Host
I/O 3-pin
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de
Description
Connector for the power supply adapter.
Connector for connection into the local computer network.
Connector for expansion port RS232, RS458/422, MBUS,
ETHERNET or CNT.
Connector for expansion port RS232, RS485/422, MBUS,
WIFI, WMBUS or SDH.
Connector for connection of USB devices to the router. Sup-
ports devices with PL-2303 and FTDI USB/RS232 converters.
Connector for connection of the binary input and output.
Table 4: Front panel description

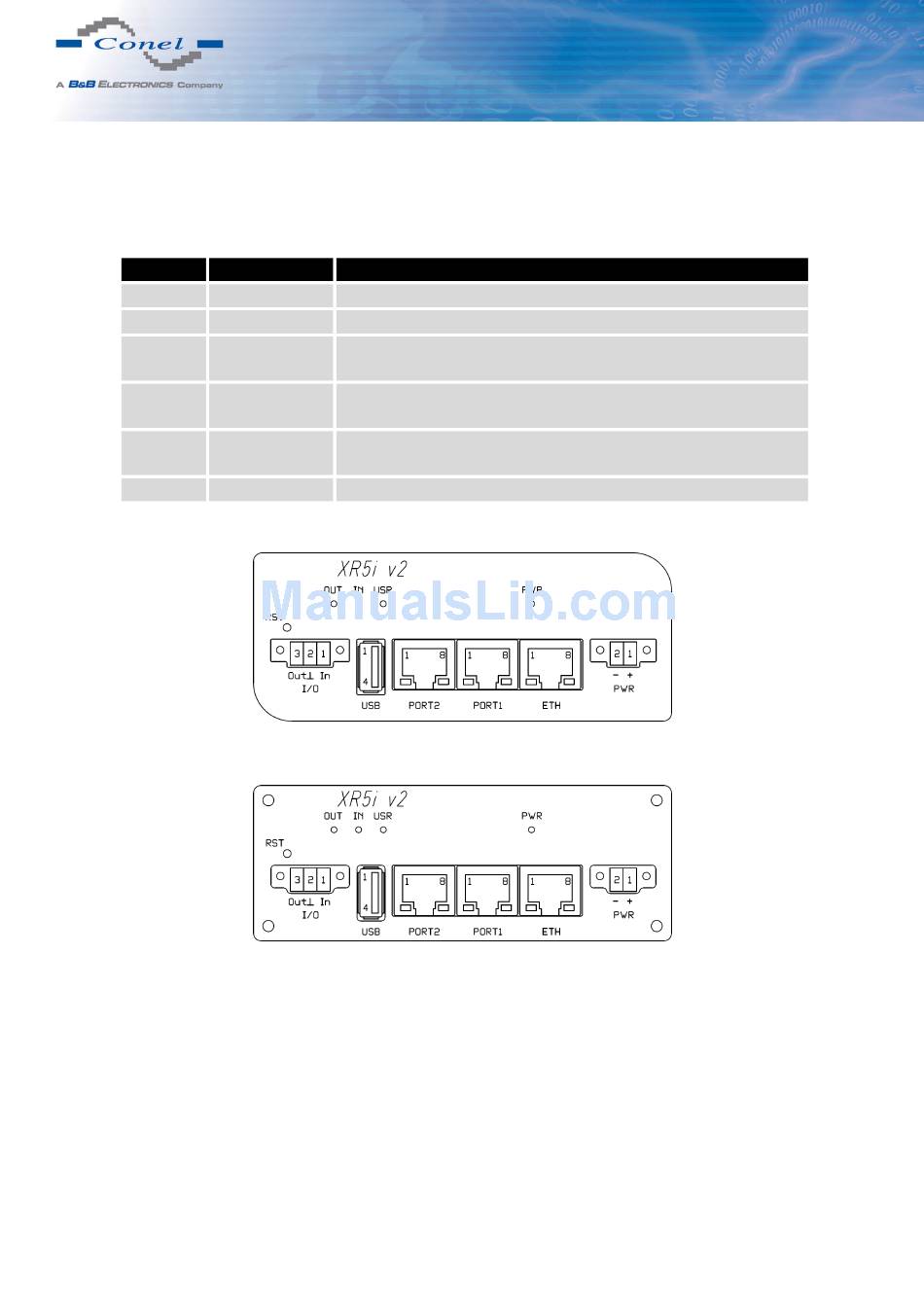

Figure 14: Front panel XR5i v2F
Figure 15: Front panel XR5i v2F SL
11
5. ROUTER DESIGN
