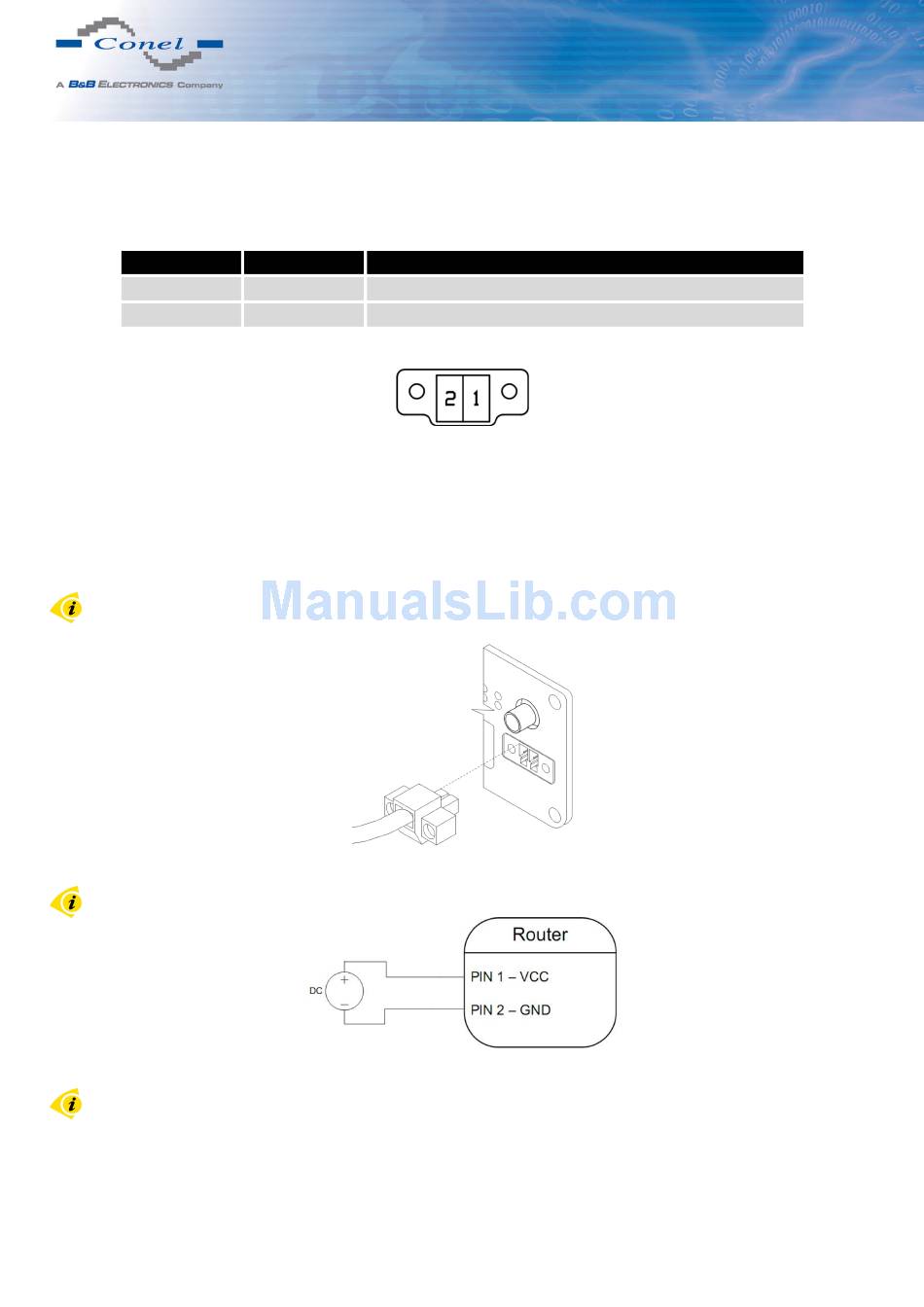

5.8.2 Power connector PWR
Panel socket 2-pin.
Pin number
1
2
Power supply for router is required between +10 V to +30 V DC supply. Protection against
reversed polarity without signaling is built into the router.
The power consumption during receiving is 1,6 W. The peak power consumption during
data sending is 5,5 W. However, values of consumption can be increased, if some expansion
port is eqquipped. For correct operation it is necessary that the power source is able to supply
a peak current of 1 A.
Connector on the power cable connects into the power connector on the router head and
tightens locking screws (see figure below).
Circuit example:
The positive pole VCC is marked by a red socket on the power.
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de
Signal mark
Description
VCC(+)
Positive pole of DC supply voltage (+10 to +30 V DC)
GND(-)
Negative pole of DC supply voltage
Table 6: Connection of power connector
Figure 16: Power connector
Figure 17: Connection of power supply connector
Figure 18: Connection of power supply
5. ROUTER DESIGN
13
