5.8 Description of the front panel
On the front panel is located:
Caption Connector
PWR 2-pin
ETH RJ45
PORT1 RJ45
PORT2 RJ45
ANT SMA
DIV SMA
GPS SMA
WIFI R-SMA
WMBUS SMA
USB USB-A Host
I/O 3-pin
SIM1 —
SIM2 —
LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de LUCOM GmbH * Ansbacher Str. 2a * 90513 Zirndorf * Tel. 09127/59 460-10 * Fax. 09127/59 460-20 * www.lucom.de
Description
Connector for the power supply adapter.
Connector for connection into the local computer network.
Connector for expansion port RS232, RS458/422, MBUS,
ETHERNET, CNT or SWITCH.
Connector for expansion port RS232, RS485/422, MBUS,
SWITCH, WIFI, WMBUS or SDH (only FULL version).
Connector for main antenna.
Connector for diversity antenna.
Connector for GPS antenna. It can be replaced with connector
for WIFI or WMBUS antenna.
Connector for WIFI antenna. Only when router is equipped
with an expansion port WIFI.
Connector for WMBUS antenna. Only when it is equipped
with an expansion port WMBUS.
Connector for connection of USB devices to the router. Sup-
ports devices with PL-2303 and FTDI USB/RS232 converters.
Connector for connection of the binary input and output.
Holder for the first SIM card.
Holder for the second SIM card (only FULL version).
Table 5: Front panel description

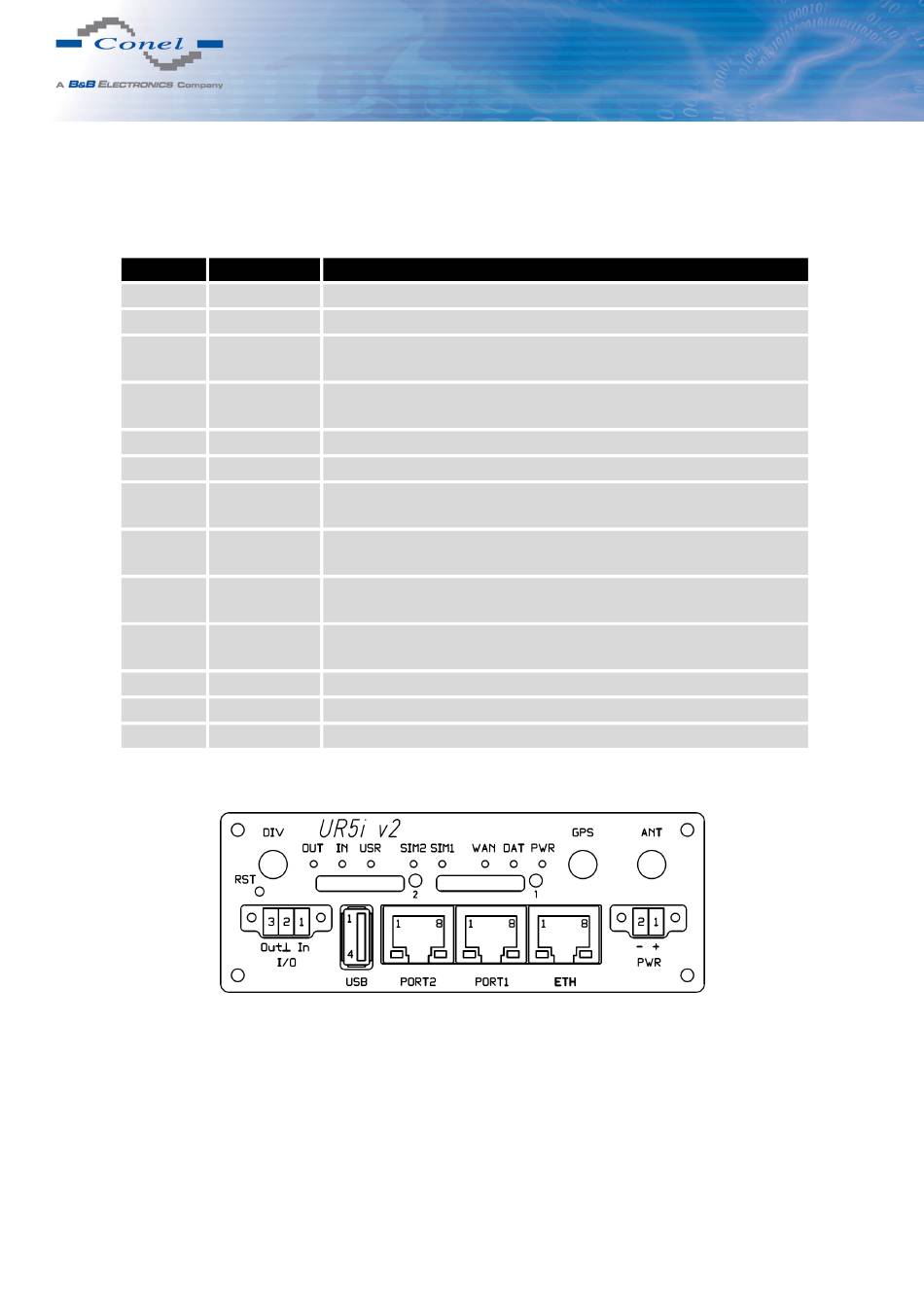

Figure 20: Front panel UR5i v2F SL
