Appendix A: Controlling the SixtyFour from MotorMate

Installation and Connections

RS-232 Connections

Use a CM Labs CAB912 cable or a standard 9 pin male
to female cable. The cable has a 1 to 1 pinout. Connect
the cable from the MotorMate rear panel RS-232 connec-
tor to the RS-232 connector on the CM Labs SixtyFour
Studio Router. If you are using only 1 SixtyFour Router,
move on to the Audio Connections section.

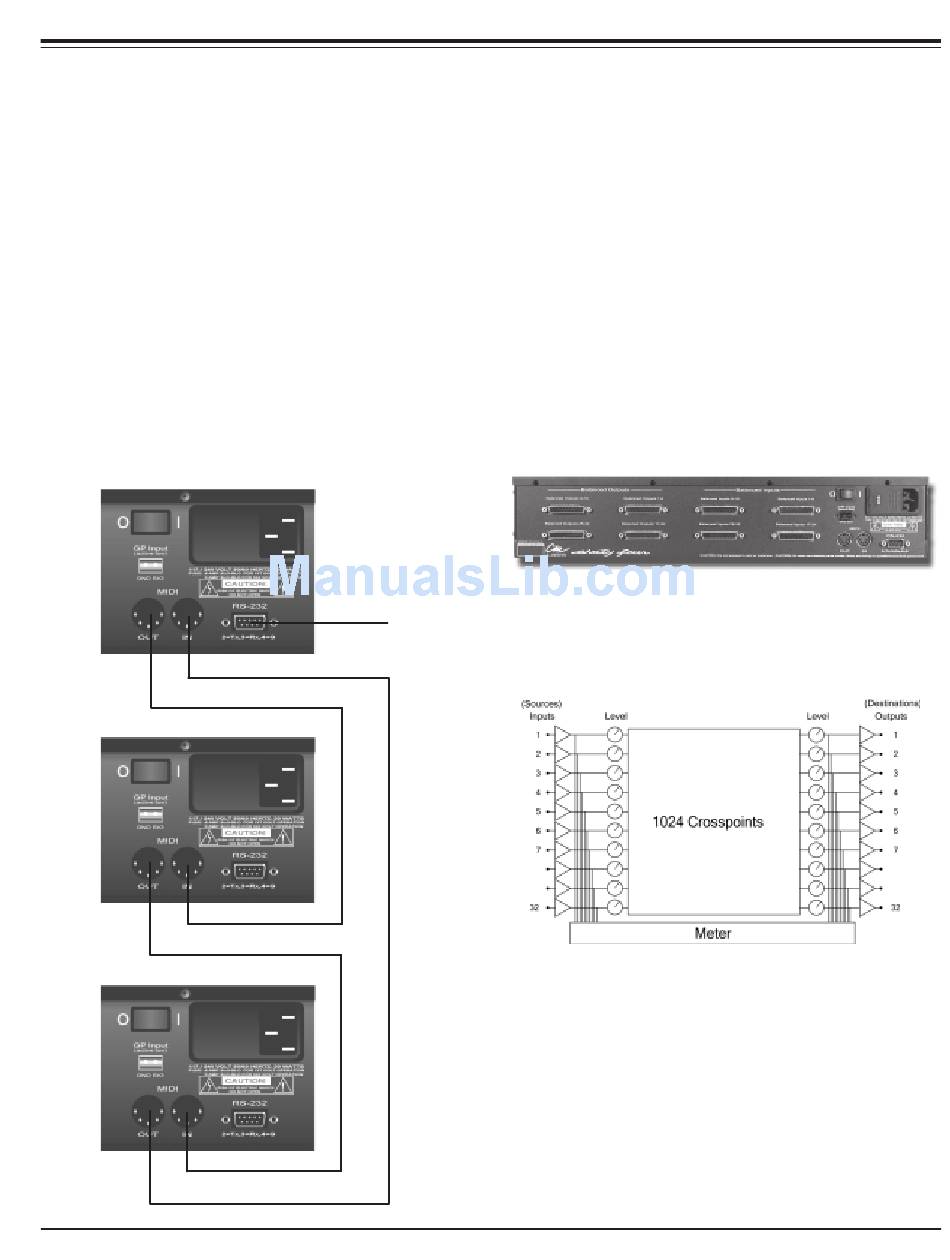

If using more than 1 SixtyFour Router, connect the MIDI
output of Router 1 to the MIDI input of Router 2 and so on
in a "daisy chain" as shown in the diagram below. Con-
nect the MIDI output of the last Router in the chain to the
MIDI input of Router 1.
MotorMate will control all 3 Routers over the single RS-
232 connection.
SixtyFour router (Router 1)
SixtyFour router (Router 2)
SixtyFour router (Router 3)
Page 28 CM Labs MotorMate Owner's Manual
After you have connected one or more SixtyFours to
MotorMate, you must check to see that each one is set to
SLAVE mode.
Step 1.) With the SixtyFour unlocked (Save and Route
LED's not blinking) push in the Level and Meter switches
on the SixtyFour to enter Utility mode.
Step2.) Push in the SixtyFour Encoder twice, and the
master/slave status appears. It shows as either NST
(master) or SLV (slave) in numeric display. Simply turn
the rotary control knob until it shows SLV (slave).
Step 3.) Push in the Level and Meter switches on the
SixtyFour to exit Utility mode.
Repeat steps 1 through 3 for any additional SixtyFours
present.

Audio Connections

to MotorMate.
The SixtyFour rear panel has 4 DB25 connectors for the
32 Source inputs and 4 DB25 connectors for the 32
Destination outputs. Mono, Stereo, Surround or other
multi channel devices can be interfaced.
Connect the audio outputs of external devices to the
Source Inputs on the SixtyFour. Connect the SixtyFour's
Destination Outputs to the inputs of external devices. You
may connect your audio devices to the SixtyFour by
several methods.
Devices equipped with DB25 connectors:
Use standard DB25 to DB25 audio snakes. Connect the
snake to the SixtyFour rear panel and tighten the screws
included with the snakes. Connect the other end to the
DB25 equipped device and tighten the screws.
SixtyFour Audio Block Diagram
