Mode; Tool; Capture; Separate - CM Labs Workstation Console Owner's Manual

Edit and System Controls

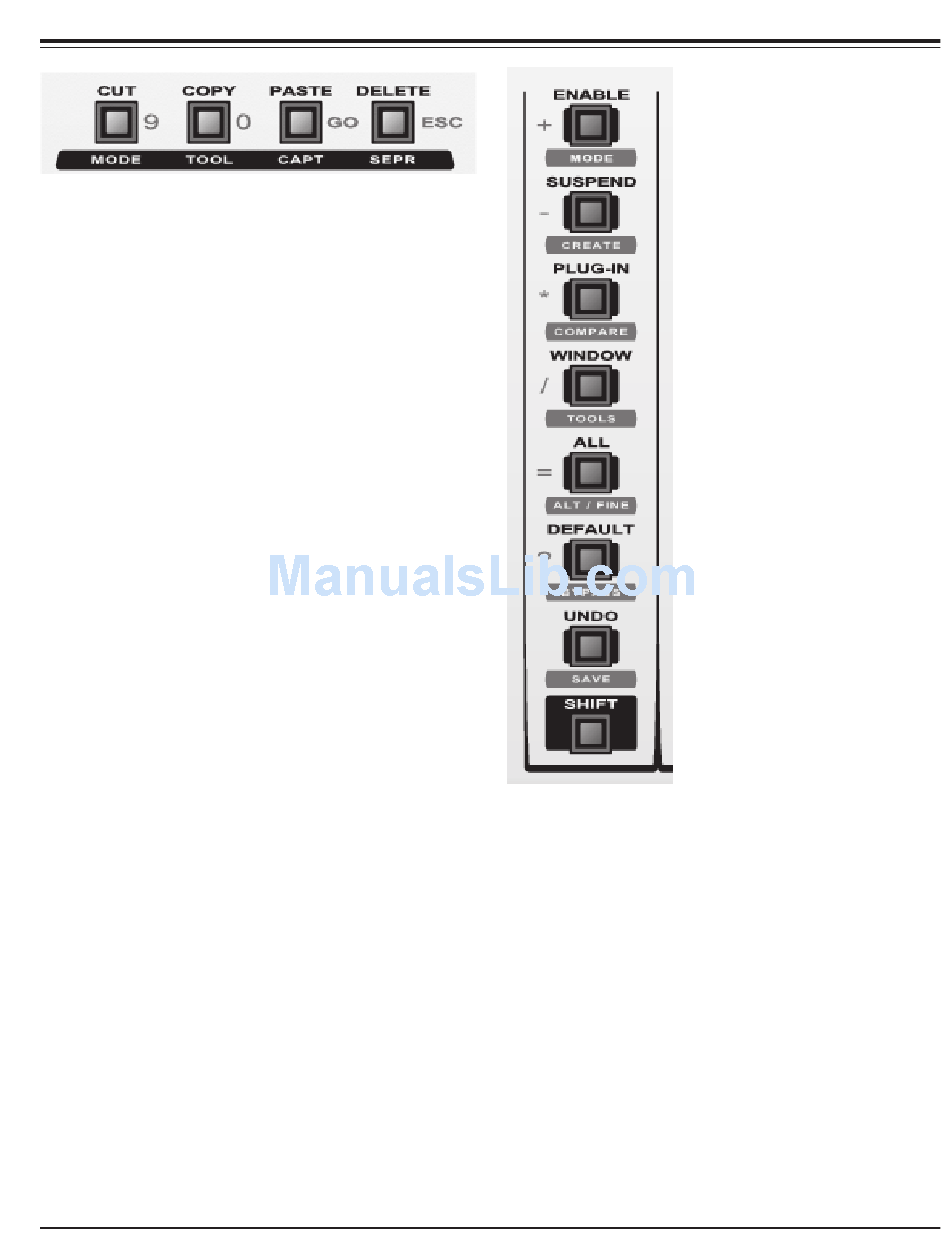

MODE

Press and hold SHIFT, then press the MODE switch to
cycle through the 4 edit modes: Shuffle, Slip, Spot, and
Grid. These modes are described in detail in the Pro-
Tools owners manual.

TOOL

Press and hold SHIFT, then press the TOOL switch to
cycle through the 6 edit tools: Zoom, Scrub, Trim, Select,
Grab, Pencil. These tools are described in detail in the
ProTools owners manual.

CAPTURE

Press and hold SHIFT, then press the CAPTURE switch.
This will define a selection as a new region and add it to
the Regions List.

SEPARATE

Press and hold SHIFT, then press the SEPERATE
switch. This will define a selection within an existing
region and separates it from adjacent material.
Page 24 CM Labs MotorMate Owner's Manual
undoing. If the UNDO LED goes off, then the session is
unaltered. When this LED is blinking, it means that the
redo option is available. Press the UNDO switch to redo
the last edit operation.
SAVE
When this LED is lit, it means that the current session
has been changed in some way. Press the SAVE switch,
and the SAVE LED will flash as if to ask "are you sure?"
Press the SAVE switch a second time to save the ses-
sion file. The SAVE LED will turn off. While the SAVE
LED is flashing, you can press the ESC switch to abort
the save, and the SAVE LED will light solid again.
DEFAULT
When the lower panel "default" switch is active, the
SELECT switches are used to set faders, pans and sends
to their default values.
SHIFT
Generally speaking, SHIFT is
used to add things to a selection
of controls, channels, or tracks.
For example, press and hold
SHIFT down and then press
several channel SELECT
switches. All the SELECT
switches that were pressed will
then have their LED's lit to show
that they are all selected. You
could think of the SHIFT switch
as the SHIFT/add switch.
Additionally, holding down the
SHIFT switch will cause the
bottom row of the LCD to display
audio meters for the 8 currently
viewed channels.
The SHIFT switch must be held
down to access any of the
functions labeled below the
switches.
UNDO
When this LED is lit, it means
that the current session has been
changed in some way and that
the undo option is available.
Press the UNDO switch to undo
the last edit operation. If the
UNDO LED remains lit, it means
that more "undo's" are needed to
return to the original state. Press
the UNDO switch to continue
