Suspend or Enable Groups
Press the GROUP switch, and the GROUP LED will
change. With the GROUP LED lit, the groups are active.
When the GROUP LED is off, the groups are inactive.

Query Groups

To show the Group ID, press and hold down the SHIFT
switch first and then the GROUP switch, and the group
ID will be displayed on the bottom row of the LCD.
Rotary Pots and Multi Switches
Rotary Pots (8)
MULTI Switches (8)
Multi Mode LED's (8)
This section includes the 8 endless rotary pots, the View
Stick just to the right of the 8 rotaries, and the Rotary
Mode Display. This is a 2 digit, 7 Segment LED character
display. This section also includes the 4 Multi Mode
switches, 8 Multi Mode LED's, and the 8 MULTI switches
just below the rotary pots.
Controlling Pan and Stereo Balance
When the rotary display shows "P", the 8 rotaries are
controlling channel pans. The bottom row of the LCD will
indicate channel pan setting. Push in the View Stick, and
the rotary display shows "Pr" to indicate that the rotaries
are controlling channel pan right for stereo channels. If a
channel is not stereo, the LCD lower row will be blank for
that channel.

Defaulting Pans to Center

Press and hold down the DEFAULT switch (third switch
up to the left of the faders) and then press any of the
MULTI switches below the rotaries.
To set all channel pans to center, hold down the ALL
switch (fourth switch up to the left of the faders), then
press and hold down the DEFAULT switch and press any
of the MULTI switches below the rotaries.
Page 14 CM Labs MotorMate Owner's Manual

Selecting Aux Sends

Press the View Stick up, and the Rotary Display will show
"SA" for send A. The bottom row of the LCD will indicate
channel aux level, and the pots then control the settings.
Push the View Stick up, and the Rotary Display will move
to "SB" for send B, "SC" for send C and so on.
When send E is selected, pushing up on the View Stick
will take you back to pan. You can also move from send
A back to pan by pressing down on the View Stick.

Flipping Sends to Faders

Press in on the View Stick, and the sends will be flipped
to the faders to make changes there. Press the View
stick a second time to return.

Send Mutes

The top Multi Mode switch toggles
between S-MUTE and PRE/PST.
When the S-MUTE LED is lit, the 8
MULTI Switches control the send mutes for the currently
displayed send. Pressing any of the 8 MULTI switches
will toggle the state of the send mute. When the LED is
on, the send is muted.

Send Pre/Post

Press the top Multi Mode switch to
toggle the PRE/PST LED on. When
the PRE/PST LED is lit, the 8 MULTI
switches control whether the send on that channel is pre
or post fader. When the LED is lit, the send is pre fader.

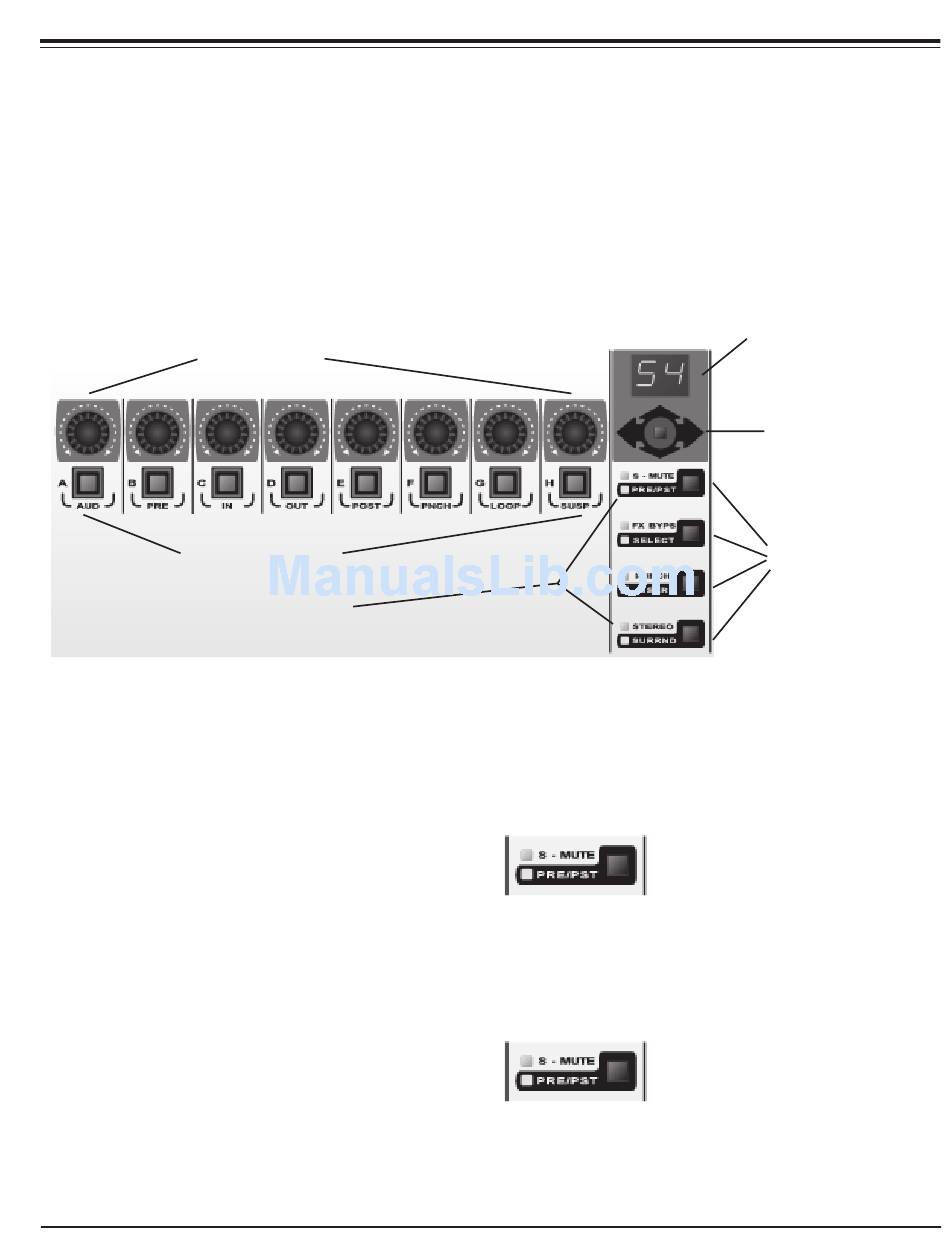

Rotary Mode Display
View Stick
Multi Mode Switches
