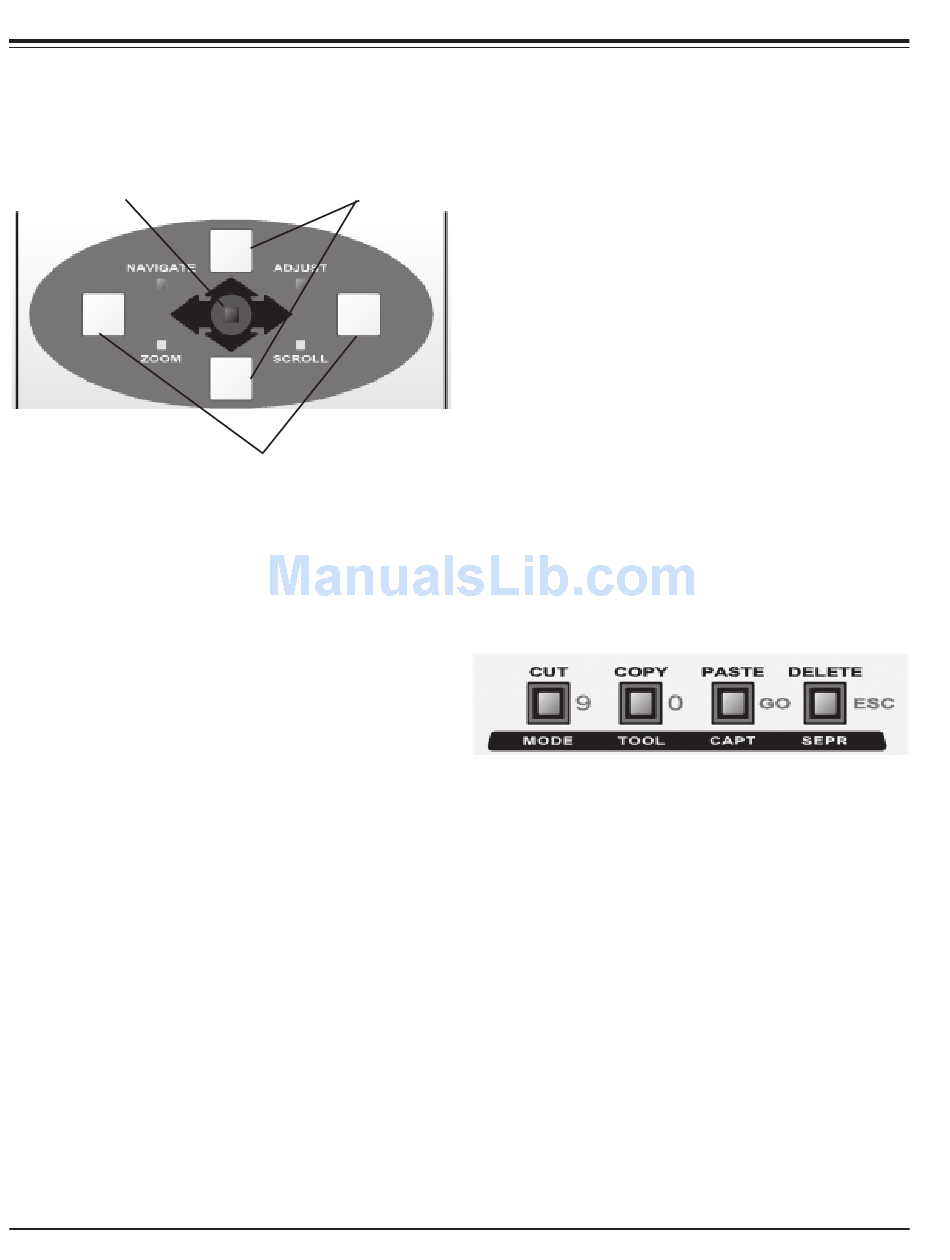

Zoom and Navigator Section

This section has 2 Track Navigator switches and 2 Time
Navigator Switches, and the Zoom Stick at the center.
The 4 mode LED's are labelled "navigate", "zoom",
"scroll" and "adjust".
Zoom Stick
Time Navigator Switches
Zoom Stick
Moving the Zoom Stick horizontally controls the expan-
sion or contraction of the horizontal (or time) axis in the
edit window. Moving the Zoom Stick to the left contracts
the time line, and moving it to the right expands the time
line.
Moving the Zoom Stick vertically controls the expansion
or contraction of the vertical (or amplitude) axis in the edit
window. Moving the Zoom Stick up expands the wave-
form, and moving it down contracts the waveform.
When the Zoom Stick is moved horizontally or vertically,
the ZOOM LED lights to show that zooming is taking
place. If none of the ZOOM LED's are on, then press any
control in the Zoom and Navigator section, and the
Software will update them properly.
Pressing in on the Zoom Stick toggles between the 2
Navigate modes which are Navigate and Adjust.

Track and Time Navigator Switches

Navigate Mode

When the NAVIGATE LED is lit, the Navigate switches
are in Navigate mode. Pressing the Track Navigator
switches moves the edit cursor up and down tracks in the
edit window. Press and hold SHIFT first, and then these
switches will add or subtract tracks to the cursor.
Pressing the Time Navigator switches moves the edit
cursor to the previous or next region boundary or sync
point. Press and hold SHIFT first, and then these
switches will select regions forward or backward.
Track Navigator Switches
Edit and System Controls
Press and hold the ALL switch, and then either of the
Time Navigator switches will center the currently se-
lected region in the edit window.

Adjust Mode

Press in on the Zoom Stick to toggle to Adjust mode. The
ADJUST LED will light.
Adjust Start of Edit Region
Press and hold the left Time Navigator switch and rotate
the Jog wheel.
Adjust End of Edit Region
Press and hold the right Time Navigator switch and
rotate the Jog wheel.
Adjust Region Position Retaining its Length
Press and hold both the left and right Time Navigator
switches and rotate the Jog wheel.
Changing or Adding Tracks to Selection
Pressing the Track Navigator switches moves the edit
cursor up and down tracks in the edit window.
Press and hold SHIFT first, and then these switches will
add or subtract tracks to the cursor.

Clipboard Switches

CUT, COPY, PASTE, DELETE
These 4 switches each have secondary functions as well.
When the SHIFT switch is held down these become
MODE, TOOL, CAPT, and SEPR controls.
CUT
Pressing the CUT switch removes the currently selected
edit region and places it in the clipboard.

COPY

Pressing the COPY switch makes a copy of the currently
selected edit region and places it in the clipboard.

PASTE

Pressing the PASTE switch takes the clipboard contents
and copies it to the selected tracks beginning at the edit
cursor location.

DELETE

Pressing the DELETE switch removes the currently
selected edit region, but does not place it in the clip-
board.
