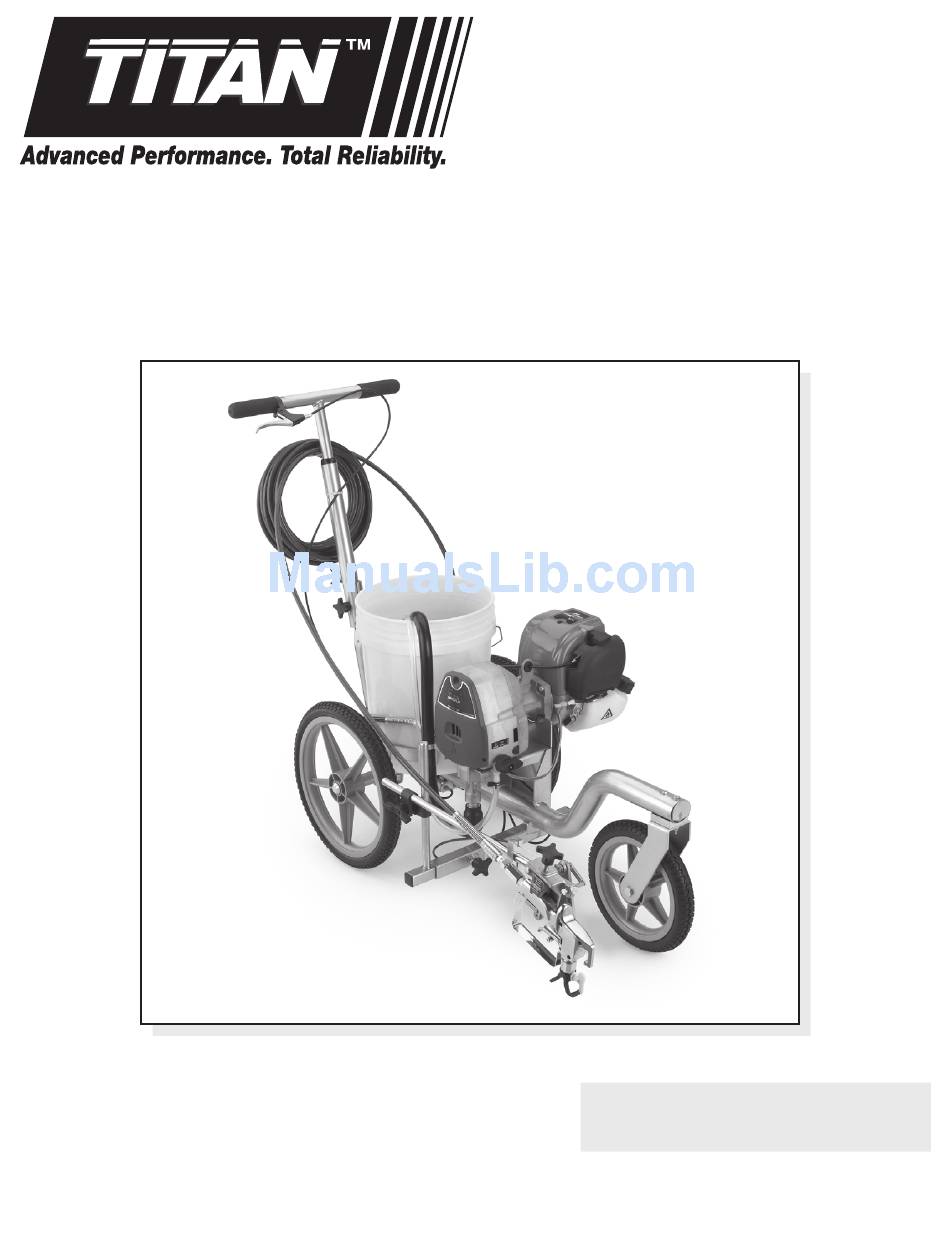

PowrLiner 550
Model Number
0290004
Register your product online at:
www.titantool.com
Proper registration will serve as proof of purchase in the event your
original receipt becomes misplaced or lost.
_ _ _ _ _ _ _ _ _ _
Serial Number
US Patent Nos. D550,328 D,550,329
SPEEFLO
Owner's Manual
Notice d'utilisation
Manual del Propietario
Do not use this equipment
before reading this manual!
NOTE: This manual contains important
warnings and instructions. Please
read and retain for reference.
© Titan Tool Inc. All Rights Reserved. Form No. 0293748D
0312

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPEEFLO PowrLiner 550 and is the answer not in the manual?

Questions and answers

Summary of Contents for Titan SPEEFLO PowrLiner 550

  • Page 1 Proper registration will serve as proof of purchase in the event your original receipt becomes misplaced or lost. _ _ _ _ _ _ _ _ _ _ Serial Number © Titan Tool Inc. All Rights Reserved. Form No. 0293748D • 0312 US Patent Nos. D550,328 D,550,329...
  • Page 2: Safety Instructions

    Plastic can cause static sparks. Never hang plastic to enclose spray area. Do not use plastic drop cloths when spraying flammable material. Fire extinguisher equipment shall be present and working. English © Titan Tool Inc. All rights reserved.
  • Page 3: Specifications

    • Be careful not to spill fuel when refueling. Fuel vapor or spilled fuel may ignite. If any fuel is spilled, make sure the area is dry before starting the engine. © Titan Tool Inc. All rights reserved. English...
  • Page 4: Table Of Contents

    * Pail not included. undesirable operating characteristics while using a gasoline that contains alcohol, or one that you think contains alcohol, switch to a gasoline that you know does not contain alcohol. English © Titan Tool Inc. All rights reserved.
  • Page 5: Operator Controls

    The Sureflo Valve is IMPORTaNT: Never operate unit for more than ten seconds without fluid. Operating activated manual by the this unit without fluid will cause unnecessary user. wear to the packings. © Titan Tool Inc. All rights reserved. English...
  • Page 6: Preparing To Paint

    Fluid will begin flowing 11. Unlock the gun by turning the gun trigger through the spray hose and out of the gun. lock to the unlocked position. English © Titan Tool Inc. All rights reserved.
  • Page 7: Pressure Relief Procedure

    Position the tip guard in the carbide is brittle and can be chipped. desired spraying position and tighten securely. NOTE: The arrow on the tip handle should be pointing in the forward direction for spraying. © Titan Tool Inc. All rights reserved. English...
  • Page 8: Changing A Spray Tip

    Operation section of this manual. 3. Re-tighten the bolts to secure 16. Store the sprayer in a clean, dry area. the caster in position. IMPORTaNT: Do not store the sprayer under pressure. English © Titan Tool Inc. All rights reserved.
  • Page 9: Special Cleanup

    16. Follow the “Pressure Relief Procedure” found in the ft./lbs. Operation section of this manual. 4. Replace the siphon tube and tighten securely. NOTE: If priming problems continue, you may need to replace the Sureflo valve. Contact Technical Service to order a new Sureflo Valve assembly. © Titan Tool Inc. All rights reserved. English...
  • Page 10: Maintenance

    Always contact the supplier of solvents for recommendations. 4. If you have any further questions concerning your TITAN Airless Sprayer, call TITAN: Technical Service (U.S.) ....... 1-800-526-5362 Spray gun Fax ..........
  • Page 11: Replacing The Prime/Spray Valve

    SPRAY to the 9:00 position as possible. Make sure the knob is pushed completely onto to the cam (the knob should cover the cam completely). © Titan Tool Inc. All rights reserved. English...
  • Page 12: Servicing The Fluid Section

    7. Install the dowel pin to connect the yoke to the piston. The piston may have to be moved up or down to align with the yoke. 8. Install the yoke screw and washer to secure the dowel pin. English © Titan Tool Inc. All rights reserved.
  • Page 13: Troubleshooting

    The material being sprayed is too viscous. Add solvent to the material according to the manufacturer’s recommendations. The unit lacks power. The pressure adjustment is too low. Take to an authorized service center. © Titan Tool Inc. All rights reserved. English...
  • Page 14: Consignes De Sécurité

    N’accrochez aucun plastique dans une zone de pulvérisation fermée. N’utilisez pas de toiles de protection en plastique quand vous pulvérisez une matière inflammable. Ayez un extincteur en bon état de fonctionnement à portée de main. Français © Titan Tool Inc. Tous droits réservés.
  • Page 15: Spécifications

    • L’essence est extrêmement inflammable et explosive dans certaines conditions. • Remplissez le réservoir de carburant dans une zone bien ventilée, moteur arrêté. Ne fumez pas et évitez toutes flammes © Titan Tool Inc. Tous droits réservés. Français...
  • Page 16: Description Générale

    Si vous observez un Pistolet de pulvérisation fonctionnement anormal lorsque vous utilisez de * Sceau non inclus. l’essence contenant de l’alcool, ou dont vous pensez qu’elle contient de l’alcool, remplacez-la par de l’essence sans alcool. Français © Titan Tool Inc. Tous droits réservés.
  • Page 17: Commandes De L'opérateur

    Sureflo position PRIME. sèche. Le soupape de Sureflo™ est IMPORTaNT : Ne jamais utiliser l’appareil plus de dix secondes s’il n’y a pas de activée manuellement par l’utilisateur. liquide. L’utilisation de l’appareil sans liquide peut user prématurément les garnitures. © Titan Tool Inc. Tous droits réservés. Français...
  • Page 18: Préparation Avant De Peindre

    7. Arrêter le pulvérisateur en appuyant et en tenant le commutateur d’arrêt du moteur jusqu’à ce que ce dernier s’arrête. NOTa : S’assurer que le buse ou le protège-embout ne soient pas installés. Français © Titan Tool Inc. Tous droits réservés.
  • Page 19: Peinture

    18. Arrêter le pulvérisateur en appuyant et en tenant le commutateur d’arrêt du moteur jusqu’à ce que ce dernier s’arrête. 19. Fixer le protège-embout et la buse au pistolet à pulvérisation. Se référer aux instructions plus loin dans cette section. © Titan Tool Inc. Tous droits réservés. Français...
  • Page 20: Procédure De Décompression

    Ne pas utiliser une aiguille ou un objet pointu pour désiré. 3. Resserrer les boulons afin nettoyer le buse. Le carbure de tungstène pourrait de fixer la roue pivotante en s’écailler. position. Français © Titan Tool Inc. Tous droits réservés.
  • Page 21: Nettoyage

    Pump Saver™. 15. Suivre la Procédure de décompression à la section Fonctionnement du présent manuel. 16. Ranger dans un endroit propre et sec. IMPORTaNT : Ne pas ranger l’appareil sous pression. © Titan Tool Inc. Tous droits réservés. Français...
  • Page 22: Nettoyage/Remplacer Du Filtre Du Pistolet

    4. Pour toute autre question relative à ce vaporisateur à amincie du filtre doit être correctement insérée, à défaut dépression, il suffit de communiquer avec Titan : de quoi le buse pourrait s’obstruer et le produit, cesser de Service à la clientèle (É.-U.)....1-800-526-5362 s’écouler du pistolet.
  • Page 23: Entretien Du Moteur

    Languette sur la came à la position 12 h NOTa : Positionner la came sur l’écrou hexagonal Languette afin que la languette sur le côté de la came soit le plus près possible de la position 12 h. © Titan Tool Inc. Tous droits réservés. Français...
  • Page 24: Maintenance De La Section Des Liquides

    Piston Lube (nº 314-480). Visser sur la partie inférieure (admission) du logement et serrer à l’aide de la clé à molette. Cela permet au joint inférieur de se mettre en position correcte. Français © Titan Tool Inc. Tous droits réservés.
  • Page 25 / joint refoulement NE PAS retirer les Bille joints du piston. Siège Soupape de sortie Joint torique Bille de entrée Ensemble de soupape de Joint torique Sureflo de entrée Siège de entrée © Titan Tool Inc. Tous droits réservés. Français...
  • Page 26: Dépannage

    Le produit vaporisé est trop visqueux. Ajouter du solvant au produit selon les recommandations du fabricant. L’outil n’est pas pouvoir. Le réglage de la pression est trop faible. Faire réparer dans un centre d’entretien agrée par Titan. Français © Titan Tool Inc. Tous droits réservés.
  • Page 27 Remarques: © Titan Tool Inc. Tous droits réservés. Français...
  • Page 28: Precauciones De Seguridad

    El plástico puede producir chispas estáticas. Nunca utilice plástico para cercar la zona de pulverización. No utilice cortinas de plástico mientras pulveriza material inflamable. Deberá contar con equipos extintores de incendios que funcionen correctamente. Español © Titan Tool Inc. Todos los derechos reservados.
  • Page 29: Especificaciones

    Reabastézcase de combustible en una zona bien ventilada y con el motor apagado. No fume ni permita que haya llamas ni chispas en el área de reabastecimiento de combustible ni donde se almacene la gasolina. © Titan Tool Inc. Todos los derechos reservados. Español...
  • Page 30: Descripción General

    * No se incluye el cubo. contiene alcohol, cambie a una gasolina que sepa que no contiene alcohol. Español © Titan Tool Inc. Todos los derechos reservados.
  • Page 31: Controles Del Operador

    “Ajuste de tensión del gatillo”·en la sección impedir que se pegue a causa de Válvula Mantenimiento de este manual. la presencia de materiales secos. de Sureflo El válvula de Quickflo™ se activa manualmente por el usario. © Titan Tool Inc. Todos los derechos reservados. Español...
  • Page 32: Preparación Para Pintar

    7. Apague el pulverizador presionando y manteniendo presionado el interruptor de apagado del motor hasta que el motor se apague. Español © Titan Tool Inc. Todos los derechos reservados.
  • Page 33: Pintura

    19. Acople la protección de la punta y la punta a la pistola pulverizadora. Consulte las instrucciones que se encuentran más adelante en esta sección. © Titan Tool Inc. Todos los derechos reservados. Español...
  • Page 34: Procedimiento Para Aliviar La Presión

    3. Vuelva a apretar los pernos para asegurar que la roldana esté en posición. Español © Titan Tool Inc. Todos los derechos reservados.
  • Page 35: Limpieza

    Operación de este manual. 15. Siga el “¨Procedimiento de alivio de presión” de la sección Operación de este manual. 16. Almacénela en un área limpia y seca. IMPORTaNTE: No almacene la unidad bajo presión. © Titan Tool Inc. Todos los derechos reservados. Español...
  • Page 36: Limpieza/Reemplazo De Filtro De Pistola

    Siempre pida recomendaciones al proveedor de NOTA: Nunca perfore el filtro con un instrumento solventes. afilado. 4. Si tiene otras preguntas referentes al rociador Titan, llame 5. Vuelva a colocar el filtro limpio, con el extremo aguzado a Titan: Servicio al cliente (EE.UU.) ....1-800-526-5362 primero, dentro del alojamiento de la pistola.
  • Page 37: Mantenimiento Del Motor

    12:00 NOTa: ubique la leva en la Lengüeta tuerca hexagonal de modo que la lengüeta en el lado de la leva esté lo más cerca posible de la posición de las 12:00. © Titan Tool Inc. Todos los derechos reservados. Español...
  • Page 38: Servicio A La Sección De Líquidos

    Así empujará el sello inferior hasta la posición correcta. 5. Alinee el pistón con la horquilla. Puede usarse un mazo de hule. Tenga cuidado de no dañar el pistón. Español © Titan Tool Inc. Todos los derechos reservados.
  • Page 39 Asiento de la válvula de salida Retén de la válvula de salida Junta tórica Bola de entrada Ensamblaje de la válvula de Sureflo Junta de entrada Asiento de entrada © Titan Tool Inc. Todos los derechos reservados. Español...
  • Page 40: Solución De Problemas

    Solución No funciona la unidad. Ajuste de presión demasiado bajo. Lleve a un centro de servicio autorizado por Titan. Conexiones defectuosas o sueltas. Inspeccione o lleve a un centro de servicio autorizado por Titan. El tanque de gasolina está vacío.
  • Page 41 Notas: © Titan Tool Inc. Todos los derechos reservados. Español...
  • Page 42: Parts Listings

    Parts List • Liste de pièces • Lista de piezas Main assembly • Vue d’ensemble • Ensamblaje principal © Titan Tool Inc. All rights reserved.
  • Page 43: Boîte D'engrenages

    Gas cap assembly Bouchon de réservoir à essence 0293926 Filter Filtre Filtro Couvercle de filtre Tapa de filtro 0293927 Filter cover * See separate listing * voir liste séparée * Consulte la lista separada © Titan Tool Inc. All rights reserved.
  • Page 44: Drive Assembly

    Drive assembly • Boîte d’engrenages • Ensamblaje de la caja de engranajes © Titan Tool Inc. All rights reserved.
  • Page 45 Screw Tornillo Conjunto de varilla de ajuste 0293941 Adjustment rod assembly Assemblage de la tige de réglage 0293943 Engine Moteur Motor 759-365 Fluid section repacking kit Trousse de tampon graisseurs Juego de empaquetaduras © Titan Tool Inc. All rights reserved.
  • Page 46: Cart Assembly

    Cart assembly • Ensemble de chariot • Ensamblaje de carro © Titan Tool Inc. All rights reserved.
  • Page 47 759-298 Wheel Roue Rueda 759-439 Washer Rondelle Arandela 0293516 Front axle Essieu Chaînette de mise à la terre Cadena de conexión a tierra 759-326 Grounding chain 759-440 Washer Rondelle Arandela 759-325 Screw Tornillo © Titan Tool Inc. All rights reserved.
  • Page 48: Gun Holder Assembly

    Screw Tornillo Spring holder (short) Support de ressort (court) Portaresorte (corto) 759-056 0509781 Spring Ressort Resorte Spring holder (long) Support de ressort (long) Portaresorte (largo) 759-057 860-936 Screw Tornillo 424-202 Lever Levier Palanca © Titan Tool Inc. All rights reserved.
  • Page 49: Spray Gun

    651-040 Tip seal retainer Joint Sello 759-369 Gun assembly Ensemble de pistolet Ensamblaje de pistola Filter, fine (white) Filtre, fin (blanc) Filtro, fino (blanco) 0515252 0043590 Spring Ressort Resorte Conector 0278357 Fitting Raccord © Titan Tool Inc. All rights reserved.
  • Page 50: Electrical Schematic

    égaré ou perdu votre reçu original. Registro del producto Registre su producto en línea en www.titantool.com. El registro adecuado servirá como un comprobante de compra en caso de que pierda el registro original. © Titan Tool Inc. All rights reserved.
  • Page 51: Accessories

    • 4” (10 cm) “Reserved” (Reservado) (palabra) Nº de pièce Description 314-481 Bouteille de 4 oz 314-480 Bouteille de 8 oz © Titan Tool Inc. All rights reserved.
  • Page 52: Limited Warranty

    Les responsabilités de Titan en vertu de cette garantie se limitent au remplacement ou à la réparation sans frais des pièces dont on aura, à la satisfaction raisonnable de Titan, démontré la défectuosité dans un délai de 24 mois après la date d’achat par l’Utilisateur.
