4
A manual shut-off valve must be installed where
Step
it will be accessible.
Assure that gas is turned off at the shut-off
valve.
Connect
• Remove all burner/hanger screws.
• Lift and remove all open top burners/hangers
Range
to reveal the gas inlet location at the back of
to Gas
the range.
• Pull the flexible metal gas line through the
back of the range and into the cooking area
until it meets the regular.
• Connect flexible metal connector to incoming
gas line pipe stub.
• Turn on gas and check for leaks:
–Use a liquid leak detector at all joints and
connections in the system.
30" Wide Models:
Rigid pipe is factory installed from the
regulator to the bottom rear of the range.
Flexible line may be used to connect to the
pipe stub.
5
S tep
Install the
Range
Backguard
A backguard is required for all installations.
• Insert the backguard into the guide
channels on the back of the range.
• Secure the backguard to the range at the
rear with the 4 sheetmetal screws provided.
• Install 2 or 3 screws through the front of
the range, depending on your model.
Installation
Professional Ranges

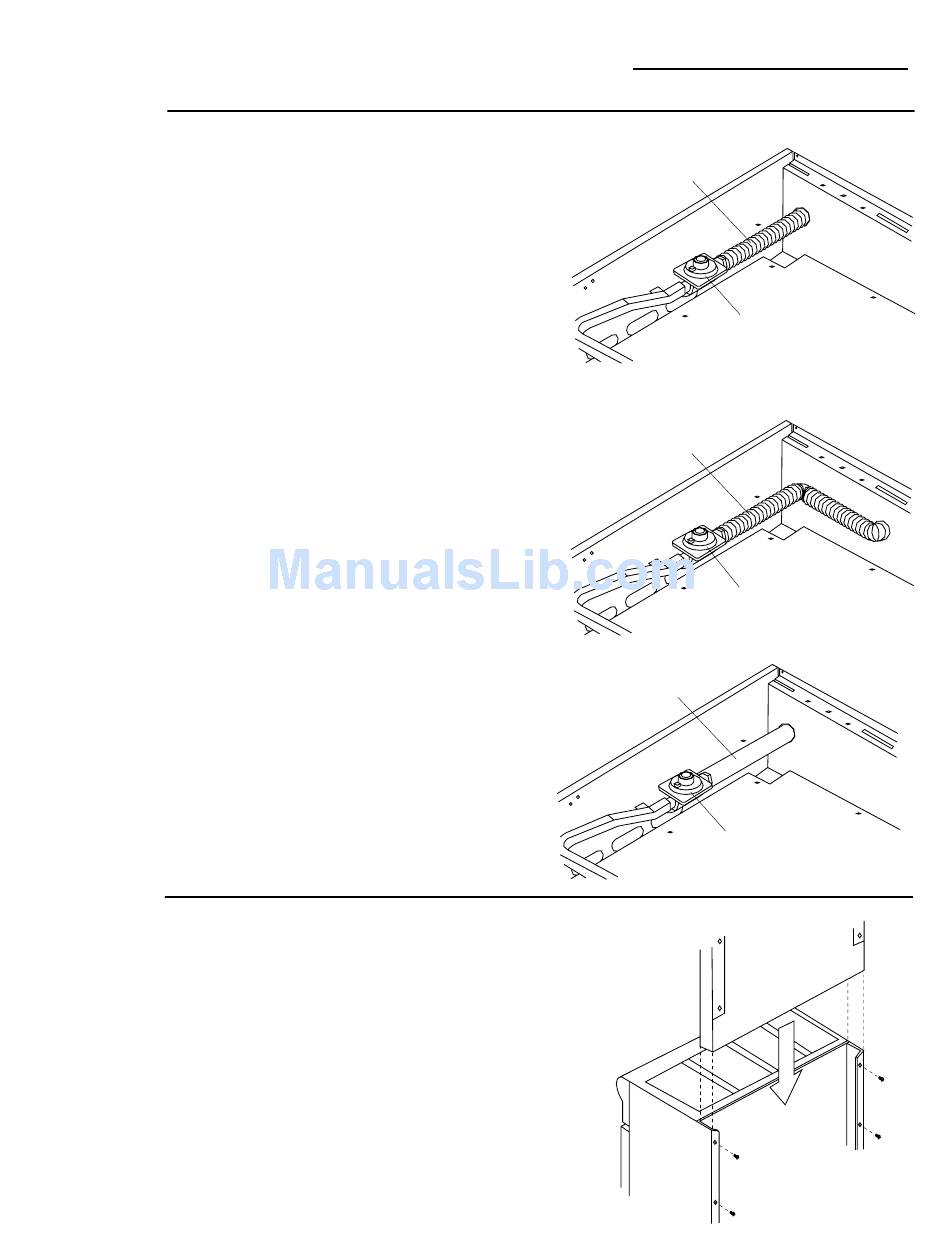

Flex or Rigid Gas
Line To Regulator
Regulator
36" Models
Flex or Rigid Gas
Line To Regulator
48" Models
Factory Installed
Rigid Gas Line
Regulator
30" Models
Regulator
11
