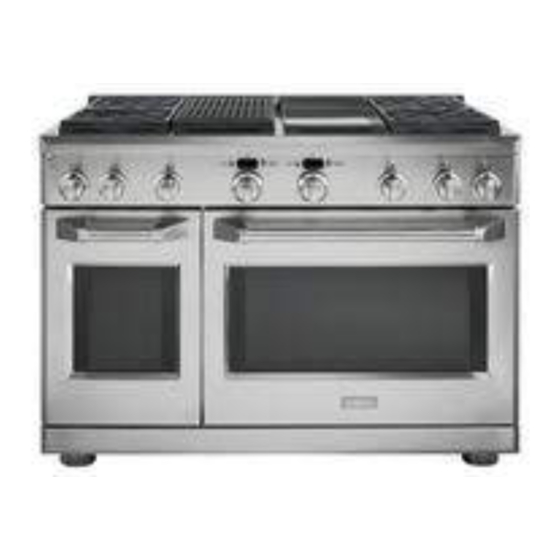

Monogram ZDP484NG Installation Instructions Manual
30", 36" and 48" professional ranges
Hide thumbs
Also See for ZDP484NG:
- Installation instructions manual (68 pages) ,
- Owner's manual (128 pages)
Table of Contents
Advertisement
Quick Links
31-10689
04-08 JR
Installation
Instructions
30", 36" and 48"
Professional Ranges
Cuisinières professionnelles
de 30'' (76 cm) 36" (91 cm)
et de 48" (121 cm)
Instructions d'installation
La section française commence à la page 24
Cocinas profesionales
de 30", 36" y 48"
Instrucciones de instalación
La sección en español empieza en la página 46
Advertisement
Table of Contents
Related Manuals for Monogram ZDP484NG
Summary of Contents for Monogram ZDP484NG
-
Page 1: Installation Instructions
Installation Instructions 30", 36" and 48" Professional Ranges Cuisinières professionnelles de 30’’ (76 cm) 36" (91 cm) et de 48" (121 cm) Instructions d’installation La section française commence à la page 24 Cocinas profesionales de 30", 36" y 48" Instrucciones de instalación La sección en español empieza en la página 46 31-10689 04-08 JR... -
Page 2: Before You Begin
• For other installations with a hood, refer to hood This appliance must be properly grounded. installation instructions for specific hood See ”Electric Supply.” clearances. For Monogram local service in your area, CAUTION: 1.800.444.1845. These ranges weigh up to 700 pounds. Some For Monogram Service in Canada, call disassembly will reduce the weight considerably. -
Page 3: Table Of Contents
ZDP364ND – 4 gas burners and griddle 48" Natural Gas Models: 36" LP Gas Models: ZDP484NG – 4 gas burners, grill and griddle ZDP366L – 6 gas burners ZDP486NR – 6 gas burners and grill ZDP364LR – 4 gas burners and grill ZDP486ND –... -
Page 4: Product Dimensions And Clearances
Design Information PRODUCT DIMENSIONS AND CLEARANCES 48" Range Models Universal Utility Locations 1” Countertop 47-7/8” Width to Cooking Surface 8” 14” 16” 35-1/4” Gas/ 6-1/2” Electric Electric 36-3/4” 2” 3-1/4” Height to 4-3/4” 2” 48” Toekick/leg 28-1/4” Height Depth to Front of Door 12”... - Page 5 Design Information PRODUCT DIMENSIONS AND CLEARANCES 36" Range Models Universal Utility Locations 1” Countertop 35-7/8” Width to Cooking Surface 4-5/8” 11-3/8” 13-3/8” 35-1/4” Gas/ 6-1/2” Electric 36-3/4” Electric Height 2” 3-1/4” 2” to 4-3/4” 36” 28-1/4” Toekick/leg Depth Height to Front of Door 12”...
- Page 6 Design Information PRODUCT DIMENSIONS AND CLEARANCES 30" Wide Range Models Universal Utility Locations 1” Countertop 29-7/8” Width to Cooking Surface 4-5/8” 7-3/8” 11-3/8” 35-1/4” Gas/ 6-1/2” Electric 36-3/4” Electric Height 2” 3-1/4” 2” to 4-3/4” 30” 28-1/4” Toekick/leg Height Depth to Front of Door 12”...
- Page 7 Design Information PRODUCT DIMENSIONS AND CLEARANCES 48", 36" and 30" Range Models 28-7/8” To Front Edge 10-1/2” 13/16” 30-36” Optional 12” Backsplash Accessories 3-3/16” Control Panel Depth 28-1/4” To 7” Control Panel Beveled Height Edge of Control 1” Panel Bullnose 27-1/2”...
-
Page 8: Tools And Materials Required
Installation Information TOOLS REQUIRED WB28K10553 HIGH ALTITUDE KIT For operation above 3,000 feet, order WB28K10553 Conversion Kit. This kit includes orifices for both LP and Natural gas operation. Drill and Appropriate Bits Saber Saw WB28K10554 DE-RATE KIT (For a small kitchen environment.) Adjustable Wrench Measuring Tape De-rate conversion kit for use with model... -
Page 9: Installation Preparation
Installation Preparation POWER SUPPLY LOCATIONS Gas Supply: Electric Supply: •The natural gas models are designed to operate These ranges must be supplied with 208/240 volt, at 5" water column pressure. For proper operation, 60 Hz., and connected to an individual, properly the pressure of the natural gas supplied to the grounded branch circuit protected by a circuit regulator must be between 7"... - Page 10 Installation Preparation 4-WIRE POWER CORD INSTALLATION 3-WIRE POWER CORD INSTALLATION NOTE: A 4-wire cord is connected to the range NOTE: A 4-wire cord is connected to the range at the factory. Use the following steps to change at the factory. Use the following steps to change an existing installation from a 3-wire cord back the range to a 3-wire cord.
-
Page 11: Step 1 Remove Packaging
Installation STEP 1 REMOVE PACKAGING CAUTION • Open oven door(s) and remove packaging. Remove shelf holding broiler pan, tape, literature Stand clear. The ends of the cut metal banding may package, shelf lubricant and probe. snap toward you. •Cut the metal banding. Lift the carton straight up. CAUTION •Locate the two runner strips from the top of the packaging. -
Page 12: Step 2, Move Range Indoors
Installation Preparation STEP 2 MOVE THE RANGE INDOORS 4 Slide the blade of the hand-truck beneath 1 Tilt the range forward on the skid. the front and back legs. Toekick 2 Lift the toekick out of the foam base. Insert Blade Under the Range Legs IMPORTANT: Place the hand-truck straps below the oven door handles. -
Page 13: Step 3 Install Anti-Tip Device
Installation STEP 3 INSTALL ANTI-TIP DEVICE • All ranges can tip. • BURNS or other SERIOUS INJURIES can result. • INSTALL and CHECK the ANTI-TIP bracket following these instructions. • Attach the Anti-Tip Brace onto the bottom To reduce the risk of tipping the range, the range of the range in the recessed area. -
Page 14: Step 4 Connect Range To Gas
Installation STEP 4 CONNECT RANGE TO GAS STEP 6 ROLL RANGE INTO POSITION WARNING WARNING Do not use a flame to check for gas leaks. The Anti-Tip Bracket must be properly installed to prevent tipping of the range. Failure to do so Assure that gas supply is turned off can cause serious damage or injury. -
Page 15: Step 7 Level The Range
Installation STEP 7 LEVEL THE RANGE STEP 7 LEVEL THE RANGE (cont.) WARNING REAR LEG ADJUSTMENT •Remove two screws from rear vent trim. Slide vent The range must be level and be supported trim forward, then lift up to remove. by the legs—not the wheels. -
Page 16: Step 9 Check Burners
Installation STEP 9 FINALIZE INSTALLATION CHECK BURNERS Place the burner grates over the burners. Check to be sure that burner heads and caps The grates should be seated and should not rock. are securely seated. The griddle is secured with screws. It is designed to be stationary and should not be removed. -
Page 17: Accessories
Installation ACCESSORIES—TOEKICK (provided) •Install the toekick after the range has been leveled. •Secure the top and bottom sections by tightening the 2 screws on each end. •Measure the distance between the floor and the bottom of range. •Push toekick against range leg until clip snaps to legs. -
Page 18: Accessory Installation
Owner’s Manual for future reference. Install 2 screws on each side. This kit provides for the installation of a 12" high Install 4 Wood backsplash for 30", 36" or 48" Monogram Screws Professional Ranges and Rangetops. Wall Support... -
Page 19: Tools And Materials Required
ZXADJB30PSS, ZXADJB36PSS, ZXADJB48PSS Accessory Installation ACCESSORIES—30" TO 36" ADJUSTABLE BACKSPLASH (not included) INSTALL THE WALL SUPPORT PANELS WARNING: WARNING: To prevent ignition of combustible materials, The wall support panels the entire back wall above the range must must be securely fastened to the wall. Failure to be protected by a backsplash constructed do so could result in damage or personal injury. - Page 20 ZXADJB30PSS, ZXADJB36PSS, ZXADJB48PSS Accessory Installation INSTALL COVER PANELS (cont.) INSTALL COVER PANELS See alternate method if side access is blocked. ALTERNATE METHOD: When side access is blocked • Hold the bottom cover over the bottom support • Install bottom cover over the bottom support while driving one screw into each side.
- Page 21 Installation Convert Natural Gas to LP Gas Operation Instructions Convert LP Gas to Natural Gas Operation CONVERT THE REGULATOR WARNING: This conversion must be performed by a qualified installer or gas supplier Disconnect all electrical power at the main circuit in accordance with the manufacturer’s instructions breaker or fuse box.
-
Page 22: Gas Conversion
Installation Instructions for Gas Conversion CHANGE BURNER ORIFICES (cont.) CHANGE GRILL ORIFICE (if present) IMPORTANT: Find your model number below. Read each orifice label to identify and install them in the Locate the 1–1/2” long Grill orifice. exact locations shown. —... -
Page 23: Gas Conversion
Installation Instructions for Gas Conversion CHANGE GRIDDLE ORIFICE ADJUST BURNER FLAMES (if present) Locate the 3/4” long Griddle orifice. Normally, burners do not need further adjustment. — — Select for your gas type. LP .047, NAT .076 Make adjustments only when necessary. A. - Page 24 NOTA: Mientras efectúa las instalaciones descriptas en este libro, deben utilizarse gafas o lentes de seguridad. Para servicio técnico local Monogram® en su área, llame al 1.800.444.1845. NOTA: La mejora de los productos es un esfuerzo continuo para General Electric.
