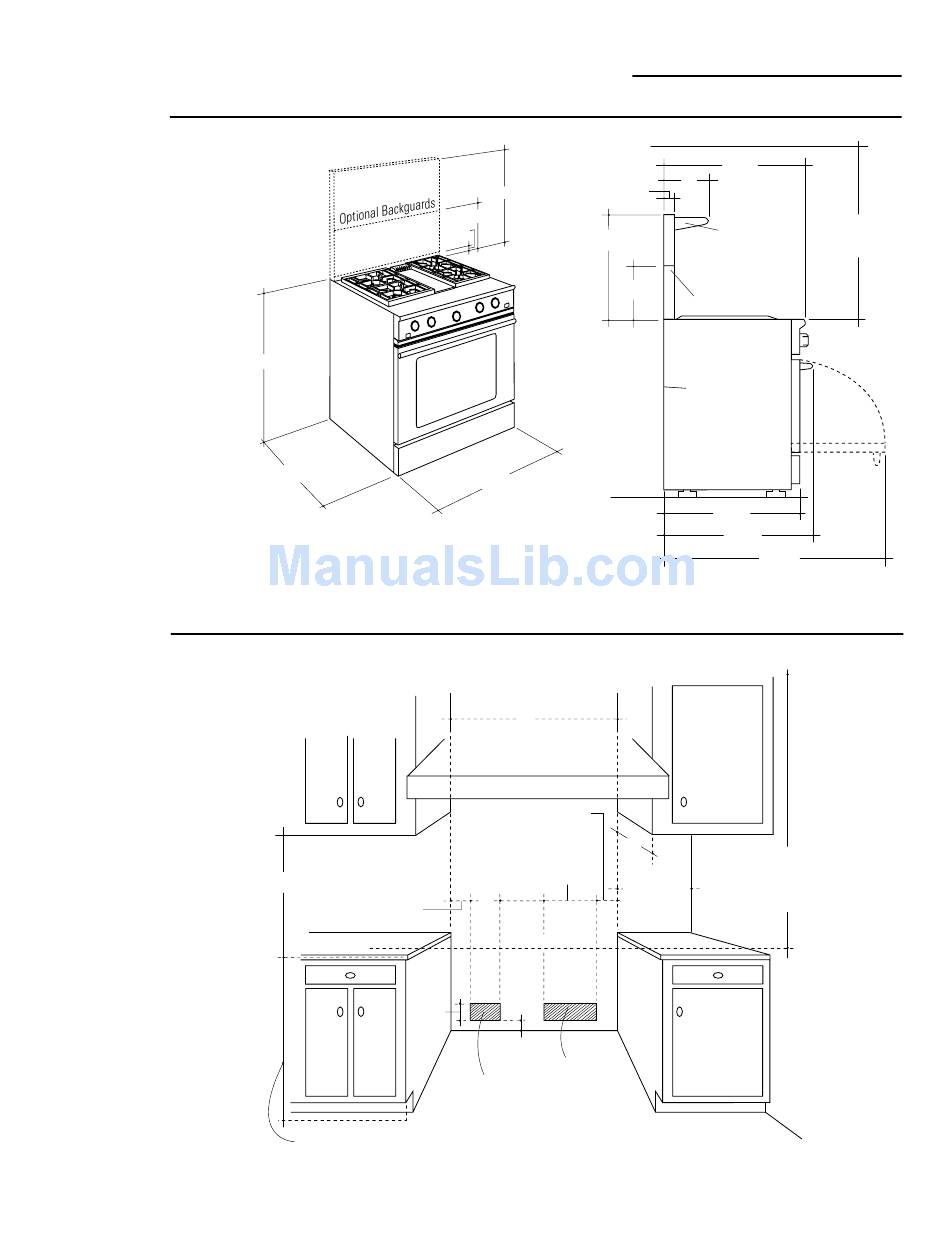

Product
Dimensions
& Clearances
35-1/4"-36-3/4"
26-3/4"
18" Min.
30"/36" Wide Models 4"
48" Wide Models 8"
3-1/4"
35-3/8" Max. for Counter Level
36-3/4" Max. with Range Leveling Legs Fully Extended
Design Information
3-1/4"
21-1/4"
9"
1-1/2"
21-1/4"
29-7/8"
30" Wide Range Models
30" Wide Range Hood
Or
36" Wide Range Hood
Or
48" Wide Range Hood
30"/36" Wide Models 4"
48" Wide Models 8"
30"/36" Wide Models 12"
48" Wide Models 16"
12"
Cooking Surface
3-1/2"
Electrical Supply
Gas Supply
Professional Ranges
27-3/8"
12"
High
Shelf
9"
Low Back
0" Clearance
26-3/4"
29-1/4"
43-7/8"
13"
Max.
36" Min. to
Combustible
12" Min. to
Material From
Combustible
Cooking Surface
Material
Each Side
36" Min.
to Combustibles
