Summary of Contents for Meyra 1.835
-

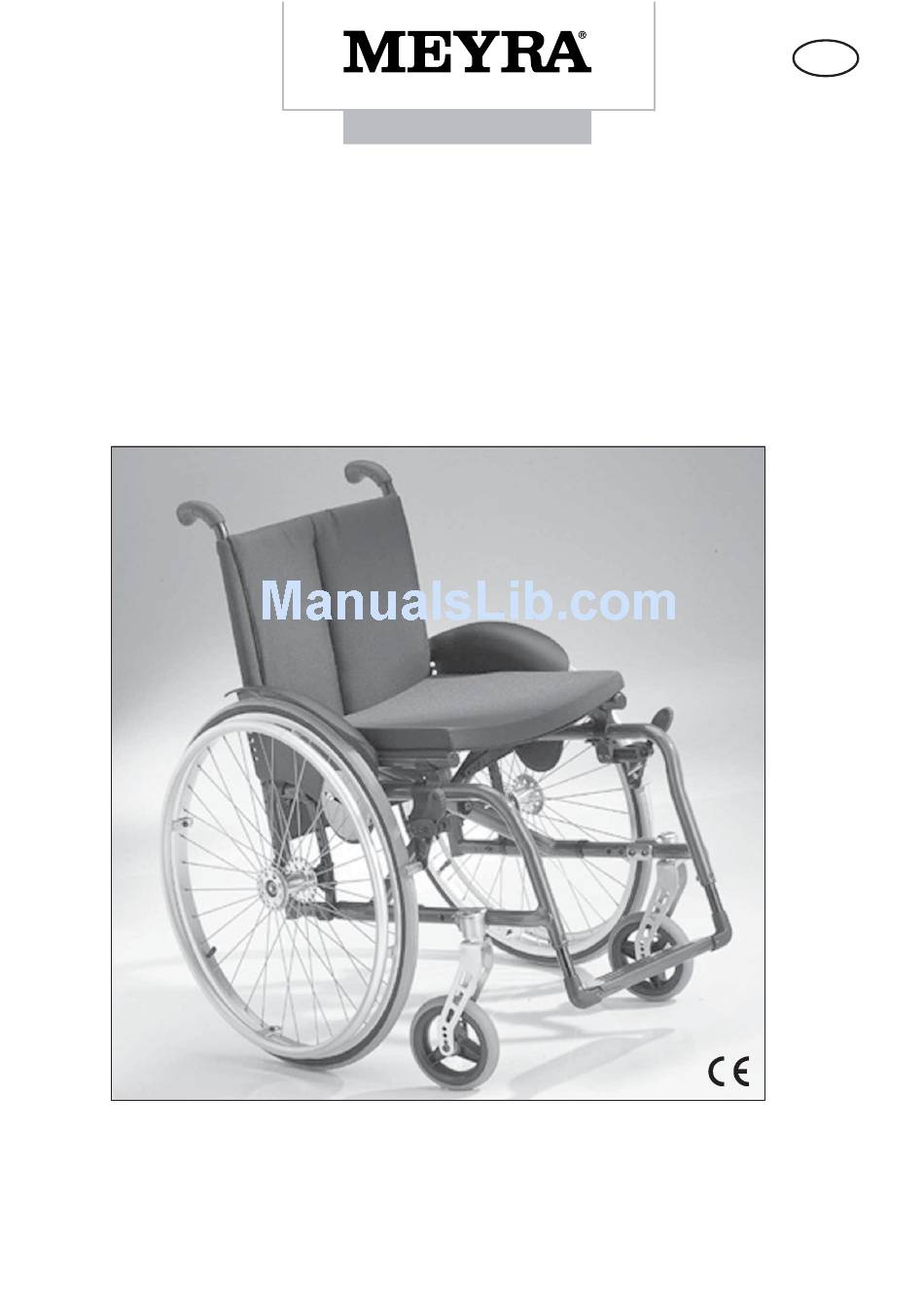

Page 1: Folding Wheelchair
The Motivation. FOLDING WHEELCHAIR FALTROLLSTUHL Folding wheelchair Model 1.835 OPERATING MANUAL... -
Page 2: Table Of Contents
Table of contents Introduction Acceptance Assembly Specifications/ utilisation Auxiliary drives Driving Overview Model 1.835 Parking brake Pressure brake Service brake Locking the pressure brakes Releasing the pressure brakes Adjusting the pressure brakes Drum brakes Function as operating brakes Locking the drum brakes... - Page 3 Handrims Steering wheels Folding/Unfolding Folding Unfolding Transportation Carrying the wheelchair Loading into the transport vehicle Transport in handicapped transport automobile Product liability instructions Safety informations Service Maintenance Tools Care Spare parts Repairs Repairs Customer Service Disposal Maintenance instructions Technical data Tyre filling pressure: Temperature range Notes...
-
Page 4: Introduction
INTRODUCTION ACCEPTANCE The MEYRA Folding Wheelchair model All MEYRA products are checked for faults in 1.835, fulfills the wish for mobility and more the factory and packed in special boxes. independence by way of a new styling of the Note: proven MEYRA technology. -
Page 5: Specifications/ Utilisation
SPECIFICATIONS/ UTILISA- DRIVING TION The first adjustment of the driving features of your wheelchair to suit your personal needs The wheelchair is designed for universal use will be possible at once, following a brief “in- and therefore all-round wheelchair for indoor troductory “... -
Page 6: Overview
OVERVIEW Model 1.835 The model shown in fig. 1 is the standard version. All deviations are specified separately in this operating manual. Fig. 1 Pos. Description 1 Backrest 2 Clothes guard 3 Seat cushion 4 Foot board 5 Steering wheel - right... -
Page 7: Parking Brake
PARKING BRAKE The parking brakes are part of the most im- portant safety elements of a wheelchair. Caution: Please observe the Maintenance Instruc- tions as well as instructions in the section “General Safety Information” and “Brakes” in the brochure “Safety information - Me- chanical wheelchairs”! PRESSURE BRAKE The wheelchair is fitted with pressure brakes. -
Page 8: Adjusting The Pressure Brakes
Adjusting the pressure brakes The pressure brakes must be readjusted after each re-fitting of a drive wheel. Handling: – Loosen the clamping screw (1, fig. 4) of one pressure brake. – Pre-set the pressure brake – Slide the brake bolt of the non-activated pressure brake to a point approx. -
Page 9: Drum Brakes
DRUM BRAKES The drum brake is activated by the attendant through the brake levers on the extended han- dles (fig. 4.1). Benefits: – braking action independent of tyre pro- file. – braking action independent of the tyre pressure. – secure handling for your helper through brake levers on both handles. -
Page 10: Locking The Drum Brakes
Locking the drum brakes – Pull both brake levers evenly in order to secure the wheelchair against uninten- tional motion (fig. 4.2). – Press the surface (A, fig. 4.2) of the lock- ing latch down with one finger and let it snap into place. -
Page 11: Legrests
LEGRESTS Folding up the footboard Benefits: – Easy transfer into and out of the wheel- chair. – Leg region free, no stumbling. – “shuffling” possible (moving the wheelchair forward with the feet). Handling: – Operate parking brakes. – This prevents the wheelchair from rolling away acciden- tally. -
Page 12: Adjusting The Length Of The Legrests
Adjusting the length of the legrests The length of the legrest is continually adjust- able through a telescopic tube. Benefits: – Individual adjustment of the legrest to the length of your lower leg Handling: – Operate parking brakes. – This prevents accidental rolling of the wheelchair (see section “Parking brakes”). -
Page 13: Clothes Guard
CLOTHES GUARD The distance X to the clothes guard running parallel to the wheel diameter (fig. 7) is to be aligned to the selected wheel position. Caution: The distance X between the driving wheel and the mudguard should be as small as possible (approx. -
Page 14: Clothes Guard With Padded Arm Support
Clothes guard with padded arm support The padded arm support of the clothes guard can be adjusted in angle and height. (Fig. 7.4) – Remove drive wheel (see Drive wheels sec- tion). Adjusting the angle: – Loosen the attachment screws (C). –... -
Page 15: Push Handles
PUSH HANDLES Push handles with clamping device The push handles are attached to the back- rest with a clamping device on each side (fig. 8), continuously adjustable by about 30 cm, can be swivelled in 30° steps and se- cured against being pulled out. Benefits: –... - Page 16 Push handles with tube guidance The push handles (fig. 9) are guided swivel- proof inside the back tube and steplessly height by up to 10 cm. Benefits: – Ideal adjustment to the demands of the at- tendant with the stepless height adjust- ment.
-
Page 17: Drive Wheels
DRIVE WHEELS Note: You will find the air pressure values for the tyres for your wheelchair in the Technical Specifications or the information given for both sides of the wheels. Quick release axle The driving wheels can be removed and reas- sembled without any tools. -
Page 18: Handrims
HANDRIMS All handrims (8) are designed for a distance to the driving wheel (9) of 15 mm (standard setting) and 25 mm (fig. 11). Replacement of handrims or modification of handrim distances should always be carried out by your authorized specialist workshop. STEERING WHEELS The steering wheels can be exchanged with- out difficulty. -
Page 19: Folding/Unfolding
FOLDING/UNFOLDING Your wheelchair can be folded in a few mo- ments without tools being required (fig. 13). The new crossbrace design results in a small folded size and ensures a high wheelchair stability after unfolding. Benefits: – Easy to fold without any tools. –... -
Page 20: Transportation
TRANSPORTATION Loading into the transport vehicle Carrying the wheelchair Caution: Your wheelchair can be carried without diffi- For the transport in vehicles, you must leave culty when folded. the wheelchair and sit in a suitable seat in the vehicle. The transportation of persons Handling: in wheelchairs is prohibited. -
Page 21: Transport In Handicapped Transport Automobile
TRANSPORT IN HANDI- The power-knot-system is a firm, retrofitable element on the wheelchair, on which the PRS CAPPED TRANSPORT AU- and WRS merge. TOMOBILE These requirements are fulfilled by a 4-point- Note: system that consists of 2 front standardized For transport in vehicles we recommend latches for spanning reactor and 2 rear to leave the wheelchair and sit on a suita- standardized latches for spanning retractor... -
Page 22: Product Liability Instructions
Note: SAFETY INFORMATIONS The headrest on the wheelchair serves as When transporting a person, make sure a support for the posture of the head, not that there are no objects jammed under- as a transport security. Therefore a hand- neath the straps! – Thus you avoid pain- icapped transport vehicle-firm headrest is ful pressure points necessary! -
Page 23: Service
SERVICE Care Seat and backrest cover: Maintenance Clean the covers with warm water. In the Like any other technical product, your wheel- case of stubborn soiling, the fabric can be chair also requires maintenance. The follow- washed with a standard washing powder for ing maintenance instructions describe in ta- delicate fabrics. -
Page 24: Spare Parts
SERVICE Customer Service Please contact an authorised dealer if you Spare parts have any questions or need help. An author- can only be ordered from dealers. Use only ised dealer has been trained by us in our fac- original spare parts for repairs! tory according to our guidelines and can give advice and carry out maintenance, serv- You must state the serial number (Fz-I-Nr.) of... -
Page 25: Maintenance Instructions
MAINTENANCE INSTRUCTIONS WHEN WHAT Remark Before starting Test brakes for faultless Carry out test yourself or operation with a helper. Carry out tests yourself or Activate brake lever (5) to the lim- have a helper do it. it. The locked wheels should not If you notice any increasing be able to turn under operating slackness on the brake lever... - Page 26 MAINTENANCE INSTRUCTIONS WHEN WHAT Remark Every 8 weeks Lubricate the following Do it yourself or with the aid components with a of a helper. (depending on frequency of few drops of oil Components must be free use) from used oil residues be- –...
-
Page 27: Technical Data
If this is not possible, a more stable version Always observe the maximum tyre fill pressure or another wheelchair model must be used. indicated on the tyre cover! Contact your MEYRA specialist dealer in this respect. Temperature range Operating temperature: ** = Attention! - 25°C to + 50°C... - Page 28 TECHNICAL DATA Table 1 h t i s t s h t i s t s t a l t a l s t s v i r " 2 " 4 h t i v i r , s l , s t ) s t l a t...
-
Page 29: Notes
NOTES... -
Page 30: Guarantee
GUARANTEE Damage to surfaces, tyres, damage due to screws and washers which have worked loose or worn out attachment holes due to We accept a guaranty for this product ac- frequent assembly and dismantling are not cording to the legal regulations. Apart from covered by this guarantee. -
Page 31: Guarantee Coupon
GUARANTEE COUPON Fill in the details! If necessary, copy and return. Guarantee Model designation: Delivery note no.: Vehicle ID No. (Fz-I-Nr.) (view type plate): Date of delivery: Stamp of the authorized dealer:... - Page 32 T h e M o t i v a t i o n . MEYRA Wilhelm Meyer GmbH & Co. KG • Company address: Meyra-Ring 2 D-32689 Kalletal-Kalldorf Telephone +49 (0) 5733 922-0 Telefax: +49 (0) 5733 922-143 Email: info@meyra.de Internet: http://www.meyra.de...
