I Function display
q TRANSMIT INDICATOR
Appears while transmitting.
w RECEIVE INDICATOR
Appears while receiving a message.
e SIGNAL STRENGTH METER
Indicates the received signal strength at 4 levels.
• If the connection with the communication network is not
established, the whole icon turns OFF while
• For a stable communication, at least the second highest
level (with two bars appearing) is required.
r LOW POWER INDICATOR
Appears if the transmission output is set to a low power level
(Low1 or Low2). Does not appear when High power is select-
ed.
t SPEAKER INDICATOR
Appears when voice communication becomes possible.
q w e r t y u
blinks.
PANEL DESCRIPTION
i
o

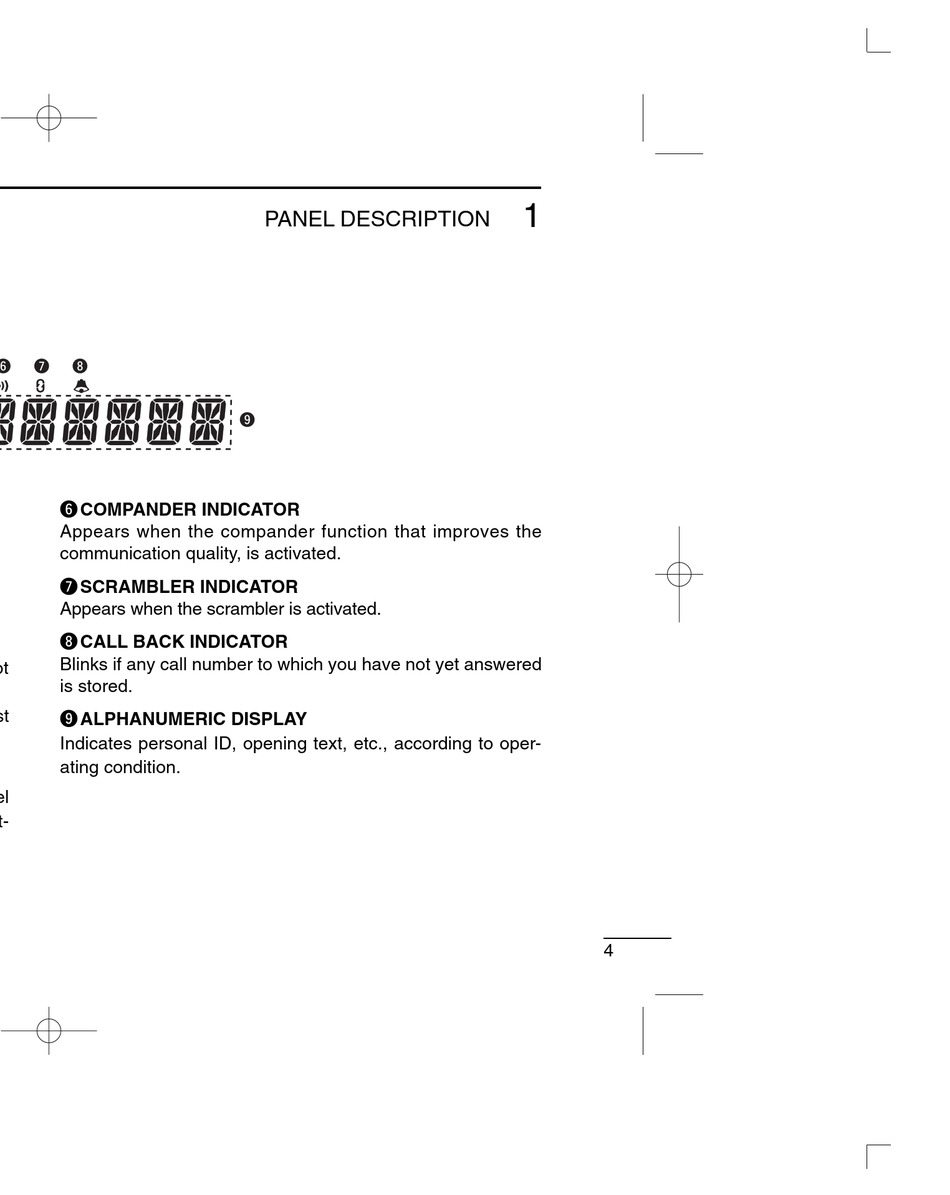

y COMPANDER INDICATOR
Appears when the compander function that improves the
communication quality, is activated.
u SCRAMBLER INDICATOR
Appears when the scrambler is activated.
i CALL BACK INDICATOR
Blinks if any call number to which you have not yet answered
is stored.
o ALPHANUMERIC DISPLAY
Indicates personal ID, opening text, etc., according to oper-
ating condition.
