' ' MAP27 serial interface

MAP27 is a Mobile Access Protocol for MPT1327/1343 com-

munication equipment. It permits data exchange between

MPT radio equipment and external equipment such as a data

terminal which may be a laptop computer.

By connecting the OPC-822

external connector of the transceiver (J9), you can use the

serial interface*. (See right.)

*Available baud rate: 1200/2400/4800/9600

Using the appropriate PC software, you can control dialling,

hook off (answer), hook on (clear down), status and short

data from the computer.

The interface supports the following functions.

• Independent Call, Group Call

• Emergency Call (call with "✱9")

• Clear down

• Send/receive status messages

• Send/receive SDM (Short Data Message): up to 100

ASCII characters

NOTE: Follow the instruction manuals of MAP27 equip-

ment for operation.

to the

OPTIONAL INTERFACE CABLE

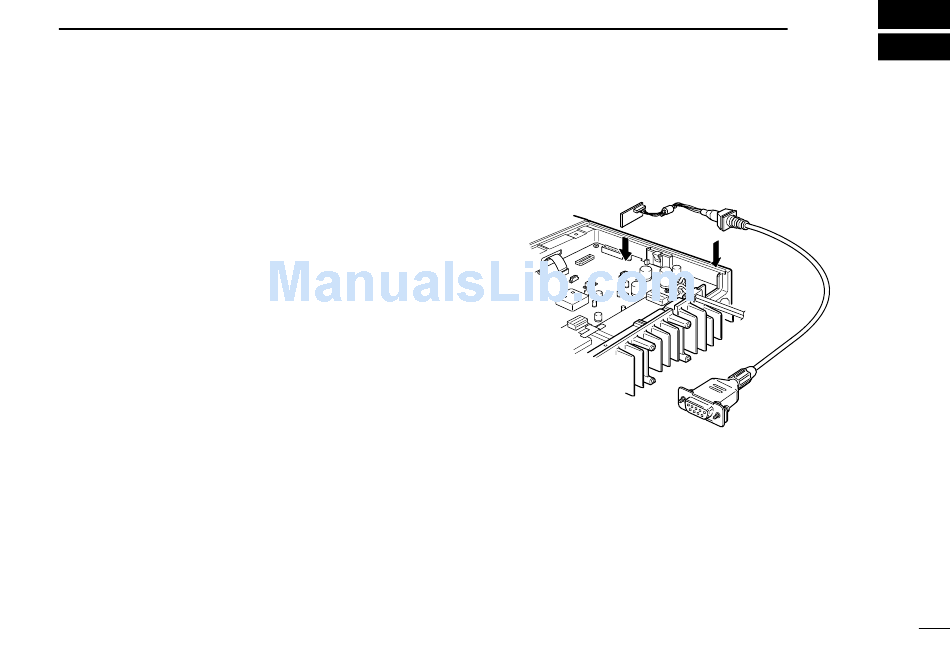

• OPC-822 (OPTION) installation

MAP27

OPC-822
