Item
OWC Mercury Elite RAID Rack Enclosure
SATA Hard Drive in carrier (installed)
1394b (FireWire 800) cable
USB 2.0 (A-B) cable
Power cable
Drive Carrier Keys
Software Bundle CD
Installation & Setup Guide
Front panel LED status indicators:
• Access LEDs will light up blue if the hard drive is installed.
• Access LED will always light up red if the hard drive is removed.
• HDD Access LED will flash blue when data is being accessed.
• Power LED will light up blue when the power is turned on.
• Fail LED will light up red when the internal temperature exceeds 60˚C
or if the internal fan has failed.

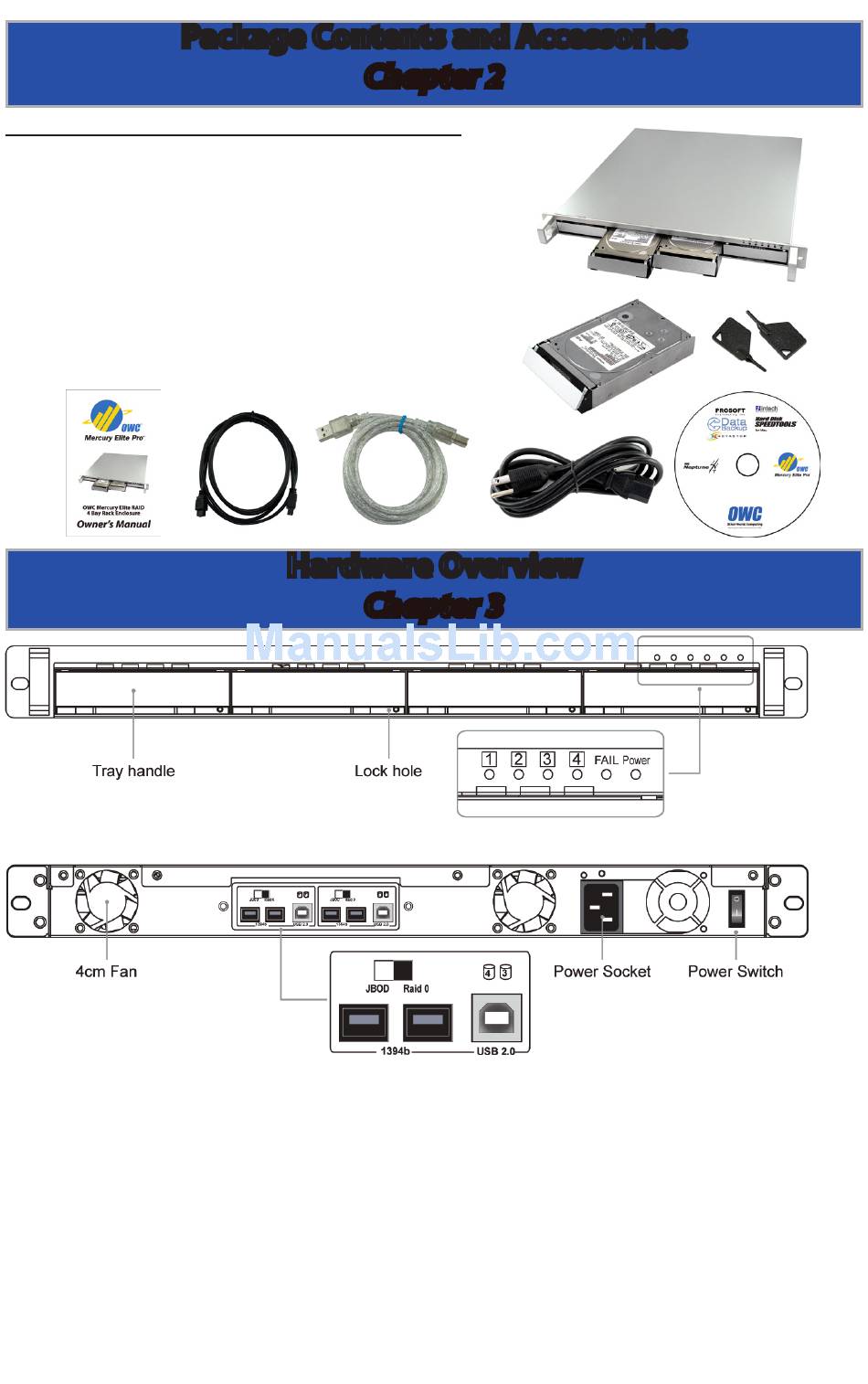

Package Contents and Accessories
Hardware Overview
Chapter 2
Quantity
1
4
2
2
1
2
1
1
Chapter 3
Page 3
