Internal Views; Top View; Bottom View - Icom IC-718 Instruction Manual

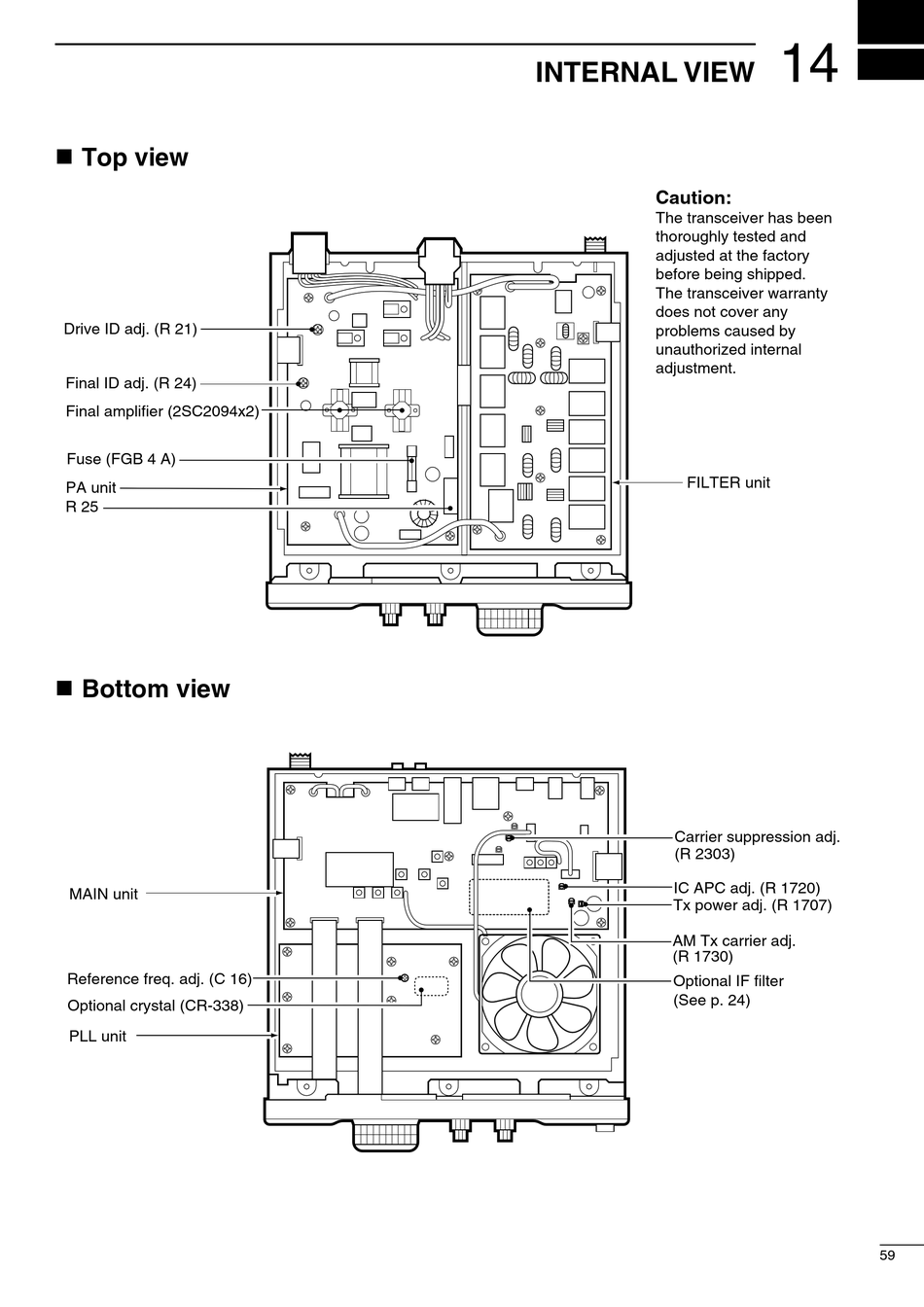

n Top view
Drive ID adj. (R 21)
Final ID adj. (R 24)
Final amplifier (2SC2094x2)
Fuse (FGB 4 A)
PA unit
R 25
n Bottom view
MAIN unit
Reference freq. adj. (C 16)
Optional crystal (CR-338)
PLL unit
INTERNAL VIEW
Caution:
The transceiver has been
thoroughly tested and
adjusted at the factory
before being shipped.
The transceiver warranty
does not cover any
problems caused by
unauthorized internal
adjustment.
FILTER unit
Carrier suppression adj.
(R 2303)
IC APC adj. (R 1720)
Tx power adj. (R 1707)
AM Tx carrier adj.
(R 1730)
Optional IF filter
(See p. 24)
