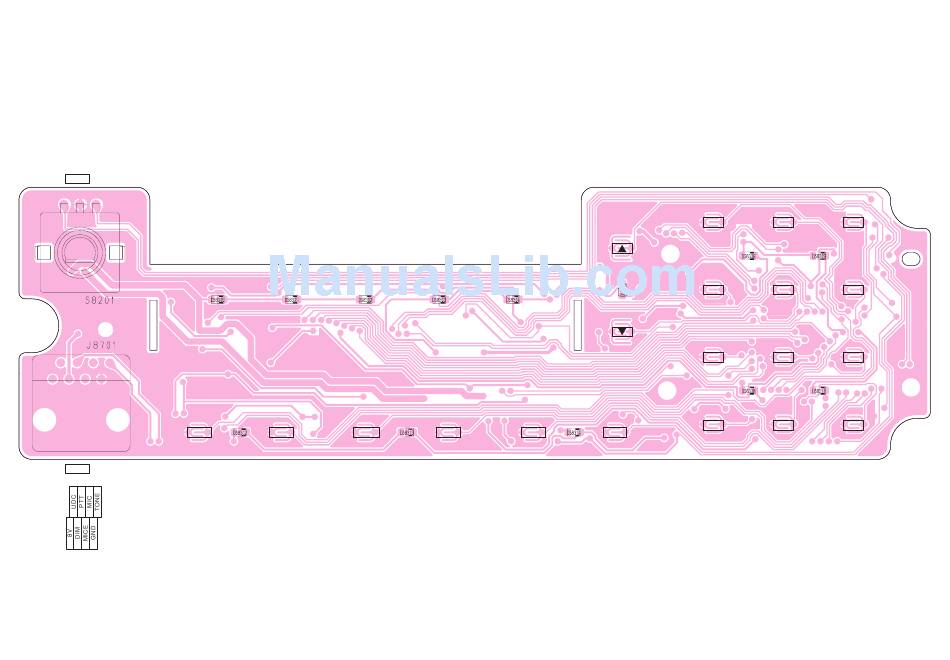

9-2-3 DISPLAY BOARD
• TOP VIEW
VOL
I/O
MIC
2
8
J8701
to HM-146
MIC unit J1
1
7
EMG
MUTE
9 - 3
TUNE
SCAN
CALL
1
2
3
4
5
6
7
8
9
CLR
0
OK
