Icom IC-F7000 Service Manual page 25

Hf
Hide thumbs Also See for IC-F7000:
Table of Contents

Advertisement

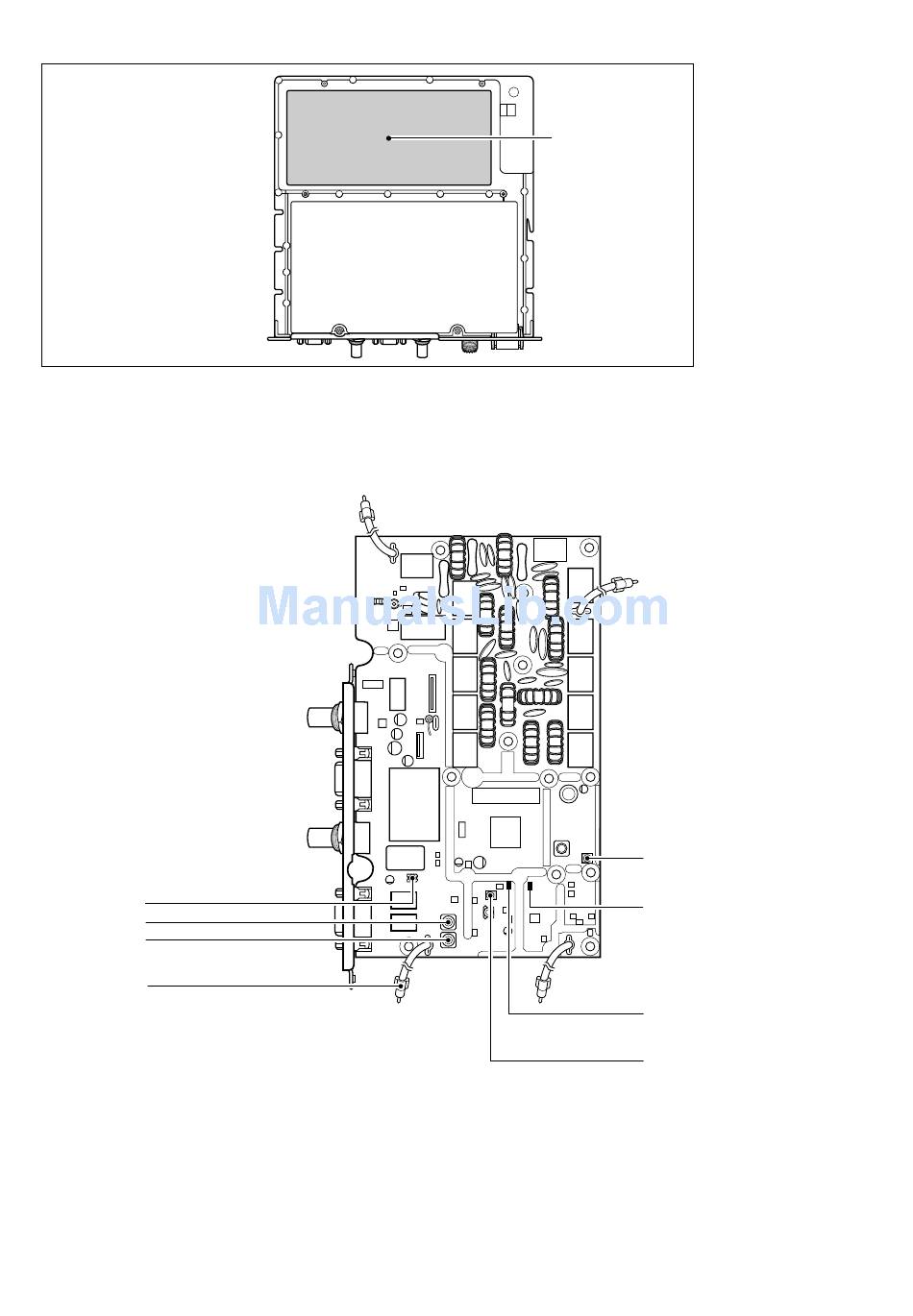

• IC-F7000 BOTTOM VIEW
• PLL UNIT TOP VIEW
R5255
L5203
L5204
Reference frequency adjustment
P5201
Reference frequency ckeck point
PLL unit
5 - 4
C5521
HPL lock voltage adjustment
CP5402
HPL lock voltage ckeck point
CP5302
LPL lock voltage ckeck point
L5305
LPL lock voltage adjustment
