Icom IC-F7000 Service Manual page 27

Hf
Hide thumbs Also See for IC-F7000:
Table of Contents

Advertisement

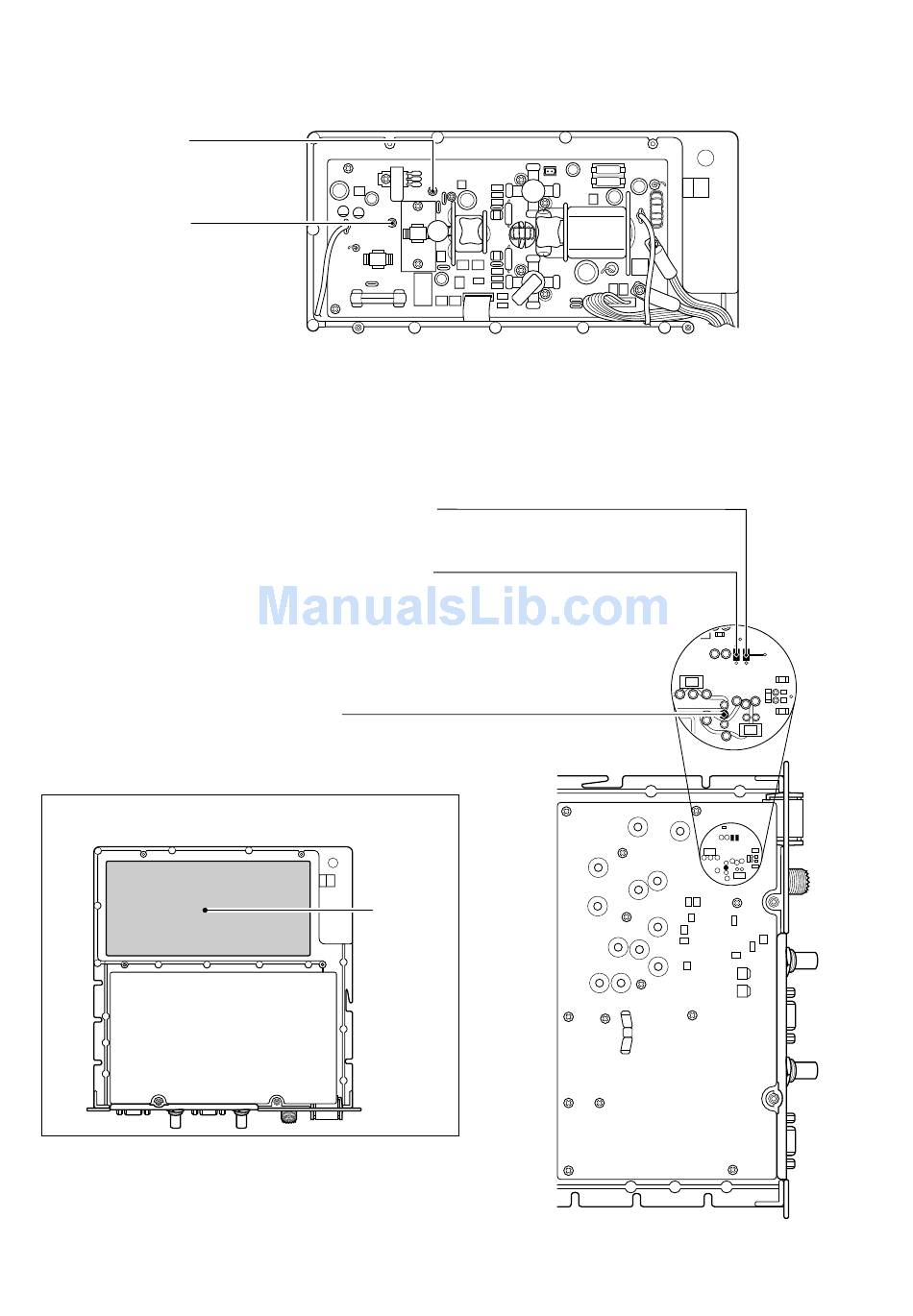

• PA UNIT TOP VIEW
R6412
Idling current adjustment
(For final transistors)
R6304
Idling current adjustment
(For drive FETs)
• PLL UNIT BOTTOM VIEW
• IC-F7000 BOTTOM VIEW
CP7331 (REF line)
SWR detector check point
CP7332 (FOR line)
Connect to ground
C7275
SWR detector adjustment
PLL unit
5 - 6
