SECTION 3 ABOUT EXTERNAL REFERENCE SIGNAL INPUT
' ' IN CASE OF USING EXTERNAL REFERENCE SIGNAL
NEED TO MODIFY

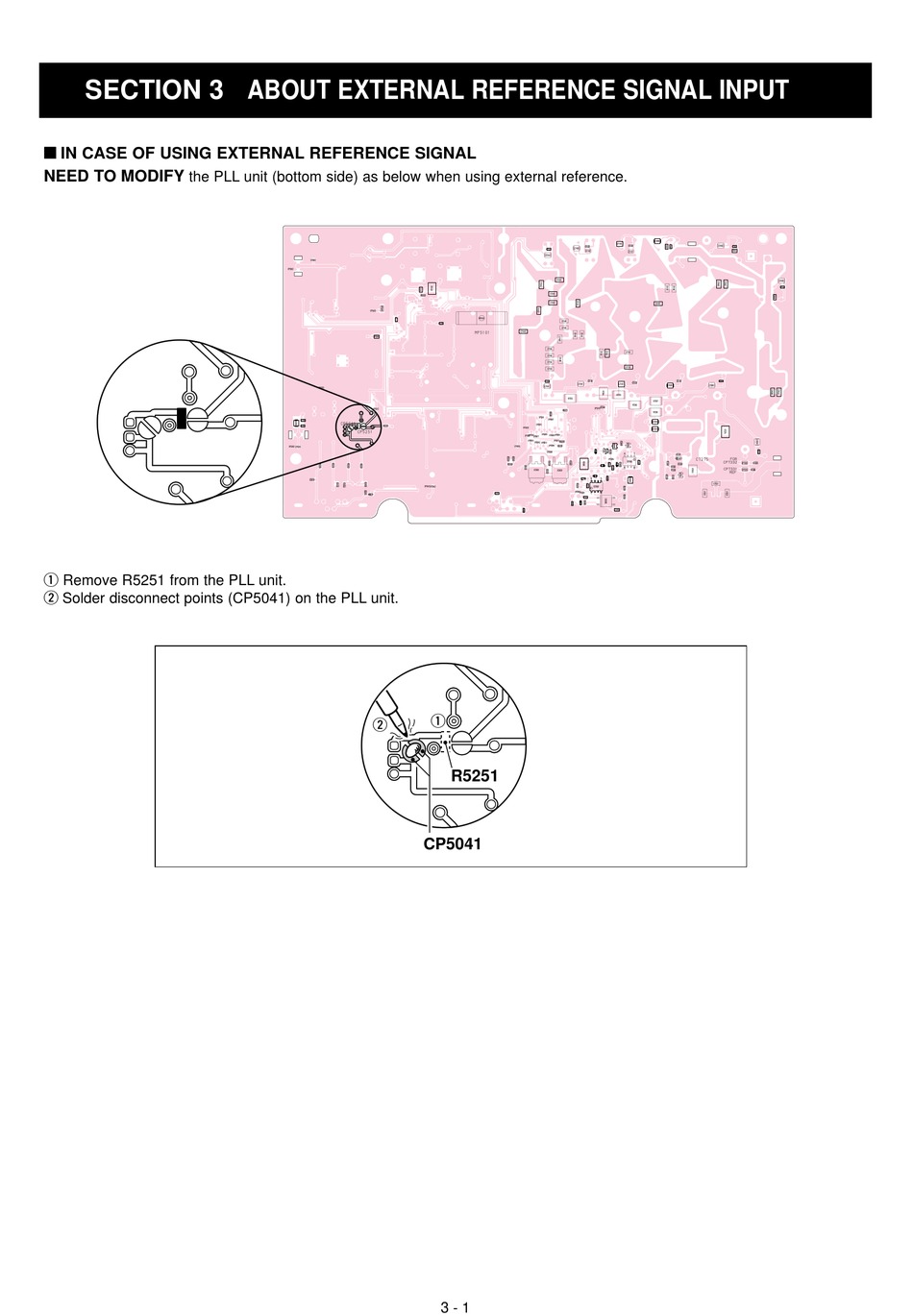

the PLL unit (bottom side) as below when using external reference.
q Remove R5251 from the PLL unit.
w Solder disconnect points (CP5041) on the PLL unit.
q
w
R5251
CP5041
