I Supplied Accessories - Icom iF610 Instruction Manual

q ANTENNA CONNECTOR
Connects to an antenna. Ask your Dealer about antenna
selection and placement.
w MICROPHONE HANGER
Connect the supplied microphone hanger to the vehicle's
ground for microphone on/off hook functions.
e DC POWER RECEPTACLE
Connects to a 12 V DC battery. Pay attention to polari-
NEVER
ties. connect to a 24 V battery. This could dam-
age the transceiver.
r EXTERNAL SPEAKER JACK
Connect a 4–8 Ω external speaker, if desired.
t OPTIONAL CABLE (OPC-617 or OPC-822)
Connect an external horn drive unit, LCD backlight con-
trol, etc.
CONNECTION AND MAINTENANCE

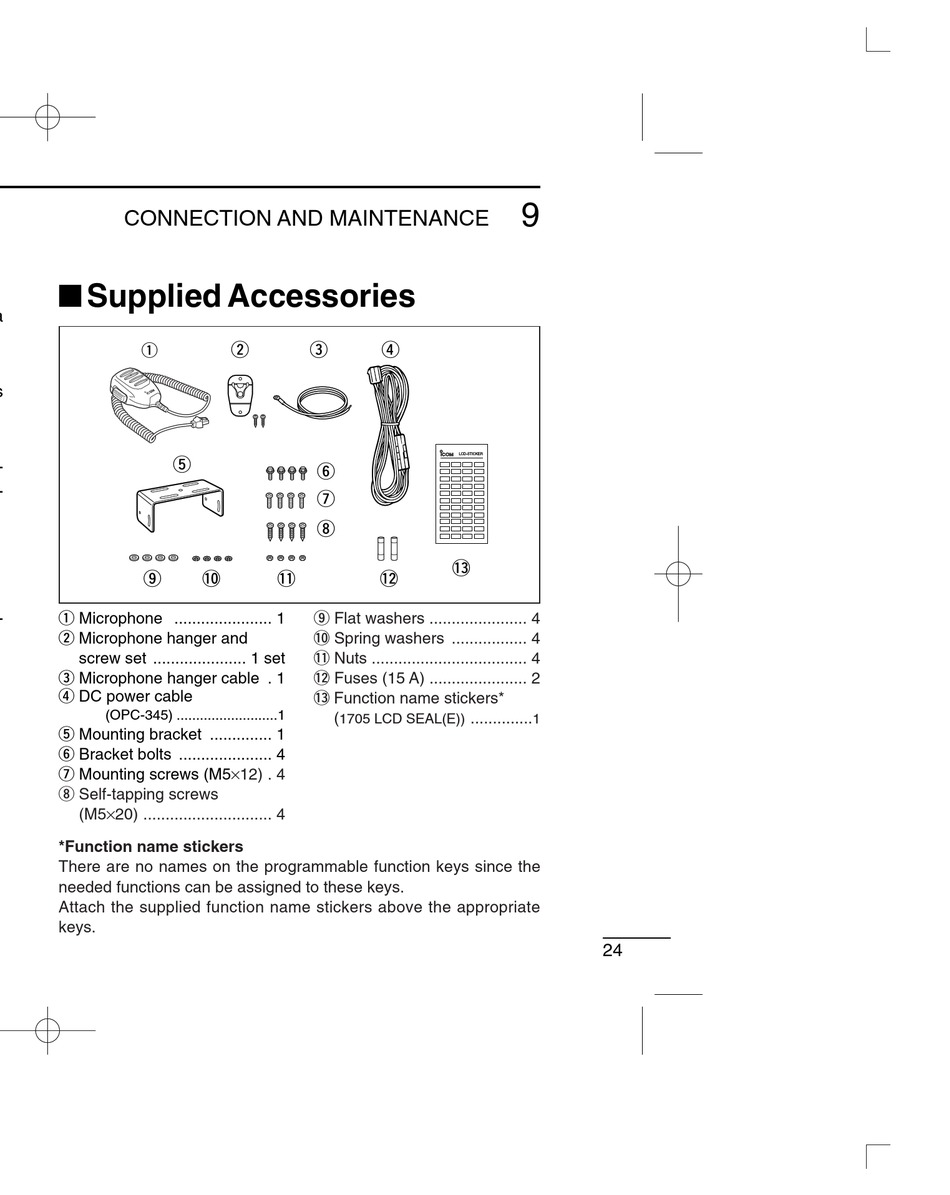

I Supplied Accessories

w
q
t
o
!0 !1
q Microphone ...................... 1
w Microphone hanger and
screw set ..................... 1 set
e Microphone hanger cable . 1
r DC power cable
(OPC-345) ..........................1
t Mounting bracket .............. 1
y Bracket bolts ..................... 4
u Mounting screws
(M5×12) . 4
i Self-tapping screws
(M5×20) ............................. 4
*Function name stickers
There are no names on the programmable function keys since the
needed functions can be assigned to these keys.
Attach the supplied function name stickers above the appropriate
keys.
9
e
r
LCD-STICKER
y
u
i
!3
!2
o Flat washers ...................... 4
!0 Spring washers ................. 4
!1 Nuts ................................... 4
!2 Fuses (15 A) ...................... 2
!3 Function name stickers*
( ..............
1705 LCD SEAL(E)) 1
