Antenna unit

A key element in the performance of any
communication systems is the antenna.
Contact your dealer for information
regarding antennas and how to install
them.
NOTE:
• Connect the Antenna unit with the LAN
cable (Category 5e or higher).
• The Main unit provides electrical power
to the Antenna unit by PoE.

Cleaning

If the transceiver becomes
dusty or dirty, wipe it clean
with a soft, dry cloth.
DO NOT use harsh solvents such as
they damage the transceiver's surfaces.

Fuse replacement

Fuses are installed in the supplied DC
power cable. If a fuse blows, track down
the source of the problem, repair it, and
then replace the damaged fuse with a new
rated one.
Fuse rating: 5 A
NOTE: Use only 5 A fuses.
CONNECTING AND MAINTENANCE

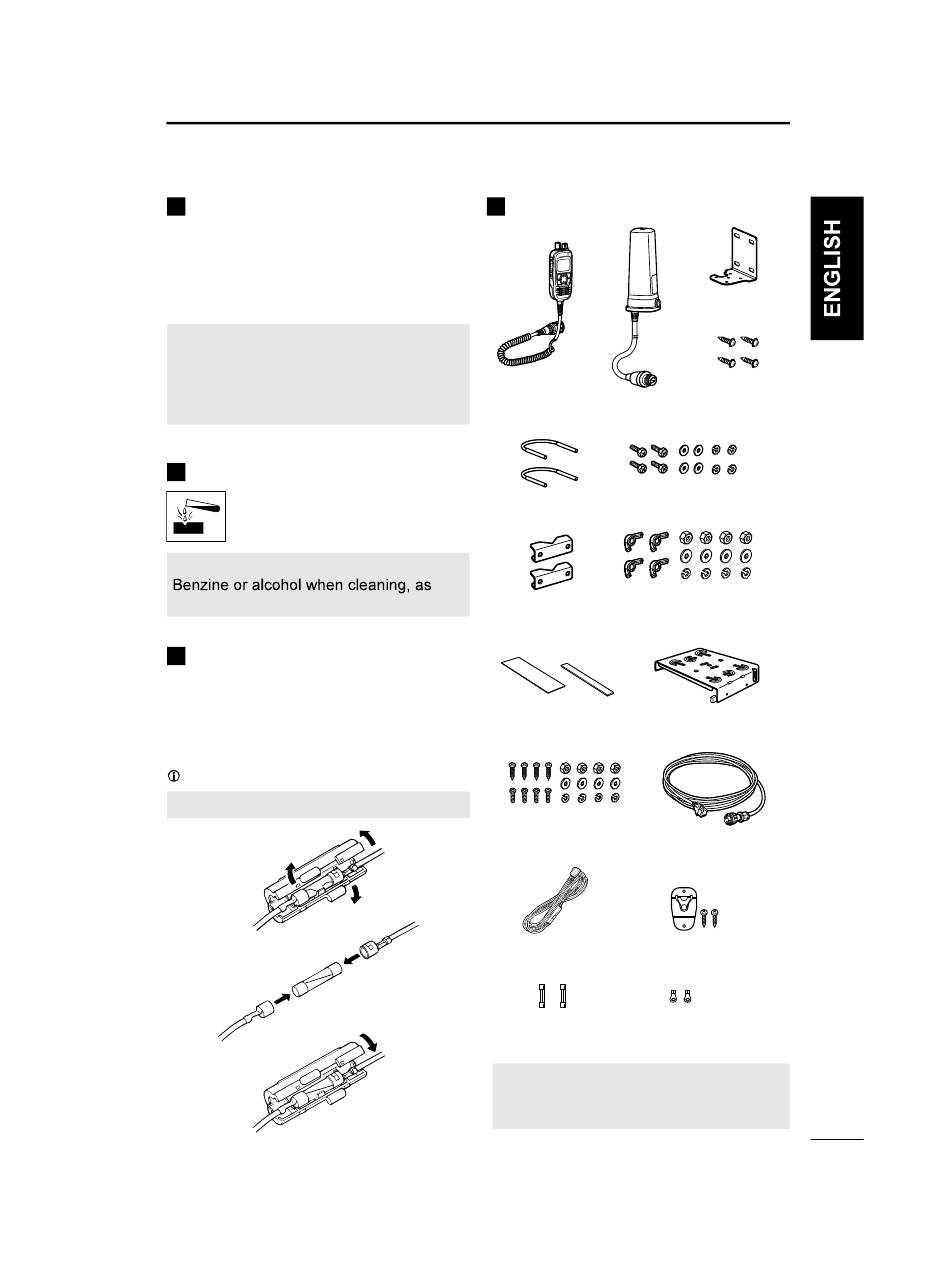

Supplied accessories

Speaker
microphone
U-bolt
Mast clamp
Cushion and sheet for
the mounting bracket
Screws, nuts, and
washers for mounting the
transceiver
DC power
cable
Spare fuses
(5A)
NOTE: Some accessories are not
supplied, or the shape is different,
depending on the transceiver version.
4
Angle bracket
Self-tapping
screws for
Antenna
attaching to a wall
unit
Bolts and washers for
mounting the antenna
Nuts and washers for
attaching the mast
Mounting bracket
LAN cable
(20 m, 65.6 ft)
Microphone hanger
and screw set
Terminals for DC
power cable (R2-6)
