CONNECTION AND MAINTENANCE

I Optional OPC-617 installation

Install the OPC-617 as shown below.
OPTIONAL CABLE PIN ASSIGNMENT
t r e w q
o i u y
27
qLCD backlight cont. IN yHorn drive cont. OUT
wAF OUT for PA, RX uAF GND for PA, RX
SP. function SP. function
eDet. AF OUT iDet. AF GND
rMod. IN oMod. GND
tNC

I Antenna

A key element in the performance of any communication sys-
tem is an antenna. Ask your Dealer about antennas and the
best places to mount them.

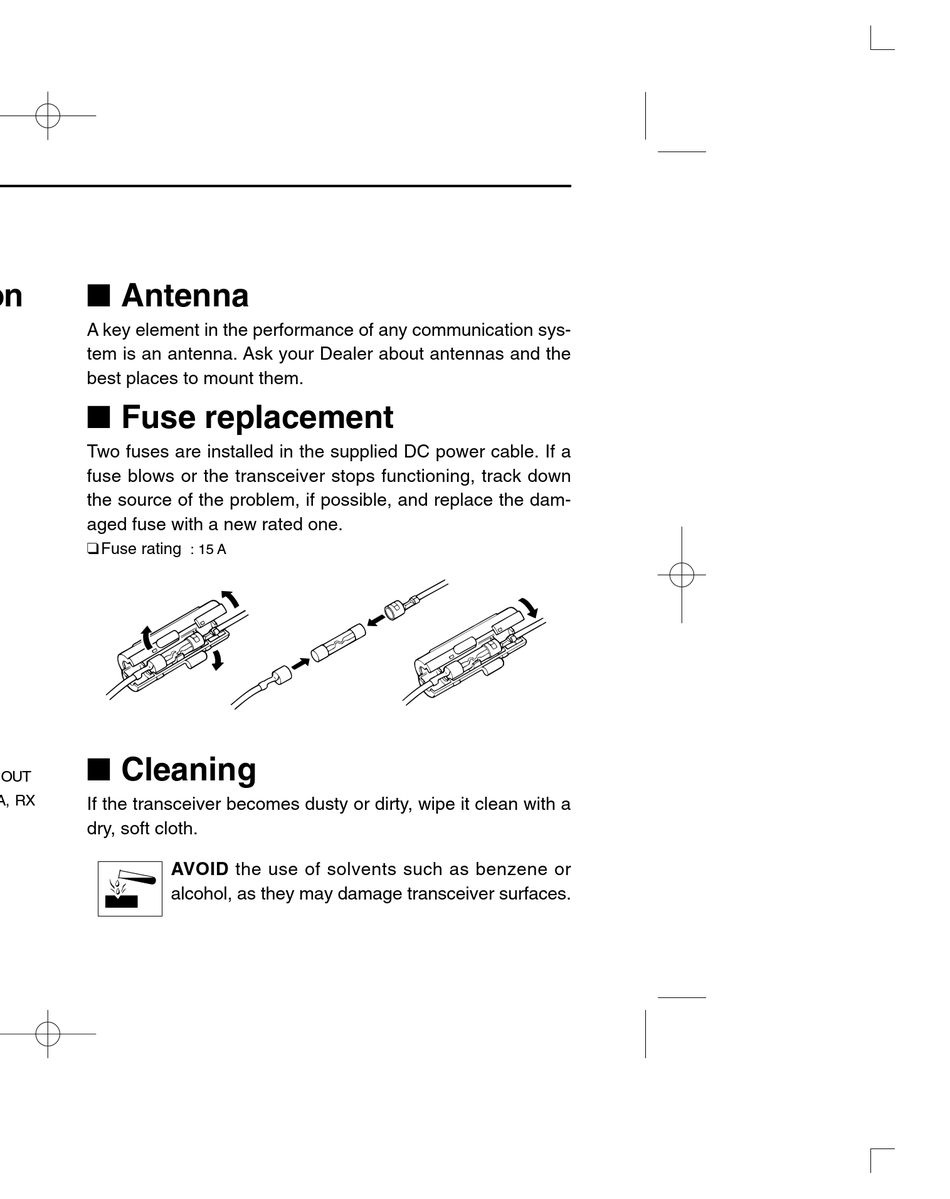

I Fuse replacement

Two fuses are installed in the supplied DC power cable. If a
fuse blows or the transceiver stops functioning, track down
the source of the problem, if possible, and replace the dam-
aged fuse with a new rated one.
❑ Fuse rating
: 15 A,

I Cleaning

If the transceiver becomes dusty or dirty, wipe it clean with a
dry, soft cloth.
AVOID the use of solvents such as benzene or
alcohol, as they may damage transceiver surfaces.
