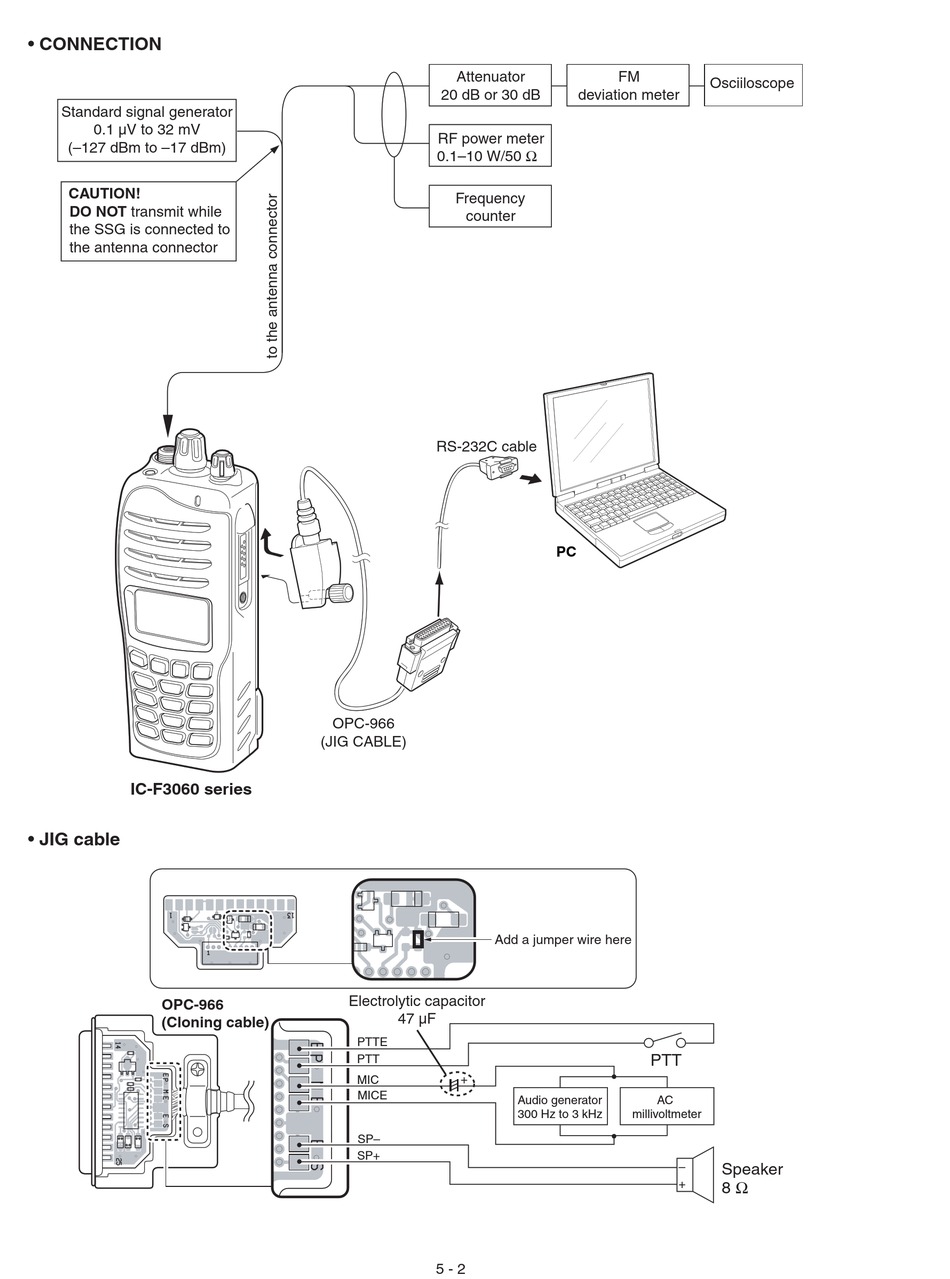

• CONNECTION
Standard signal generator
0.1 µV to 32 mV
(–127 dBm to –17 dBm)
CAUTION!
DO NOT transmit while
the SSG is connected to
the antenna connector
IC-F3060 series
• JIG cable
Attenuator
20 dB or 30 dB
RF power meter
0.1–10 W/50 Ω
Frequency
counter
RS-232C cable
OPC-966
(JIG CABLE)
5 - 2
FM
Osciiloscope
deviation meter
PC
