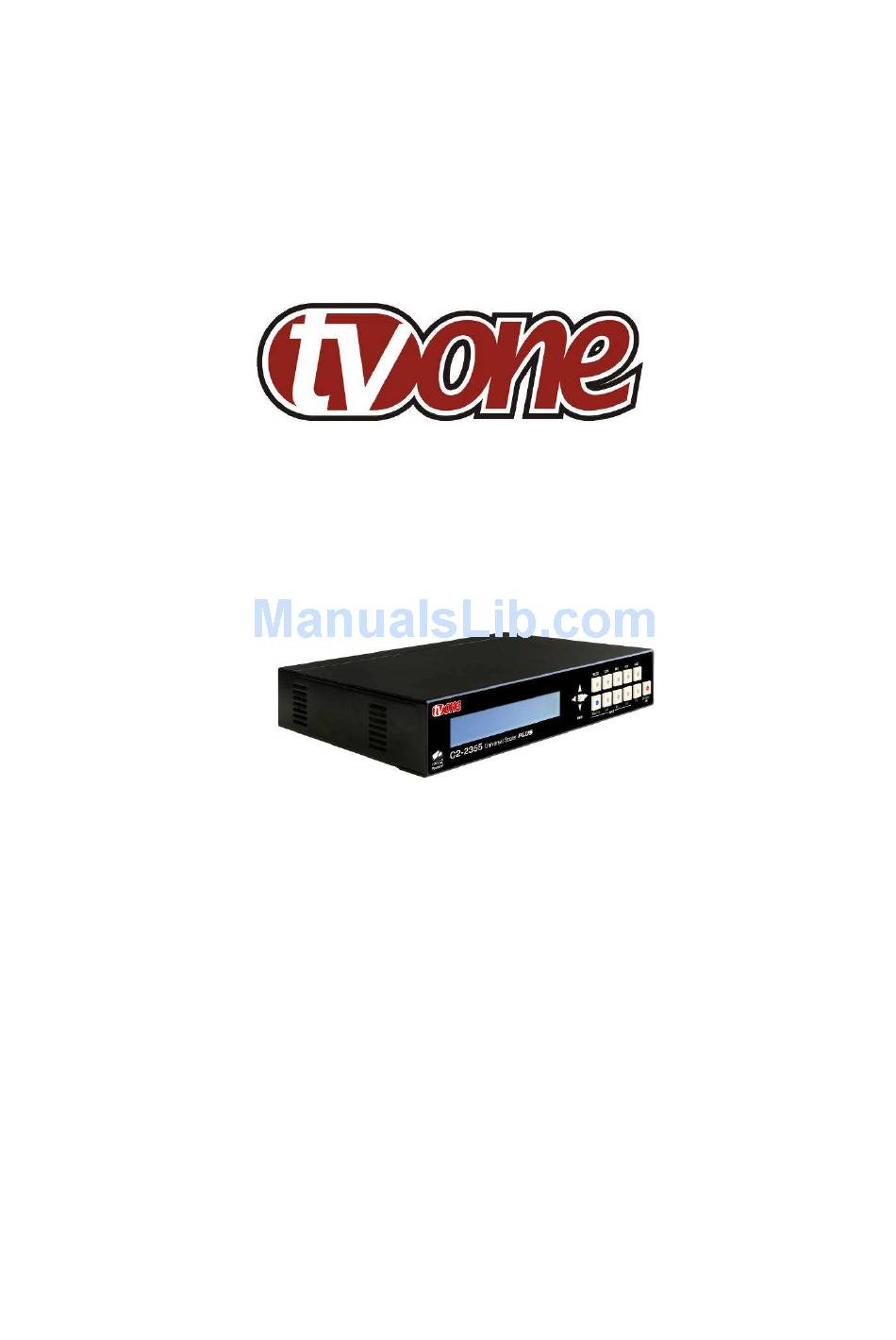

  • Page 1 C2-2450A O PERATION ANUAL C2-2450A Video Processor Operation Manual...
  • Page 2 C2-2450A O PERATION ANUAL...

  • Page 3: Table Of Contents

    C2-2450A O PERATION ANUAL TABLE OF CONTENTS DISCLAIMER ....................1 Regulatory Agency Acceptance................1 FCC Statement....................1 Manual Version Information................. 2 Manual Copyright Notice ..................2 IMPORTANT SAFETY INSTRUCTION............3 CAPABILITY, DEVICE FEATURES AND PRODUCT FEATURES..... 13 Device Capabilities.................... 13 Device Features ....................
  • Page 4 C2-2450A O PERATION ANUAL Items Associated with the Adjust sources group ..........29 9.4.1 Menu items common to all inputs ..............30 9.4.2 DVI Source Menu Items ..................33 9.4.3 RGB Source Menu Items................... 35 9.4.4 CV & YC Source Menu Items ................36 9.4.5 Still Image Store / Testcard Source Menu Items..........
  • Page 5 C2-2450A O PERATION ANUAL 13 EDGE-BLENDING TOOL................73 13.1 Configuration..................... 73 13.2 Communications....................73 13.3 Video setup ....................... 74 13.4 Mapping the scaler to a screen................75 13.5 Cropping the image ................... 76 13.6 Setting the blend width ..................76 13.7...
  • Page 6 C2-2450A O PERATION ANUAL 15.10 The picture on the video display is green............93 15.11 The RGB input is selected but the image is rolling or pink......... 94 15.12 The video signal from my DVD player does not appear to work......94 15.13 The output from the 1T-CT-464 is blue..............

  • Page 7: Disclaimer

    C2-2450A O PERATION ANUAL DISCLAIMER This product is intended for professional and/or home use. This product is not intended for use in a medical environment and does not have the required certifications for such use. Similarly, use aboard any aircraft or spacecraft while in...

  • Page 8: Manual Version Information

    Caution: This equipment is intended for use in the manner prescribed in the Instruction Manual. Any user changes or modifications not expressly approved by TV One Multimedia Solutions could void the user’s authority to operate the equipment. Connecting this equipment to external devices requires no specially shielded cabling for FCC compliance.

  • Page 9: Important Safety Instruction

    C2-2450A O PERATION ANUAL IMPORTANT SAFETY INSTRUCTION To insure the best from this product, please read this manual carefully. Keep it in a safe place for future reference. To reduce the risk of electric shock, do not remove the cover from the unit.
  • Page 10 C2-2450A O PERATION ANUAL 2.5 Ventilation Slots and openings in the sides of the unit are provided for ventilation. To ensure reliable operation, avoid obstruction of these openings and ensure the unit is installed in a well-ventilated area. 2.6 Intellectual property Some IC chips in this product include confidential and/or trade secret property.
  • Page 11 C2-2450A O PERATION ANUAL 2 IMPORTANT: CONSIGNES DE SECURITE Afin de tirer le meilleur de ce produit, merci de lire attentivement ce manuel. Gardez-le dans un endroit sûr pour pouvoir le consulter à nouveau. Afin de réduire le risque de choc électrique, ne retirez pas l’unité de sa protection.
  • Page 12 C2-2450A O PERATION ANUAL L’installation de cette unité doit se faire dans un endroit frais et sec, éloigné de sources excessives de chaleur, de vibrations, de poussière, d’humidité et de froid. 2.5 Aération Les rainures et les ouvertures sur les cotés de l’unité servent à l’aérer. Pour permettre une utilisation sûre, évitez d’obstruer ces ouvertures et assurez-vous que...

  • Page 13: Instrucciones Importantes De Seguridad

    C2-2450A O PERATION ANUAL 2 INSTRUCCIONES IMPORTANTES DE SEGURIDAD Para sacar el mejor provecho de este producto, léase este manual con detenimiento. Guárdelo en un lugar seguro para poder hacerle referencia en el futuro. Para reducir el riesgo de calambre, no quite la cubierta del aparato.
  • Page 14 C2-2450A O PERATION ANUAL 2.4 Ubicación Este aparato se debe instalar en un lugar seco y fresco, lejos de fuentes de calor excesivas, la vibración, el polvo, la humedad y el frío. 2.5 Ventilación El aparato viene provisto de ranuras y agujeros en los lados para la ventilación.
  • Page 15 C2-2450A O PERATION ANUAL 2 WICHTIGE SICHERHEITSVORSCHRIFTEN Lesen Sie diese Bedienungsanleitung bitte sorgfältig, um Ihr Produkt optimal nützen zu können, und bewahren Sie sie zum späteren Nachschlagen an einem sicheren Ort auf. Entfernen Sie bitte keinesfalls die Abdeckung, um der Gefahr eines Stromschlags vorzubeugen.
  • Page 16 C2-2450A O PERATION ANUAL 2.3 Aufstellung Das Gerät sollte an einem kühlen, trockenen Ort aufgestellt werden, fern von übermäßiger Wärme, Vibrationen, Staub, Feuchtigkeit und Kälte. 2.5 Belüftung Seitliche Schlitze und Öffnungen sorgen für die Belüftung des Geräts. Um die ordnungsgemäße Belüftung zu gewährleisten, dürfen diese Öffnungen nicht verdeckt werden.
  • Page 17 C2-2450A O PERATION ANUAL 2 BELANGRIJKE VEILIGHEIDSINSTRUCTIES Lees deze handleiding zorgvuldig door om het beste uit uw product te halen. Bewaar het op een veilige plek voor raadpleging in de toekomst. Haal nooit het omhulsel van de eenheid af, dit om de kans op een elektrische schok te verminderen.
  • Page 18 C2-2450A O PERATION ANUAL 2.4 Plaatsing Deze eenheid moet geïnstalleerd worden op een koele droge plaats, uit de buurt van bronnen van extreme hitte, vibraties, stof, vocht en kou. 2.5 Ventilatie De sleuven en openingen aan de zijkant van de eenheid zijn voor ventilatie. Zorg er voor dat de eenheid op een goed geventileerde plek geïnstalleerd wordt zodat deze...

  • Page 19: Capability, Device Features And Product Features

    PERATION ANUAL CAPABILITY, DEVICE FEATURES AND PRODUCT FEATURES Device Capabilities ® The C2-2450A uses the proprietary CORIO 2 Engine to perform its functions, being ® ® the second generation of the successful CORIO products. The CORIO technology is a powerful toolset for any application requiring high quality video signal conversion or image manipulation.
  • Page 20 C2-2450A O PERATION ANUAL only applies to the software used to control the unit, but also to the range of resolutions stored inside the unit, the addition of new features, and upgrades to the ® heart of the image processing hardware – the CORIO 2 scaling engine.

  • Page 21: Product Image

    C2-2450A O PERATION ANUAL PRODUCT IMAGE Your C2-2450A product should look like the unit below.

  • Page 22: Front Panel Controls

    C2-2450A O PERATION ANUAL FRONT PANEL CONTROLS The multi-directional switch on the front panel provides the user with a way of navigating the On Screen Display menus (OSD) which are detailed in a later section. The RS232 interface and Ethernet interface also provide further ways of controlling the unit.

  • Page 23: Special Button Combinations And Functions

    C2-2450A O PERATION ANUAL 5.4 Special button combinations and functions In addition to the ability to perform a factory reset and forcing certain output resolutions, other button combinations are available: These button combinations only work when the unit is switched on and active i.e.

  • Page 24: Video Inputs And Outputs

    C2-2450A O PERATION ANUAL VIDEO INPUTS AND OUTPUTS The Edge blend unit has a number of different inputs and outputs as shown below. Figure 1 Edge Blend Unit Rear View Computer inputs PC/HD inputs can accept:  Analog RGBHV  RGsB (sync on green) ...

  • Page 25: Unpacking And Installation

    C2-2450A O PERATION ANUAL UNPACKING AND INSTALLATION Shipping Carton Your unit will arrive double boxed for maximum protection during shipping. You are encouraged to retain both boxes and all packing material so the unit can be returned in the unlikely event that repairs should ever become necessary.
  • Page 26 C2-2450A O PERATION ANUAL Next, take the cable from the PC monitor and connect it to the PC/HD output. Then connect the AC Power Adaptor to a working AC outlet, turn on the PC, monitor and then your unit. Provided you have not changed anything from the Factory Defaults and the monitor will display output 1024x768 @ 60Hz, then your PC output will be seen on the PC monitor –...

  • Page 27: Infra-Red Remote Control

    C2-2450A O PERATION ANUAL INFRA-RED REMOTE CONTROL Your unit is compatible with an optional infra-red remote control as shown below: Resets back to power-on defaults Stores current Selects input: settings 1/2/3=RGB/CV/YC Enables Keyer Enables Lock & Mix mode Fades in/out...

  • Page 28: Menu Layout And Settings Adjustment

    C2-2450A O PERATION ANUAL MENU LAYOUT AND SETTINGS ADJUSTMENT From here on, we’ll be looking at the menu structure and the individual menu items that allow you to take advantage of the power of the unit. You’ll be using the multi-directional switch and the On screen Display (OSD) to view the options and settings available to you.

  • Page 29: Group Names And Descriptions

    C2-2450A O PERATION ANUAL In some cases the functionality is global – meaning it has an effect on the unit as a whole (such as changing the output resolution). In the majority of cases, the function is related to a specific operational area of the unit, detailed by the text in the top line.
  • Page 30 C2-2450A O PERATION ANUAL The top line of the display will show the current output resolution selected. Some units will have a limited number of output resolutions depending on their function (e.g. Down Converters are more limited than Video Scalers).
  • Page 31 C2-2450A O PERATION ANUAL Adjust Blend Output type [RGBHV] This menu item allows you to select the type of signal output your unit will provide. Types of output vary depending on the resolution selected and include various types of component signals YUV or tlYUV (tri-level YUV) and the full range of RGB type signals RGBHV, RGBS and RGsB (Sync on green).
  • Page 32 C2-2450A O PERATION ANUAL Adjust Blend Edge blend [None] This menu item controls which of the 4 edges are blending into the background. In general, only the left or right are blending, but the unit allows you to control the edge blending for any number of edges.

  • Page 33: Aspect Adjust' = 'Pixel

    C2-2450A O PERATION ANUAL Adjust Blend Aspect adjust [Simple] The ‘Aspect adjust’ parameter is used to change the way that scaling of windows is controlled. By default it is set to ‘Pixel which allows full control of window zoom and shrink sizes and positions.

  • Page 34: Aspect Adjust' = 'Advanced

    C2-2450A O PERATION ANUAL 1024 1024 In the example below, ‘In’ has been set to 300,150 as its top-left source co-ordinate, with a size of 750,400. ‘Out’ has been set to 50,50 (i.e. close to the top left) with a size of 250,300.

  • Page 35: Aspect Adjust' = 'Simple

    C2-2450A O PERATION ANUAL 9.3.3 ‘Aspect adjust’ = ‘Simple’ Adjust Blend Zoom level % [ 100] Changing this option, sets the amount of picture magnification you wish to use for the window Source. You are provided with the options to zoom the image from 100% to 1000% (10x zoom).

  • Page 36: Menu Items Common To All Inputs

    C2-2450A O PERATION ANUAL Not all settings are available for all input types, and not all input types listed here may be available on your unit. Also note that many of these adjustments may not show without ‘Advanced menus’ set to On.
  • Page 37 C2-2450A O PERATION ANUAL Source: RGB1 TL pos. adj. [ 0] [ 0] This menu item allows manual positioning of the Top and Left portion of the image. It is used to ensure that the input signal is captured correctly, eliminating any black borders.
  • Page 38 C2-2450A O PERATION ANUAL This option is used to tell the unit what to do if the video source is lost or becomes unstable. Options are: Option Description Show Shows all picture break-up and instabilities. Freeze Freezes the latest frame – un-freezes as soon as the source becomes stable again.

  • Page 39: Dvi Source Menu Items

    C2-2450A O PERATION ANUAL on moving images, however is not suitable for noisy sources where the noise could be mis-interpreted as a diagonal or sloping element of the picture. Source : RGB1 Noise reduction [Off] This menu item allows the user to specify whether the source has noise reduction applied to it.
  • Page 40 C2-2450A O PERATION ANUAL EDID is an information packet retrieved by a PC graphic card over a DVI link from a monitor which tells the graphic card which resolutions are compatible with the monitor. In the case of the your unit, it tells the graphic card what resolutions are compatible with it.

  • Page 41: Rgb Source Menu Items

    C2-2450A O PERATION ANUAL 6. Re-boot (turn off and on again) the CORIO2 unit to ensure that the graphic card uses this new EDID data (you may need to re-boot your computer as well). Using the above, up to 6 custom EDID settings can be stored in the CORIO2 unit, ready for recall later.

  • Page 42: Cv & Yc Source Menu Items

    C2-2450A O PERATION ANUAL Source: RGB1 RGB contr. [100] [100] [100] This menu item lets you adjust the individual RGB or YUV/YPbPr signals, in case one component is at a different contrast to other, or if they all need to be boosted or lowered.

  • Page 43: Still Image Store / Testcard Source Menu Items

    C2-2450A O PERATION ANUAL 9.4.5 Still Image Store / Testcard Source Menu Items Source : TC1 Testcard [ 0] This item is only available for units supporting Still Image Stores (SIS) or Testcards (TC) – which are the same thing, but may be named differently depending on your unit.

  • Page 44: Items Associated With The Adjust Resolutions Group

    C2-2450A O PERATION ANUAL Adjust the last 2 numbers to set the sub-net address (also know as sub-net mask) of your network. Again, if in doubt ask your Network Administrator. Adjust ethernet IP gtwy. [ 10] 1 2 123 Enter your network’s gateway IP address into this menu item. Again, if in doubt ask your Network Administrator.
  • Page 45 C2-2450A O PERATION ANUAL parameters. If circumstances require you to make such a change, please read the following specific notes: 1. Any changes made to this database take effect instantly and are also stored immediately in non-volatile memory. 2. Since this database is used for both input and output image processing, altering a resolution that is used for both (e.g.
  • Page 46 C2-2450A O PERATION ANUAL such as TFT monitors, will display an image with an odd moiré effect – such as soft vertical bands spread evenly across the image. 800 x 600 60 Hz Lines/f [ 628] = 60.317 Hz This menu controls the total number of lines of video present in the image which includes the vertical Sync pulse, the blanking period and the active video.

  • Page 47: Items Associated With The System Group

    C2-2450A O PERATION ANUAL Like the H/V Start adjustment, you must use an oscilloscope when making these adjustments so that you know exactly how many milliseconds or microseconds of pulse width you have created. The numbers shown are relative numbers and not an actual time measurement.
  • Page 48 C2-2450A O PERATION ANUAL Normally, the user will examine the added features of each new software release and determine if an update is worth doing in their particular operation. The greater period of time between the current date, and the date shown for the currently installed software, the greater the likelihood that there are useful changes and improvements present in the new release.
  • Page 49 C2-2450A O PERATION ANUAL System RS232 baud rate [57600] This menu item allows the adjustment of the serial baud rate used for RS-232 communications. The rate can be adjusted to 9600, 19200, 28800, 33600, 38800, 57600 and 115200. (This adjustment is provided for those instances where you wish to use the RS-232 control system for your own purposes.) The default baud...
  • Page 50 C2-2450A O PERATION ANUAL System Firmware updates Indicates the total number of times the firmware has been changed over the life of the unit. It is quite possible for this to be more than 1, as a unit undergoes numerous tests during production.

  • Page 51: Rs232 Port

    C2-2450A O PERATION ANUAL RS232 PORT 10.1 Connection Your unit is fitted with a standard ‘D9’ plug or socket allowing it to be controlled from a computer or other type of terminal or console with a similar interface. Most computers fitted with an RS232 port, known as a ‘COM’ port, will have a ‘D9’ plug on them.

  • Page 52: Rs232 / Ip Control Specification

    C2-2450A O PERATION ANUAL RS232 / IP CONTROL SPECIFICATION PLEASE NOTE: Not all units support RS232 and/or IP (Ethernet) communications – check to see if this feature is present on your unit. This section outlines how to control a unit via an RS232 or Ethernet link (if fitted to your unit), using ASCII-based commands.

  • Page 53: Packet Format

    C2-2450A O PERATION ANUAL The ACK flag will be returned as 0 if the command is invalid for some reason – for example a bad FUNCTION, WINDOW, OUTPUT or PAYLOAD value. An ACK=0 message will be otherwise identical to the one you sent, so you know exactly which message has the error.
  • Page 54 C2-2450A O PERATION ANUAL returned means message was okay. ACK=0 returned means an error was present in the message. Bit 5 = 0 Reserved for future use. Bit 4 = 0 Reserved for future use. Bit 3 = 0 Reserved for future use.

  • Page 55: Function List

    C2-2450A O PERATION ANUAL ASCII-hex byte that is the (check) sum of all previous bytes (excluding the SOP 'F' character). E.g. The command F0400410082000001C8 has the checksum of 04+00+41+00+82+00+00+01=C8, so the complete command to send is F0400410082000001C8. A short-cut for debugging allows the checksum to be replaced by 2 question marks, so in the previous example you could send F0400410082000001?? Instead.
  • Page 56 C2-2450A O PERATION ANUAL Adjust outputs Output enable 0=Blanked, 1=Active Lock source (connector) 0x10 to 0x1F = RGB1 to RGB16 0x30 to 0x3F = CV1 to CV16 0x40 to 0x4F = YC1 to YC16 0x50 to 0x5F = SDI1 to SDI16...
  • Page 57 C2-2450A O PERATION ANUAL 3 = 14:9 Letterbox top 4 = 16:9 Letterbox centre 5 = 16:9 Letterbox top 6 = >16:9 Letterbox centre 7 = 14:9 Full format 8 = 16:9 Full format Take 0->1 = Perform a Preview -> Program transition Audio amp.
  • Page 58 C2-2450A O PERATION ANUAL In (top-left H) In (top-left V) In (H size) In (V size) Out (top-left H) Out (top-left V) Out (H size) Out (V size) Aspect change 0..2 = Normal, Letterbox, Pillarbox Aspect adjust 0..1 = Simple, Advanced Flicker reduction 0..3 = Off, Low, Med, High...
  • Page 59 C2-2450A O PERATION ANUAL E.blnd gamma H 1..150 1=0.01, 150=1.50 E.blnd gamma V 1..150 1=0.01, 150=1.50 E.blnd comp cent 0..99 E.blnd comp side 0..99 Logos (on certain models only) Logo enable 0..1 = Off, On Logo number 0..9 Logo selection H/V out shift (H) 0..100 %...
  • Page 60 C2-2450A O PERATION ANUAL Audio vol 10..FF 0CF -16..15 (-16=Mute) 10..FF 0D1 -15..15 On source loss 10..5F 0A3 0=Show, 1=Freeze, 2=Blue, 3=Black, (was Deglitch) 4=Remove Source stable (read only) 0=Unstable, 1=Stable Input pixel phase 10..5F 091 0..31 RGB input type 10..1F 0C1...
  • Page 61 C2-2450A O PERATION ANUAL Switching fade time 0 (off) to 50 (5.0 seconds) Wipe type 0 = Left -> Right 1 = Right -> Left 2 = Up -> Down 3 = Down -> Up 4 = Diagonal 5 = Diamond Wipe Size 10..2000...

  • Page 62: Examples

    C2-2450A O PERATION ANUAL Resolutions Read only Number of Still Images / Read only Testcards Number of logos Read only Board temp. (deg.C) Read only Air temp. (deg.C) Read only Regulators temp.(deg.C) Read only PLD temp. (deg.C) Read only Fan speed (rpm)

  • Page 63: Reading And Writing Macros

    C2-2450A O PERATION ANUAL ?? CR 000064 70 CR Set baud to 9600 Reply is at 9600 baud 000000 F0 CR 000000 30 CR Set 1A Zoom = 300 00012C F7 CR 00012C 37 CR Set 1A Shrink to 50...

  • Page 64: Writing To A Macro

    C2-2450A O PERATION ANUAL Read number of items currently stored in Preset 2 Returned packet indicates 4 items available to read BB CR 00002 FC CR Read the Function for the first item in the preset / Payload is the Function stored – 86 = Zoom...
  • Page 65 C2-2450A O PERATION ANUAL SOP CMD CHA WIN OUT FUN PAY CS EOP SOP CMD CHA WIN OUT FUN PAY CS EOP Restore 000000 3C CR 0000 00 7C CR Run macro 1 000000 37 CR 0000 00 77 CR...

  • Page 66: Edge-Blending Setup

    C2-2450A O PERATION ANUAL EDGE-BLENDING SETUP 12.1 Introduction Edge-blending is a method whereby two or more video/data projectors are used together with part of their images overlapping, thereby creating a wider (or taller) display more suitable for showing wide-screen video images. The term edge- blending relates to the fact that the overlap needs to be carefully handled to prevent the overlap causing image brightness problems.

  • Page 67: Edge-Blending Requirements

    C2-2450A O PERATION ANUAL S-curves for left and right projectors, with edges blended. S-curves, when properly overlapping, will add together to result in full brightness. 12.2 Edge-blending requirements To obtain the best edge-blending results, you will need: 1. A perfectly flat projection screen. This is vital, or it will not be possible to perfectly align your two projected images with each other.

  • Page 68: Basic Setup Of The Two Projectors

    C2-2450A O PERATION ANUAL 12.3 Basic setup of the two projectors Basic video projector setup showing overlap. The above diagram shows how the two projects should be placed to create a wider than normal image. The amount by which they overlap is very important, as this will also relate to the zooming values to be used for each of the CORIO®2 scaling...

  • Page 69: Initial Setup

    C2-2450A O PERATION ANUAL For use with dual-channel scalers such as the C2-7000 series, connect your video source (e.g. a DVD player or computer) to an input on the C2-7000 unit. It is not necessary to feed two signals – the C2-7000 unit can use the same signal for both outputs.

  • Page 70: Edge-Blending Activation

    C2-2450A O PERATION ANUAL 10% to 20% overlap are usually around 180%. In other words, not quite 2x zooming (since that would give no overlap at all). Figure ‘a’ shows the original image and ‘b’ shows the two zoomed images. Note that the two images are at different ‘Pan’...

  • Page 71: Edge-Blending Guide Lines

    C2-2450A O PERATION ANUAL There is a formula for calculating the edge blend size (E) from the zoom value (Z) and horizontal pixel width of the output (H): E = 2 * H * (1 – Z/200) [pixels] For example, with zoom (Z) at 190%, output resolution of 1024x768 (H=1024), we can calculate E as: E = 2 * 1024 * (1 –...

  • Page 72: Alignment Of Projectors

    C2-2450A O PERATION ANUAL resolution, whilst the green lines indicate the edge of blending. (G marks the green lines, R marks the red, Y marks the yellow, for those reading in black and white.) Outputs 1 and 2 with guide lines shown.
  • Page 73 C2-2450A O PERATION ANUAL Too far apart – you need around 15% overlap, such that the red and green lines overlap. Offset – make sure your projectors are perfectly R R G aligned both horizontally and vertically. Key-stoning – ensure your...

  • Page 74: Gamma Correction

    C2-2450A O PERATION ANUAL Perfect alignment – your red and green vertical lines should overlap to produce yellow ones. 12.10 Gamma correction By now you should have two perfectly aligned projectors, but possibly with a brighter than normal overlap. This is most probably because a projector’s luminance is not perfectly linear and therefore will need to have what’s called...

  • Page 75: Aspect Ratio Adjustment

    C2-2450A O PERATION ANUAL The compensation is needed because most projectors cannot output pure black – there’s always some light ‘leaking’ to the projection screen. Thus when you’re trying to output black, there will be a ‘hot area’ where the two projectors are now overlapping, of twice the projector’s ‘black level’...

  • Page 76: Other Setup Approaches

    C2-2450A O PERATION ANUAL For single-channel units (such as the C2-1000 and C2-2000 series) you can probably only perform locking if RGB1 is available for use (i.e. you are using CV1 or YC1 as your video source). If so, perform the following: 1.
  • Page 77 C2-2450A O PERATION ANUAL E.blnd H 640x480 800x600 1024x768 1280x720 1280x1024 1600x1200 1920x1080i...
  • Page 78 C2-2450A O PERATION ANUAL...

  • Page 79: Edge-Blending Tool

    C2-2450A O PERATION ANUAL EDGE-BLENDING TOOL A powerful utility is available to allow simple setup of the unit; the application is designed to run on Windows XP and Vista. The following guide is designed for a 2x1 configuration, in practice if the scaler is dividing the image as well as providing a blend then up to an 8 x 8 configuration may be possible depending on the input and output resolutions.

  • Page 80: Video Setup

    C2-2450A O PERATION ANUAL Following a successful test the message window will go Green to indicate successful communications During the unit test the software version within each of the unit is read, for reliable operation all the units should all be running the same software.

  • Page 81: Mapping The Scaler To A Screen

    C2-2450A O PERATION ANUAL Figure 5 Video Screen At this stage the scalers are not assigned to any particular screen, this next section allows the assignment of scalers to a specific screen. 13.4 Mapping the scaler to a screen In order to discover which scaler is connected to a screen select a scaler from the list on the left and then press identify.

  • Page 82: Cropping The Image

    C2-2450A O PERATION ANUAL 13.5 Cropping the image Using the application it is also possible to crop the screen imagery, the size setting allows the exact image size that is required for viewing to be selected and the offset is the origin for this image size.

  • Page 83: Further Individual Adjustment

    C2-2450A O PERATION ANUAL Projectors overlapped, but blend width not yet configured Perfect alignment – red and green vertical lines should overlap to produce yellow ones. 13.7 Further individual adjustment Although the Blend Width screen should configure the system it may be necessary, if the projectors are equidistant from each other, to adjust the individual displays.

  • Page 84: Gamma And Black Level Adjustments

    C2-2450A O PERATION ANUAL The “Apply to all” button will apply the current settings to all the units in the system. 13.8 Gamma and Black Level Adjustments By now you should have two perfectly aligned projectors, but possibly with a brighter than normal overlap.
  • Page 85 C2-2450A O PERATION ANUAL The solution is to adjust the ‘Centre’ value to compensate for this centre brightness error. By increasing this value, it will increase the brightness of the non-overlap area. To get this value right, you must first make sure that the units connected to the projectors are outputting black –...

  • Page 86: Windows Control Panel

    C2-2450A O PERATION ANUAL WINDOWS CONTROL PANEL A powerful utility is available for the C2 product range and can be downloaded from our support web site or found on the Product CD (where supplied). To install the application click on the setup file and follow the on screen instructions.

  • Page 87: Connecting To A Unit

    C2-2450A O PERATION ANUAL In the Ethernet section be sure to set the IP address to the same as the address you have set on the unit (units Ethernet menu). The port number used should also reflect the port number on the unit.
  • Page 88 C2-2450A O PERATION ANUAL Figure 15 Detecting a unit Once the application detects and connects to a unit you will be asked if you wish to “synchronize with the unit”, this will read all the settings from the connected unit and update the application.

  • Page 89: Application Menu's

    C2-2450A O PERATION ANUAL 14.3 Application menu’s 14.3.1 File menu Figure 17 File menu Across the top of the application are the toolbar menu options. The first menu item is File within this menu you can Save and Load previous setups into the application, these setups contain all the settings of the unit.

  • Page 90: Tools Menu

    C2-2450A O PERATION ANUAL The Program Buttons menu will program the button assignments into the unit The Program Resolutions menu will program the resolutions into the unit as defined on the resolutions Tab. The Program Settings menu will program all adjustments into the unit 14.3.3 Tools menu...

  • Page 91: Image Loader

    C2-2450A O PERATION ANUAL Figure 21 Scripting button screen Up to 24 buttons/functions can be defined, and each of these buttons/functions can perform multiple actions. Figure 22 Script editor In order to edit or create a script select Script->Edit from the menu, this will then present the script editor as shown above.

  • Page 92: Loading Still Images / Testcards

    C2-2450A O PERATION ANUAL 14.5.1 Loading Still Images / Testcards Figure 23 Image loader To program a Still Image / Testcard into the unit select the ‘Testcards’ tab from the image programmer screen and then press Load Image. You can select JPEG, BMP and GIF images. The image will be loaded and shown on the screen.

  • Page 93: Loading Logos

    C2-2450A O PERATION ANUAL 14.5.2 Loading Logos Figure 24 Logo Loader To program a logo into the unit select the ‘Logos’ tab from the image programmer screen and then press Load Image. You can select JPEG, BMP and GIF images. The image will be loaded and shown on the screen.

  • Page 94: Maximum Image Size - How Large Can My Logo / Still Image / Testcard Be

    C2-2450A O PERATION ANUAL 14.5.3 Maximum Image size – how large can my Logo / Still Image / Testcard The image size for a Logo or Still Image / Testcard is limited by the amount of memory available in the unit; this is approximately 128kbytes of compressed image for a Still Image / Testcard and approximately 32kbytes for a Logo.
  • Page 95 C2-2450A O PERATION ANUAL There are 2 ways to create a resolution using this tool. The easiest, shown on the New resolution tab at the side, allows you to create a new resolution using the minimum information of Horizontal and Vertical size and the desired refresh rate.
  • Page 96 C2-2450A O PERATION ANUAL Figure 27 Add resolution to table Once your new resolution is added, you can program the resolution into the Scaler using the Communications menu and then selecting Program into unit and then selecting Program Resolutions. The application will proceed to program all the resolutions on the list into the scaler.
  • Page 97 C2-2450A O PERATION ANUAL Figure 28 Resolution editor - advanced timings In order to modify an existing resolution simply click on the resolution table at the bottom of the screen and it parameters will be editable within the Timings tab.

  • Page 98: Troubleshooting And Technical Support

    C2-2450A O PERATION ANUAL TROUBLESHOOTING AND TECHNICAL SUPPORT If problems are experienced, please read through the symptom topics below in order to resolve the problem. After doing so, if you still need to, contact Technical Support at http://www.tvone.com/support. Please have the following details of...

  • Page 99: There Is Excessive Flicker On The Output

    C2-2450A O PERATION ANUAL 15.4 There is excessive flicker on the Output. Try using a different Flicker reduction mode. Turning the contrast down and the brightness up on the output device can have a large effect on flicker. Or try adjusting the brightness and contrast of the source input by selecting the Input adjust menu.

  • Page 100: The Rgb Input Is Selected But The Image Is Rolling Or Pink

    C2-2450A O PERATION ANUAL 15.11 The RGB input is selected but the image is rolling or pink. Check the Adjust sources menu and confirm that the input type and sync method is set correctly. (Having YUV input selected, instead of RGBHV often causes this problem).

  • Page 101: Return Procedure

    C2-2450A O PERATION ANUAL RETURN PROCEDURE Before returning your unit for repair, there are several checks you can make yourself to make sure the problem is actually caused by a failure. 16.1 Are you sure there's a fault? Many 'faults' are due to incorrect set-up or use so a simple checklist is provided below to help you identify potential problems.
  • Page 102 C2-2450A O PERATION ANUAL Please clearly state the return number on the outside packaging and on any accompanying documentation. This will greatly speed up processing. IMPORTANT: DO NOT return a unit for warranty repair without first obtaining a Return Authorization Number. No action will be taken on a unit returned in...

  • Page 103: Warranty Policy

    C2-2450A O PERATION ANUAL WARRANTY POLICY LIMITED WARRANTY – With the exceptions noted in the next paragraph, TV One warrants the original purchaser that the equipment it manufactures or sells will be free from defects in materials and workmanship for a period of two years from the date of purchase.

  • Page 104: Connector Pinouts

    C2-2450A O PERATION ANUAL CONNECTOR PINOUTS 18.1 DVI-I connector PIN# SIGNAL PIN# SIGNAL T.M.D.S DATA 2- HOT PLUG DETECT T.M.D.S DATA 2+ T.M.D.S DATA 0- T.M.D.S DATA 2/4 SHIELD T.M.D.S DATA 0+ Not used T.M.D.S DATA 0/5 SHIELD Not used...

  • Page 105: Specifications

    C2-2450A O PERATION ANUAL SPECIFICATIONS 19.1 Computer Input DVI-D (on DVI-I connector) supporting up to 162MHz (1920x1200 @ 60Hz). EDID 1.3 data on DVI-D connector to communicate available resolutions. Analog RGB/YPbPr supporting RGBHV, RGBS, RGsB, YPbPr, auto-terminating into 75 Ohm...

  • Page 106: Regulatory Compliance

    C2-2450A O PERATION ANUAL 19.5 Regulatory Compliance Main unit conforms to FCC, CE, RoHS 19.6 Environmental Operating Temperature 0° to +45° C (+32° to +113° F) Operating Humidity 10% to 85%, Non-condensing Storage Temperature -10° to +70° C (+14° to +158° F) Storage Humidity 10% to 85%, Non-condensing 19.7...

  • Page 107: Contact Information

    C2-2450A O PERATION ANUAL CONTACT INFORMATION Should you have and questions or require assistance with this product in areas not covered by this manual, please contact TV One at the appropriate location shown below: TV One USA TV One Europe...
